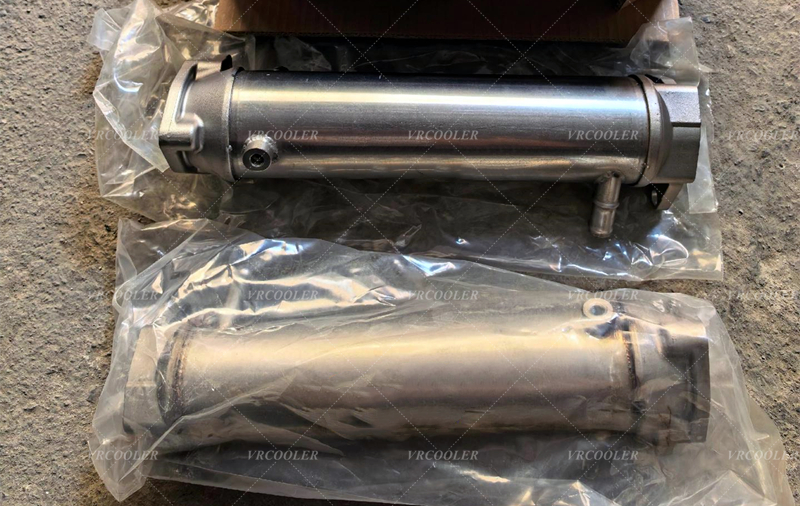

What Causes EGR Cooler Failure?

Main Causes of EGR Cooler Failure on Diesel Generators & Engines

EGR coolers fail mostly from soot clogging, acid corrosion, thermal fatigue, coolant issues, and mechanical vibration. Below breaks down each root cause with symptoms:

Carbon / Soot Clogging (Most Common Failure)

- Hot exhaust carries unburned diesel soot, carbon particles, and oil mist from turbo blow-by.

- Over time, deposits build up inside EGR gas tubes, narrowing or fully blocking gas flow.

- Consequences:

EGR system can’t reduce NOₓ, ECU triggers emission fault codes, engine derates power, higher fuel consumption.

- Aggravating factors: Short running cycles, low-load standby operation, poor fuel quality.

Acid Condensate Corrosion (Leading Cause of Pinhole Leaks)

Diesel fuel contains sulfur. When hot exhaust gas cools inside the EGR cooler, sulfur mixes with water vapor to form sulfuric acid.

- Erosion eats through thin stainless steel tube walls, creating tiny pinholes.

- Coolant leaks into exhaust/intake air circuit.

- Signs: White smoke from exhaust, constant low coolant level, engine overheating.

Worse in: High humidity sites, marine gensets, frequent cool-start operation.

Severe Thermal Shock & Thermal Fatigue Cracking

EGR inlet gas hits 600–780°C, while coolant stays ~80–95°C. Extreme repeated temperature swings stress welds, brazed joints and tube sheets.

- Tiny cracks form at connections, leading to internal cross-leaks (coolant ↔ exhaust gas).

- Short trips, frequent start-stop standby generators accelerate this damage.

Cooling System Malfunctions (Coolant Starvation / Contamination)

1. Low coolant level, blocked radiator, clogged water hoses → insufficient cooling flow to EGR cooler.

Cooler runs overheated, accelerates corrosion and thermal cracking.

2. Degraded, dirty coolant with rust/sludge clogs coolant passages inside the EGR core.

3. Mixing different coolant chemistries creates sediment that blocks flow.

Engine Oil Contamination Entering EGR Circuit

- Worn turbo seals, faulty valve guides, piston blow-by push engine oil into exhaust.

- Oil mixes with soot to form thick carbon sludge that hardens inside EGR tubes, permanent blockage.

- Oil also speeds up internal corrosion of stainless steel surfaces.

Mechanical Vibration Fatigue

Generators, marine engines run continuously with strong vibration from the engine block.

- Loosens tube-to-tube sheet expansion joints and brazed seams.

- Slow micro-leaks develop over thousands of operating hours.

Poor Maintenance Practices

- Skipping periodic EGR cooler back-flushing and carbon cleaning

- Ignoring small coolant leaks, letting acid build up unchecked

- Using cheap low-grade replacement EGR coolers made of thin inferior stainless steel (corrode much faster)

Typical Warning Signs Before Complete EGR Cooler Failure

1. White exhaust smoke (coolant leaking into exhaust)

2. Repeated low coolant reservoir level with no external leaks

3. Engine fault codes related to EGR flow or NOₓ emissions

4. Rising engine operating temperature

5. Visible power loss, higher fuel consumption

6. Sweet coolant smell in exhaust air

Preventative Measures to Extend EGR Cooler Life

1. Use high-quality low-sulfur diesel fuel

2. Follow scheduled cooling system coolant changes & system flushing

3. Perform periodic chemical cleaning of EGR gas side to remove carbon soot

4. Inspect turbo for oil leakage regularly

5. Choose heavy-duty full 316L stainless steel EGR coolers for marine/coastal/humid environments

6. Avoid prolonged light-load idle operation whenever possible
