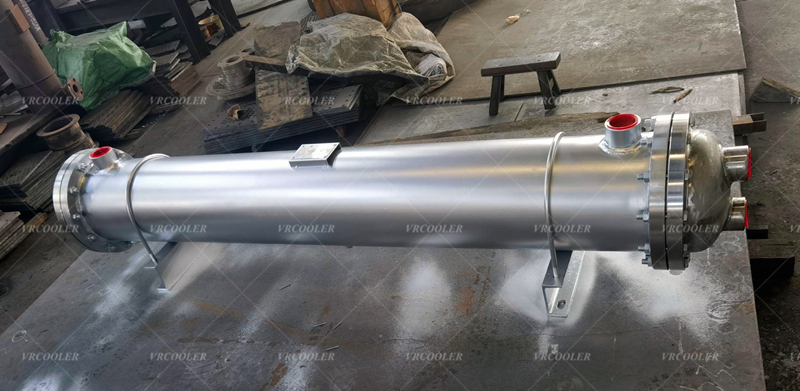

Shell And Tube EGR Cooler Heat Transfer Efficiency

Shell & tube EGR cooler: Hot exhaust gas flows inside tubes; engine glycol coolant circulates on the shell side. It is widely adopted for heavy-duty diesel generators, marine engines and large industrial diesel units.

Heat transfer efficiency (Effectiveness, ε) = Actual heat removed / Maximum theoretically possible heat transfer.

Overall heat transfer coefficient (U) — core design indicator for sizing:

• Clean new shell & tube EGR cooler typical U = 45 ~ 70 W/(m²·K)

• After moderate soot fouling: 25 ~ 40 W/(m²·K)

The exhaust gas side always creates the dominant thermal resistance and limits overall efficiency.

Key Factors Determining Heat Transfer Efficiency

(1) Operating Flow & Temperature Conditions

1. Exhaust gas mass flow rate

   Higher gas velocity enhances turbulence, reduces boundary layer thickness → higher U.

   But excessive flow creates large backpressure, disturbing EGR system control.

2. Coolant flow & inlet temperature

   Lower coolant inlet temperature increases average temperature difference (LMTD), boosting heat rejection.

3. Temperature difference & condensation risk

   When exhaust gas surface temperature falls below dew point, sulfuric acid condensate forms. Condensation temporarily improves heat transfer, yet accelerates corrosion and soot adhesion.

(2) Structural Design Parameters

✅ Tube inner diameter

Smaller tubes improve gas-side heat transfer; too narrow tubes suffer rapid soot blockage. Industrial shell & tube EGR usually adopts 6–10 mm inner diameter.

✅ Tube length & arrangement

Counter-flow layout delivers higher efficiency than parallel flow.

✅ Baffle design on coolant shell side

Helical baffles improve coolant turbulence; segmental baffles balance efficiency and pressure drop.

✅ Surface enhancement (twisted tape / internal turbulators)

Inserted turbulators inside tubes can lift efficiency by 15–30%, at the cost of higher exhaust pressure drop.

(3) Fouling — The Biggest Cause of Efficiency Degradation (Field #1 Issue)

Exhaust contains soot, unburnt HC and sulfur compounds:

• Dry soot layer: adds thermal resistance; efficiency drops 20–40% over thousands of running hours

• Sticky hydrocarbon + wet acid condensate: forms hard sludge, efficiency loss >50% and may fully block tubes

Unlike aftercoolers, EGR coolers cannot avoid gas-side fouling; maintainable design is essential.

(4) Material & Wall Thermal Resistance

All shell & tube EGR coolers use 304 / 316L stainless steel:

Stainless steel thermal conductivity is lower than copper, but mandatory to resist acid condensate corrosion. Wall thickness should be minimized within mechanical strength limits to reduce conductive resistance.
