For businesses like supermarkets, restaurants, catering kitchens, and convenience stores, installing a walk-in cooler or freezer is a critical step to preserving food safety and extending shelf life. However, traditional refrigeration systems often come with complex, time-consuming installation processes—until the plug-and-play monoblock unit revolutionized the industry. This guide explains how monoblock refrigeration units simplify walk-in cooler installation, saving time, labor, and costs for commercial operations.
A plug-and-play monoblock unit is an all-in-one refrigeration solution that integrates every essential component—compressor, condenser, evaporator, fan, expansion valve, and electronic control system—into a single, pre-assembled cabinet. Unlike traditional split systems, which require on-site assembly of separate parts and refrigerant piping, monoblock units are factory-tested, pre-charged with refrigerant, and ready to use right out of the box. The “plug-and-play” label means no specialized technical expertise is needed for basic installation: just mount the unit, connect it to power, and start cooling.
Traditional walk-in cooler installation can take days (or even weeks) and involves multiple steps: hiring certified HVAC technicians, running refrigerant lines between indoor and outdoor units, soldering pipes, testing for leaks, charging refrigerant, and calibrating controls. Monoblock units eliminate most of these hurdles, streamlining the process into 4 simple steps—with installation often completed in just 1–2 days.
The biggest time-saver with monoblock units is the elimination of on-site refrigerant line installation. Traditional split systems require technicians to measure, cut, bend, and solder copper pipes between the indoor evaporator and outdoor condenser— a labor-intensive process that also increases the risk of refrigerant leaks. Monoblock units have all components sealed in one cabinet, with refrigerant pre-charged at the factory. This removes the need for on-site piping, soldering, or leak testing, cutting installation time by up to 70%.

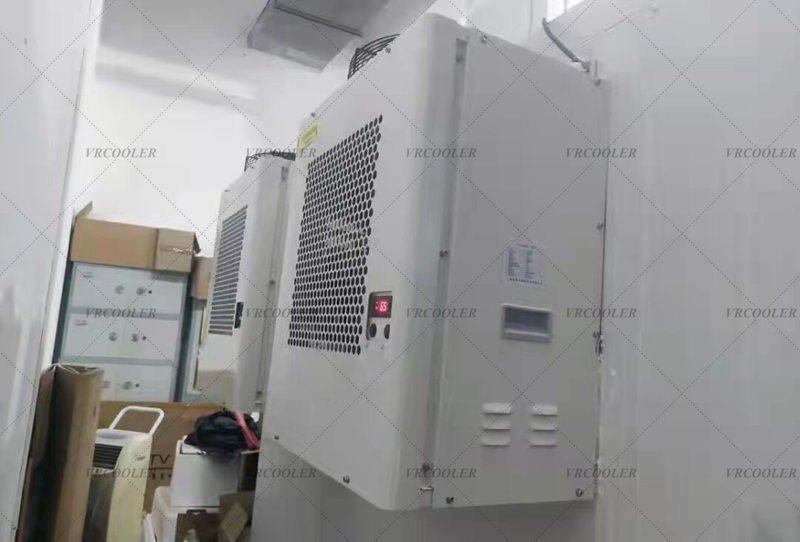

Monoblock units are designed for easy mounting, with two common options to fit any commercial space: rooftop or through-the-wall. Rooftop units mount directly to the walk-in cooler’s roof (with minimal reinforcement needed for most models), while through-the-wall units slide into a pre-cut opening in an exterior wall. Neither option requires major structural modifications to your building—unlike split systems, which may need dedicated outdoor space or wall penetrations for piping.
Once mounted, monoblock units only require a standard electrical connection to start working. Most models are compatible with common commercial power supplies (220V/1Ph or 380V/3Ph, customizable), and the control system is pre-programmed for typical walk-in cooler temperatures (0–5°C for cooling, -18°C for freezing). There’s no need for complex wiring or calibration—just plug in the unit, set your desired temperature, and it’s ready to cool.
Monoblock units are fully tested at the factory before shipping, ensuring all components work together seamlessly. This eliminates the risk of on-site assembly errors (e.g., misaligned parts, incorrect refrigerant charge) that can cause delays or performance issues with traditional systems. With a monoblock unit, you can trust that the system will work reliably from the moment it’s plugged in, reducing downtime and costly repairs.
While easy installation is the biggest draw, plug-and-play monoblock units offer additional advantages that make them ideal for commercial walk-in coolers:
Space-Saving Design: Rooftop models free up interior and wall space, maximizing storage capacity in small walk-in coolers. Through-the-wall units require minimal wall space and no outdoor equipment footprint.
Low Maintenance: Integrated components mean fewer parts to inspect or repair. Most units come with self-diagnostic controls and automatic defrost (electric or hot gas), reducing maintenance time and costs.
Cost-Effective: Reduced labor costs (from faster installation) and no need for additional piping or parts make monoblock units more affordable upfront than split systems. They also operate efficiently, lowering long-term energy bills.
Flexibility: Available in a range of sizes (3HP to 30HP+) and temperature ranges, monoblock units work for small restaurant walk-ins, large supermarket coolers, and everything in between. They’re also easy to relocate if your business expands or moves.
Monoblock units are especially ideal for:
Small to medium-sized businesses (restaurants, cafes, convenience stores) with limited installation space and budget.
Businesses retrofitting an existing walk-in cooler (no need to modify the building for split-system piping).
Operations that need fast installation to avoid downtime (e.g., new restaurants opening, grocery stores expanding).
Businesses without access to specialized HVAC technicians (simple plug-and-play setup requires minimal expertise).
For commercial walk-in coolers, plug-and-play monoblock units eliminate the hassle, time, and cost of traditional refrigeration installation. By integrating all components into a pre-tested, pre-charged cabinet, they turn a complex project into a simple, 1–2 day process—allowing businesses to focus on what matters most: serving customers and preserving food quality. Whether you’re installing a new walk-in cooler or upgrading an existing one, a monoblock unit is the most efficient, convenient, and cost-effective solution for plug-and-play cold room refrigeration.
