How does the tube fin radiator work in a driver cooling system?

A tube-fin radiator is a common type of heat exchanger used in driver or vehicle cooling systems, especially for engines, motors, or power electronics. Let’s break down how it works step by step, focusing on its role in cooling a driver (like an electric motor driver, inverter, or engine control unit).

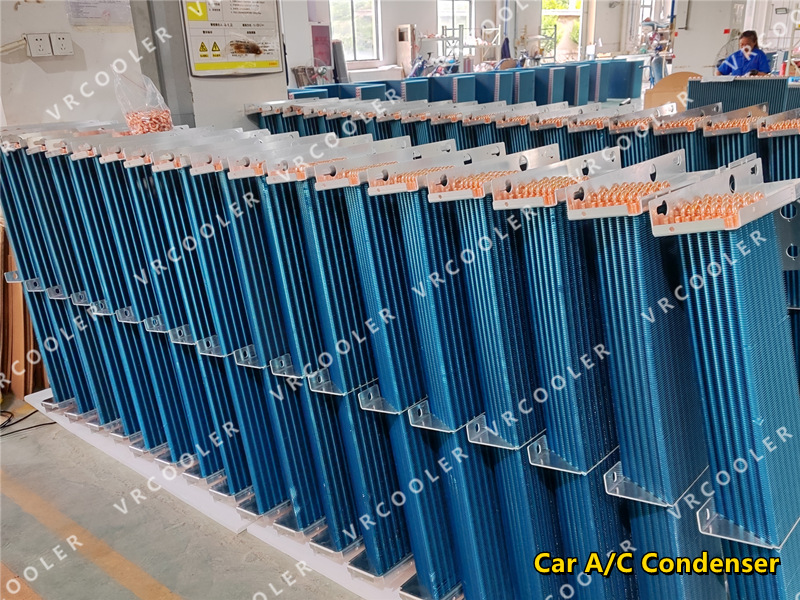

1. Structure of a Tube-Fin Radiator

A tube-fin radiator is made of:

• Tubes: Usually copper, aluminum, or steel, carrying the coolant (water, glycol, or oil).

• Fins: Thin sheets of metal attached to the tubes to increase surface area for heat transfer.

• Headers or manifolds: Direct the coolant into multiple tubes.

The coolant flows inside the tubes, and air passes over the fins on the outside. This design greatly increases the heat transfer area without significantly increasing the size.

2. How Heat Transfer Happens

1. Heat Generation: The driver or motor produces heat during operation.

2. Coolant Flow: Coolant circulates through the tubes of the radiator, absorbing heat from the driver’s hot components.

3. Air Cooling: Air, usually forced by a fan or by vehicle movement, flows across the fins. The fins transfer the heat from the tubes to the air efficiently.

4. Heat Dissipation: The heat carried by the coolant is expelled to the atmosphere, lowering the coolant temperature.

5. Recirculation: The cooled fluid returns to the driver or motor, maintaining an optimal operating temperature.

3. Why Tube-Fin Radiators Are Used in Driver Cooling

• High Efficiency: The fins increase surface area, allowing more heat to dissipate with less coolant flow.

• Compact Size: More heat transfer in a small volume — ideal for vehicles or tight electronics enclosures.

• Flexibility: Can handle various coolant types (water, glycol, dielectric fluids) and flow rates.

• Durability: Aluminum and copper designs resist corrosion and thermal stress.

4. Typical Cooling System Integration

In a driver or motor cooling system:

1. Coolant Pump circulates fluid through the driver or motor.

2. Tube-Fin Radiator receives the hot fluid and transfers the heat to ambient air.

3. Thermostat (optional) regulates coolant flow to maintain stable temperature.

4. Fan ensures airflow over the radiator, especially when the vehicle is stationary or moving slowly.

A tube-fin radiator in a driver cooling system acts as the intermediary between the hot driver/motor and the surrounding air. The coolant absorbs heat from the driver, and the tube-fin structure efficiently releases that heat to the air, preventing overheating and ensuring optimal performance.
