A steam-to-air heat exchanger in food drying is a device that transfers heat from steam to air, which is then used as the drying medium for food products. Here’s a detailed breakdown of how it works and why it’s used in the food industry:
Steam carries latent heat due to its phase change from water to vapor.
In the heat exchanger, steam flows through tubes or coils, while air flows over or around these tubes.
Heat from the steam is transferred to the air via conduction and convection.
The heated air is then directed into a drying chamber where it removes moisture from the food.

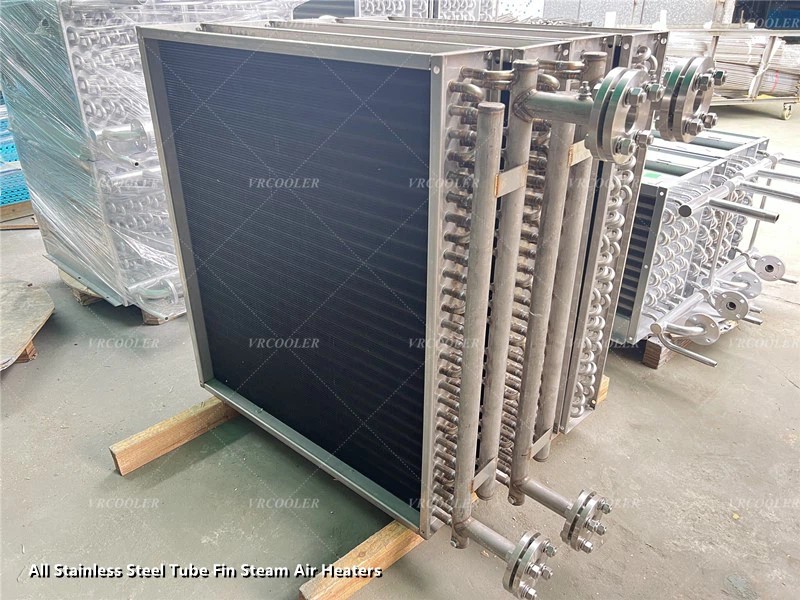

Typical steam-to-air heat exchangers for food drying include:
Steam side: Stainless steel or copper tubes where saturated or superheated steam flows.
Air side: Fins or extended surfaces to maximize heat transfer area.
Fans or blowers: To push or pull air through the heat exchanger.
Insulation and casing: To prevent heat loss and maintain hygiene standards.
Steam enters the exchanger at controlled pressure and temperature.
Air passes over or through the heat exchanger, picking up heat from the steam coils.
Air temperature rises, often to 60–120 °C depending on the food product.
Hot air is directed into the drying chamber, contacting the food surface.
Moisture evaporates from the food, carried away by the air stream.
Condensed steam is drained and returned to the boiler or reused.
Precise temperature control: Steam temperature can be regulated to avoid over-drying or burning.
Uniform heating: Properly designed exchangers provide even air temperature distribution.
Hygienic design: Stainless steel construction resists corrosion and is easy to clean.
Energy efficiency: Uses steam (often already generated in the plant) as the heat source, minimizing additional fuel consumption.
Drying fruits, vegetables, grains, and spices.
Dehydrating meat or fish in controlled environments.
Any process where indirect heating is required to avoid contamination from combustion gases.
