How To Increase Bearing Oil Cooler Capacity

Optimize cooling water side (fastest practical options onsite)

1. Raise cooling‑water flow rate

Increase pump output, open valve fully, clean water‑side scale / debris. Higher water flow reduces average water temperature, improves heat transfer.

- Limit: Do not exceed tube allowable velocity. For Cu‑Ni tubes, excessive velocity causes erosion‑corrosion.

2. Lower cooling water inlet temperature

If possible, adjust upstream cooling tower / river water intake point to get colder inlet water. Even 2‑3 °C drop brings obvious capacity gain.

3. Remove water‑side fouling & scale

Scale inside tubes heavily cuts performance. Perform chemical circulation cleaning. For immersed finned coil, water‑side scale cannot be mechanically brushed; chemical cleaning is the only way.

Optimize oil‑side conditions

1. Improve oil flow & oil circulation inside oil tank / cooler

- For hydro immersed coil cooler: Optimize oil agitation / oil stirring effect. Install or adjust oil baffle plates, guide hot bearing oil to flow across fin surface, avoid stagnant hot‑oil dead zones around coil bundle. Many old hydro stations suffer poor capacity because hot oil cannot reach coil fins.

- For shell‑and‑tube: Check baffles, remove sludge deposits on oil side.

2. Keep proper oil viscosity

Over‑cold oil raises viscosity and reduces convection heat transfer. Maintain oil operating temperature within OEM recommended range.

Modify / upgrade heat‑exchange hardware (when site tuning cannot meet demand)

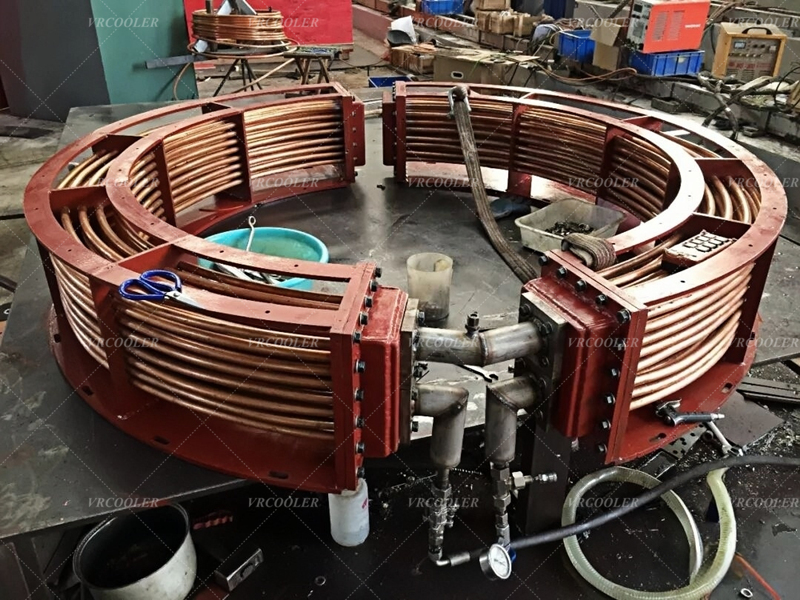

For immersed circular finned‑coil bearing oil cooler (hydro‑generator)

1. Increase total heat‑transfer area

- Add more finned tube loops; increase coil height / number of stacked coil rings (must have available free space inside bearing oil tank).

- Change to higher‑density fin tube: higher fins per meter, same footprint but larger area.

> Constraint: Physical space inside existing bearing oil tank is hard limit; cannot exceed tank inner dimension.

2. Upgrade tube material for higher heat‑transfer

Replace carbon‑steel tubes with copper or Cu‑Ni finned tubes, better thermal conductivity.

3. Increase coil submersion depth: ensure full coil bundle stays completely submerged under oil level, partial submersion drastically cuts cooling capacity.

For shell‑tube bearing oil cooler (off‑platform / turbine)

1. Increase tube quantity / tube length; adopt enhanced fin/tube.

2. Change baffle arrangement to raise oil turbulence.

Common wrong modifications to avoid

1. Simply boost water velocity too high → Cu‑Ni / copper tube erosion‑corrosion, tube leakage risk (critical for hydro immersed coil: water leaks into lube oil, oil emulsification, destroy thrust pads).

2. Add more coil rings ignoring tank space, interfere with bearing assembly maintenance.

3. Reduce oil level to force faster oil flow → partial exposure of coil bundle, air gap kills cooling performance.

Quick troubleshooting checklist (field‑oriented)

- Is coil bundle fully submerged under oil?

- Water side scaled / clogged? Measure pressure difference across water circuit.

- Any hot‑oil dead zone around coil? Need baffles to guide oil flow over fins.

- Actual water inlet temperature vs design value.

- Actual water flow rate vs original design flow.
