How Rear Door Heat Exchangers (RDHx) Support High-Density Rack Cooling

1. Core Mechanism: Close-Coupled Heat Capture at Heat Source

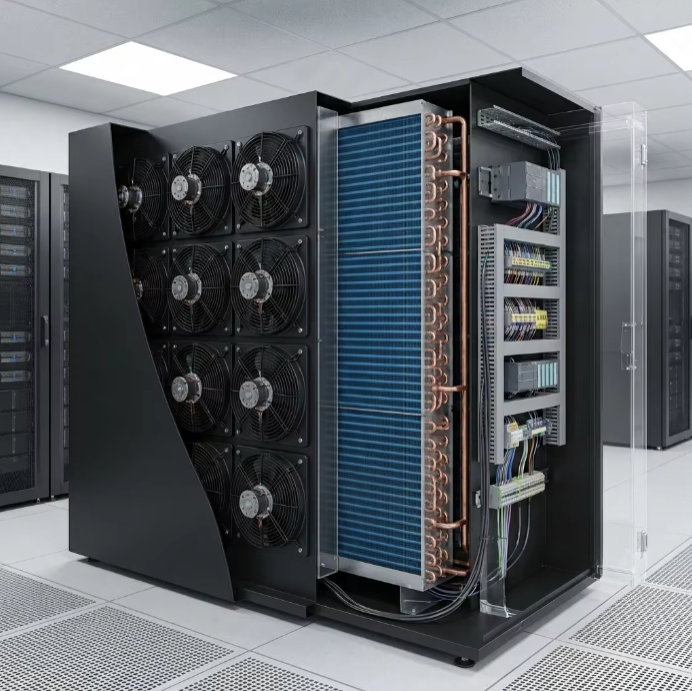

RDHx replaces standard rack rear doors with air-to-liquid finned coil heat exchangers, positioned directly in the full path of server hot exhaust air.

Hot air ejected by CPU/GPU servers flows entirely through the liquid coil before escaping into the data center white space.

Chilled water inside copper coils absorbs massive sensible heat via liquid’s far higher thermal conductivity than air.

Air exiting RDHx returns to the room at near-ambient temperature, eliminating hot air recirculation to rack intakes — the root cause of thermal throttling in high-density racks.

Passive vs Active RDHx for High Density

Passive RDHx: Relies on server internal fans; supports up to 20kW/rack for mild high density.

Active RDHx: Built-in variable-speed EC fans boost airflow through coils; handles 30–85kW per rack, matching AI GPU, HPC and high-compute rack loads that standard room air cooling (CRAC/CRAH, max 15–20kW/rack) cannot support.

2. Break Through Traditional Air-Cooling Density Limits

Conventional raised-floor air cooling hits a hard thermal ceiling at ~15–20kW per rack due to limited airflow capacity and hot aisle contamination.

RDHx raises single rack cooling capacity 3–4x, reliably supporting AI clusters, GPU farms and high-performance compute racks at 30–80kW+ power draw.

Eliminates mandatory hot/cold aisle containment, wide cooling aisles and complex underfloor airflow ducting — enabling more servers to be packed into the same data center floor area (compute density up to 4× higher).

Prevents rack inlet temperature spikes even under full GPU peak load, stabilizing inlet air within ASHRAE’s 18–27°C safe operating window and avoiding hardware thermal downclocking or shutdowns.

3. Eradicate Rack-Level Hot Spots

High-density racks suffer uneven heat distribution: top GPUs and high-power CPUs generate localized overheating.

Full-height vertical coil of RDHx covers the entire rack exhaust plane, capturing heat evenly across all U-slots.

Modulating water flow valves dynamically adjust cooling capacity based on real-time exhaust temperature, matching variable workload heat output.

No residual hot air pooling behind racks; cross-rack thermal interference is fully neutralized, critical for densely populated adjacent GPU racks.

4. Dramatically Reduce Room HVAC Load & Improve Energy Efficiency

RDHx removes nearly all rack heat at the rack boundary, slashing thermal burden on facility CRAC/CRAH units:

Room air conditioning load cut by 60–90%; many deployments can downsize or partially shut down central air handlers.

Compatible with warm chilled water supply (16–22°C) vs traditional 6–12°C cold water for room AC. Higher water temperatures unlock year-round free cooling via cooling towers/dry coolers, cutting chiller power consumption and lowering overall data center PUE by 0.2–0.5.

Lower fan power consumption: Server fans run at reduced RPM with no backpressure from recirculated hot air; RDHx EC fans consume far less power than large room AHUs for equivalent heat rejection.

5. Flexible Retrofit & Scalable High-Density Deployment

No major data center infrastructure overhaul required to upgrade existing racks to high-density AI hardware:

Zero extra floor footprint: RDHx occupies only rear door space, no in-row or overhead cooling units taking rack row space.

Drop-in rack compatibility: Fits standard 42U/48U/52U server racks; incremental rollout — equip high-power GPU racks first without reworking the whole data center.

Works with standard air-cooled servers: No modification to CPU/GPU hardware, unlike direct cold-plate liquid cooling which requires customized server chassis.

Modular cooling distribution units (CDUs) serve batches of RDHx; expand water loop capacity as more high-density racks are added.

6. Safe, Reliable Operation for Continuous High-Load Running

Closed-loop water circuit with integrated leak detection and automatic shut-off valves; minimal risk of water contact with IT hardware compared to immersion or direct cold plate cooling.

N+1 redundant fans on active RDHx; single fan failure does not collapse full rack cooling during 24/7 AI training workloads.

Low maintenance fin coils with easy access for dust cleaning, stable heat transfer efficiency over multi-year continuous high-density operation.
