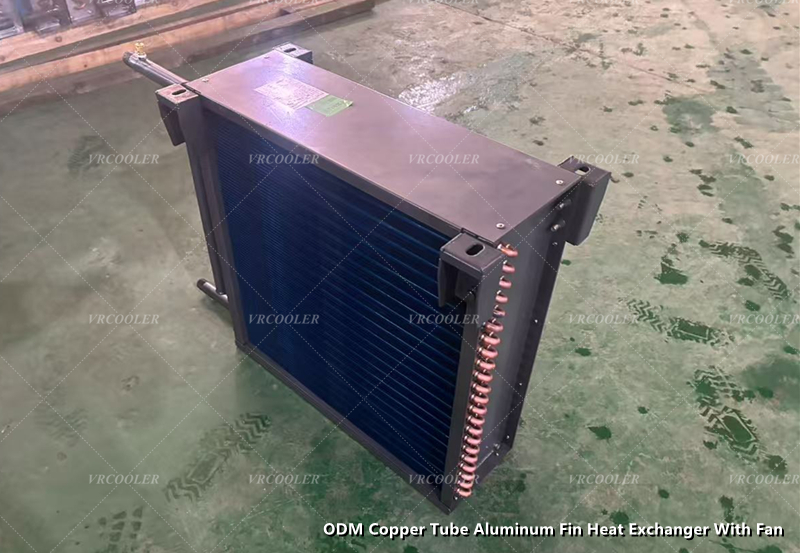

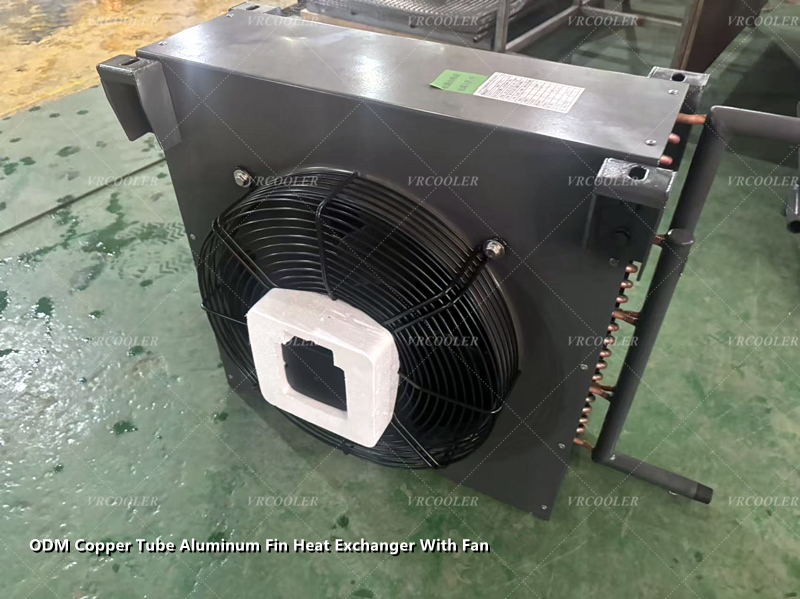

ODM Copper Tube Aluminum Fin Heat Exchanger With Fan. Optimized with integrated axial fan design, this forced convection heat exchanger is purpose-built for continuous cooling, heating and heat recovery of mild mild corrosive industrial exhaust gas, humhumid flue gas, salty ambientambient air and conventional conventional chemical process gas, solving low heat dissipation efficiency of natural convection exchangers in enclosed workshop working conditions.
Application Cases of CST Copper Tube Aluminum Fin Fan Heat Exchanger
All below cases adopt epoxy-coated aluminum fins + seamless copper tube structure with integrated anti-corrosion fan, running stably under mild corrosive environments, verified by long-term site operation data.
1. Coastal Food Processing Plant Exhaust Cooling
Project Background: Southeast coastal seafood processing workshop, high humidity + salt fog corrosive air, need continuous exhaust cooling for production equipment.
Project Outcome: Custom 2-fan copper tube aluminum fin exchanger installed, 24/7 continuous operation, no fin rust or tube corrosion after 2 years operation, 22% lower fan energy consumption than stainless steel tube models.
2. Small Pharmaceutical Workshop Organic Waste Gas Cooling
Project Background: Daily pharmaceutical preparation workshop, low-concentration volatile organic waste gas, non-strong acid corrosive medium.
Project Outcome: Plug-and-play single-fan heat exchanger applied, fast cooling process waste gas, fully separated airflow, no medium leakage, easy weekly water washing maintenance, cut workshop exhaust temperature from 52℃ to 29℃ steadily.
3. Printing & Dyeing Factory Weak Alkaline Flue Gas Recovery
Project Background: Textile printing workshop weak alkaline humid exhaust gas, need waste heat recovery and gas cooling.
Project Outcome: Epoxy coated fin customized model adopted, anti-alkali corrosion protection, heat recovery efficiency reaches 78%, effectively recycle residual heat for workshop preheating, reduce boiler operating cost.
4. Commercial Walk-in Cold Storage Condensing System
Project Background: Supermarket cold storage refrigeration condensing, humid and moldy indoor air environment.
Project Outcome: Compact fan-type copper fin exchanger replaces old aluminum coil condenser, improve condensing efficiency, compressor operating rate reduced from 92% to 67%, extend refrigeration unit service life.
5. Laboratory Mild Chemical Vapor Cooling
Project Background: University chemistry lab low-concentration acid vapor exhaust cooling, noise-restricted indoor space.
Project Outcome: Low-noise IP54 anti-corrosion fan matched model, silent forced heat dissipation, copper tube high-efficiency heat transfer, no cross-contamination of experimental gas, meet indoor environmental noise standard.
6. Light Industrial Workshop Circulating Water Cooling
Project Background: Electronics factory plating workshop mild chloride circulating water cooling.
Project Outcome: Vertical mounted multi-fan copper tube exchanger, good chloride resistance, anti-galvanic corrosion design, 12+ years service life under daily cyclic cooling working condition.
