Key Components of AHU for Cannabis Cultivation Rooms

Cannabis requires ultra-stable temperature, humidity, CO₂, sterile air, and precise air circulation to avoid mold, powdery mildew, bud rot, and maximize terpene/yield. The cannabis-specific AHU integrates dedicated modules different from standard commercial air handlers.

Below breaks down every critical component and its cultivation purpose:

1. Air Circulation & Fan Assembly

(1) Variable Speed Centrifugal Supply Fan

Function: Deliver uniform airflow across grow racks; maintain consistent air velocity (0.3–0.8 m/s around canopy to prevent stagnant microclimate).

Requirement: EC variable-speed motor, static pressure matched to duct + filter resistance; soft start to avoid shock airflow stressing plants.

(2) Return Air Fan / Mixing Section Blower

Recirculate majority indoor air (80–95% return air mixed with small portion fresh air) to save cooling/heating energy.

(3) Ventilation Fresh Air Damper (Modulating Motorized)

Mix fresh outdoor air with return air to control indoor CO₂ levels and exhaust excess humidity/heat.

Fully interlocked with CO₂ sensors: auto-open when CO₂ exceeds target, auto-close to retain conditioned air at night.

(4) Exhaust Air Damper (Linked to Fresh Air Damper)

Balanced pressure control: keep cultivation room slight positive pressure to block unfiltered outdoor mold/spores/insects from infiltrating.

2. Temperature Control Core

(1) Direct Expansion Cooling Coil (Finned Evaporator Coil)

High-density hydrophilic aluminum fins; dual-purpose: sensible cooling (lower air temp) + latent dehumidification (remove water vapor from air).

Critical: Oversized coil surface area, cannabis rooms generate massive latent heat from transpiration.

(2) Heat Pump Reheat Coil / Electric Reheat

After dehumidification, cold air must be reheated to setpoint temperature (critical for flower stage, cannot blast cold air directly onto buds).

Options: Hot water coil (energy-saving for large facilities), electric heating tube (small rooms), heat pump reverse cycle reheat.

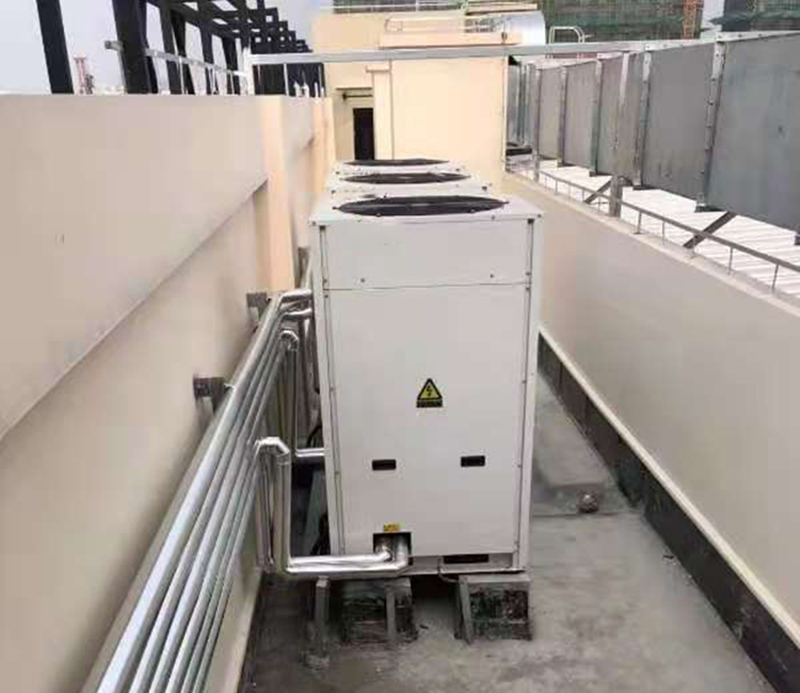

(3) Condensing Unit (Outdoor Split Unit / Water-Cooled Condenser)

Matched cooling capacity; low ambient heating function for winter cultivation rooms. Water-cooled condensers preferred for multi-room commercial grows for stable heat rejection.

3. Precision Humidity Control Module

Humidity is the highest failure risk for cannabis (mold risk above 65% RH in flower phase).

(1) Dehumidification System

Primary method: cold coil condensation; secondary optional built-in desiccant wheel for ultra-low RH demands (late flower stage 40–50%RH).

(2) Industrial Humidifier Section (Built-in AHU compartment)

Two mainstream types:

Ultrasonic humidifier: fine mist, low energy, for vegetative rooms (60–70% RH).

High-pressure fogging / electrode steam humidifier: sterile, no mineral residue, ideal for flowering rooms.

Equipped with water filtration and drain overflow protection to avoid standing water inside AHU.

(3) Condensate Drain Pan with Anti-Mold Coating

All condensed moisture collected; slope design + overflow sensor alarm to prevent water leakage and microbial breeding inside unit.

4. Multi-Stage Filtration System (Non-Negotiable for Contamination Control)

Layered filtration blocks mold spores, pollen, pest eggs, dust, outdoor pollutants, cross-room odor transfer:

G4 Primary Pre-filter: Trap large dust, plant debris, insect fragments; extend service life of high-grade filters behind.

F8 Medium Efficiency Filter: Capture fine organic particles, mold hyphae.

HEPA H13/H14 Filter: Sterile-grade, removes 99.97% of 0.3μm airborne pathogens, critical for clone/seedling rooms and flower rooms.

Activated Carbon Filter Compartment (Built-in AHU or Duct Mounted)

Adsorb terpenes and cannabis odor before air exhaust, meet local environmental emission regulations.

Must be installed downstream before exhaust damper, prevent odor leakage.

5. CO₂ Regulation Subsystem

(1) Motorized Fresh Air Damper (Primary CO₂ Control)

Dilute high CO₂ from plant respiration during dark period; bring in fresh atmospheric CO₂ (~400ppm) during light period to boost photosynthesis.

(2) Optional CO₂ Injection Port & Distribution Manifold

For sealed high-yield grow rooms: liquid CO₂ tank solenoid valve integrated with AHU supply duct, evenly distribute CO₂ enriched air to canopy.

(3) High-Precision CO₂ Transmitter Sensor

Target setpoints:

Veg stage: 1000–1400 ppm

Flower stage: 800–1200 ppm

Dark period: auto ventilate down to 500–600 ppm

6. Smart Sensing & PLC Control System (Brain of Cannabis AHU)

All sensors hardwired to a dedicated grow-focused PLC controller with HMI touch screen, remote cloud monitoring (phone/PC):

Temp & RH Transmitters (4–20mA high precision ±0.3°C / ±2%RH)

Installed at supply air duct, return air duct, and multiple canopy height points to eliminate temperature/humidity stratification.

CO₂ Sensors

Differential Pressure Gauges for Filters

Alarm reminder when filters clog (rising pressure drop), avoid airflow reduction and contamination risk.

Dew Point Sensor

Prevent surface condensation on plants and rack surfaces (core anti-mold protection).

Full Function Interlock Logic Pre-Programmed for Cannabis Cycles

Auto-switch Veg / Flower / Dark mode; interlock safety protection:

High humidity alarm auto-increase dehumidify + ventilation

Over-temperature auto boost cooling and fresh air

Low CO₂ auto open fresh air or activate CO₂ injection

Filter blockage fault alarm

Water overflow, compressor high/low pressure protection

Remote alert via SMS/APP for equipment failure

7. Auxiliary Structural & Anti-Microbial Components

Internal AHU Casing: Galvanized Steel with Epoxy Anti-Corrosion Coating

High humidity inside unit accelerates rust; coating prevents metal corrosion and microbial growth.

UV-C Germicidal Lamps (Installed inside return air compartment)

Kill airborne mold spores, bacteria, and mildew circulating inside the AHU, reduce cross-contamination between growth cycles.

Air Baffles & Perforated Supply Duct Accessories

Eliminate airflow dead zones at canopy corners, ensure uniform climate across all cultivation racks.

Thermal Insulation (Closed-cell PU foam on all internal walls)

Prevent external heat infiltration and surface condensation on AHU shell.
