How Does A Water Steam Separator Work in A Power Plant?

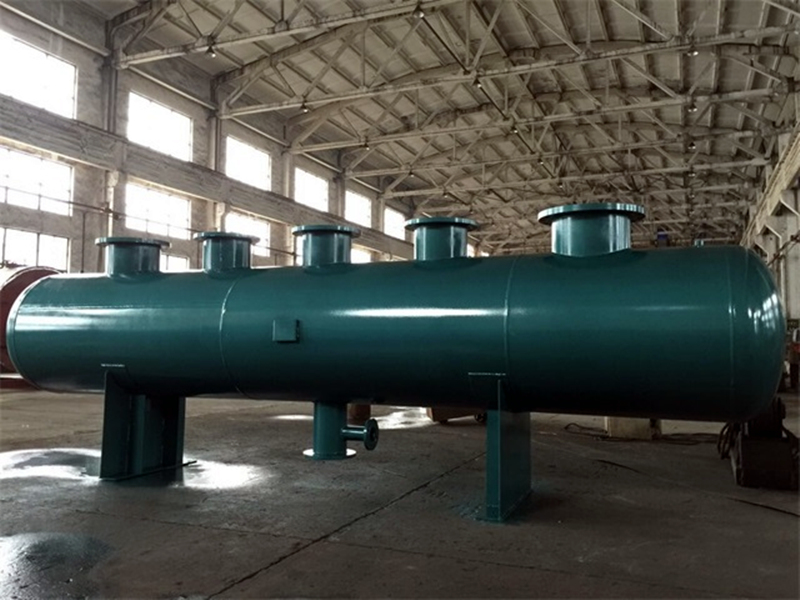

In power plants, water steam separators are integral to maintaining the efficiency of steam turbines and boiler cycles. By combining centrifugal, impingement, and filtration techniques, they remove moisture to prevent equipment damage, optimize energy transfer, and ensure the reliability of power generation. Their design prioritizes high-pressure tolerance, minimal energy loss, and efficient drainage, making them essential for both conventional (coal, gas) and nuclear power systems.

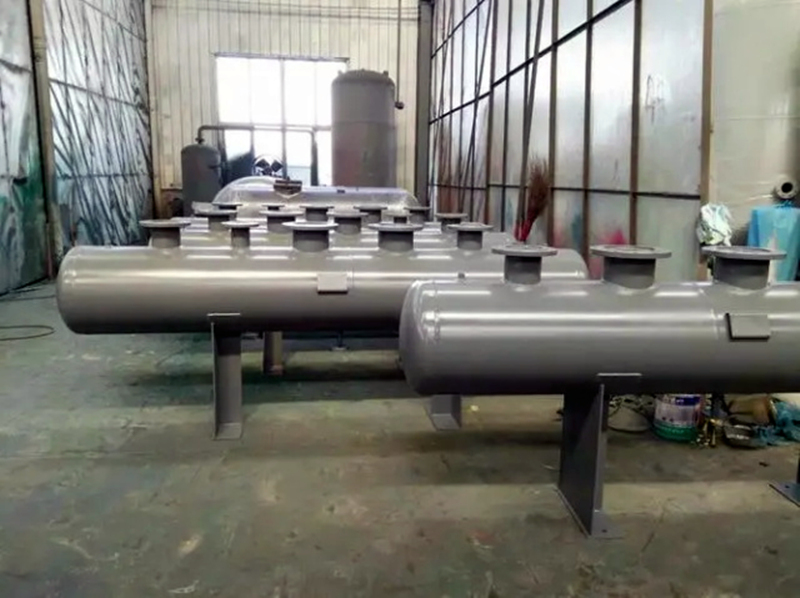

Power plant steam separators are typically installed in two key locations:

Between Boiler Stages (Reheaters or Superheaters): To remove moisture formed during steam generation, ensuring high-quality steam enters the turbine.

At Turbine Inlets or Inter-Stages: To prevent water droplets from eroding turbine blades, especially in high-pressure and high-temperature systems.

Condensate Recovery Systems: To separate steam from condensate water for recycling, improving water and energy efficiency.

Power plant separators often combine multiple separation techniques to handle high-pressure, high-velocity steam flows. The primary mechanisms include:

a. Centrifugal Separation (Cyclonic Action)

Design:

Steam enters a cylindrical chamber with spiral vanes or a tangential inlet, creating a swirling motion (centrifugal force).

Heavier water droplets are thrown to the chamber walls, where they condense and drain, while dry steam exits through the center.

Example Application:

High-pressure steam turbines, where rapid separation of large water droplets is critical to prevent blade damage.

b. Impingement Separation (Baffle or Vane Designs)

Design:

Steam flows through a series of angled baffles, vanes, or perforated plates.

Water droplets collide with these surfaces, lose momentum, and condense into larger droplets that drain via gravity.

Example Application:

Reheater outlets in boilers, where steam velocity is reduced to allow efficient moisture separation.

c. Gravity Separation (Combined with Velocity Control)

Design:

The separator expands the flow path, reducing steam velocity and allowing gravity to pull water droplets to the bottom.

Often used in low-pressure sections (e.g., after turbine stages) where steam velocity is lower.

Example Application:

Condensate tanks or low-pressure turbine exhaust systems to separate remaining moisture.

d. Filtration (Mesh or Fiber Beds)

Design:

Fine mesh screens (e.g., stainless steel wire mesh) or fibrous media trap tiny droplets (<10 microns) that other methods may miss.

Example Application:

High-purity steam systems in power plants with water-steam cycles that require minimal moisture (e.g., nuclear power plants).

Applications in Power Plant Systems

a. Steam Turbine Protection

Challenge:

Moisture in steam (even 1–2% liquid water) can cause erosion of turbine blades, reducing efficiency and lifespan.

Water droplets also create inefficiencies by absorbing thermal energy that should drive the turbine.

Separator Function:

Installed at the turbine inlet or between turbine stages (e.g., high-pressure to low-pressure turbines) to remove moisture.

Cyclonic or vane-type separators are common here, as they handle high steam velocities (up to 100 m/s) and pressures (100–250 bar).

b. Boiler Feedwater and Condensate Systems

Challenge:

Condensate returning to the boiler may contain air or oil contaminants, reducing heat transfer and causing corrosion.

Separator Function:

Separators remove non-condensable gases (e.g., air) and oil from condensate, improving feedwater quality.

Mesh pad separators are often used here for fine filtration.

c. Reheater and Superheater Systems

Challenge:

Steam generated in boilers may cool and form moisture as it passes through pipes, reducing its enthalpy (energy content).

Separator Function:

Installed after reheaters (which reheat steam post-turbine) to remove moisture formed during the reheating process.

Baffle separators are common here, as they efficiently disrupt steam flow to release droplets.
