How Do Tube-in-tube Heat Exchangers Compare with Shell And Tube Heat Exchangers?

Tube-in-tube heat exchangers and shell-and-tube heat exchangers are both widely used in industrial thermal systems, but they differ significantly in design, capacity, and typical application. The comparison below outlines the key differences to help with proper selection.

Design and Construction

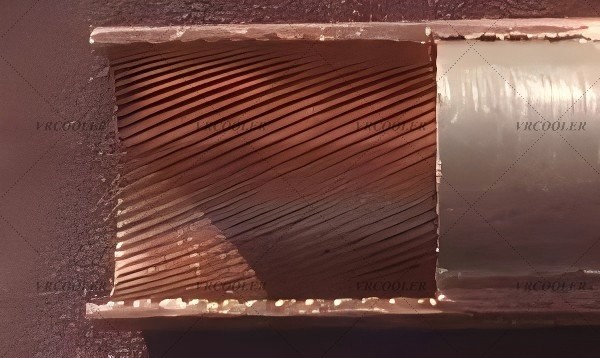

A tube-in-tube heat exchanger consists of one tube placed concentrically inside another, creating a very simple and robust structure.
A shell-and-tube heat exchanger uses a bundle of multiple tubes enclosed within a shell, allowing a much larger heat transfer surface in a compact volume.

Heat Transfer Capacity

• Tube-in-tube: Best suited for small to medium heat duties. Increasing capacity generally requires longer tube lengths, which increases footprint.

• Shell-and-tube: Designed for medium to very large heat duties, offering high heat transfer capacity within a compact design.

Pressure and Temperature Capability

• Tube-in-tube: Excellent for high-pressure and high-temperature applications due to strong concentric tube construction.

• Shell-and-tube: Also capable of high pressures and temperatures, but mechanical design is more complex and depends on tube sheet, shell thickness, and expansion joints.

Maintenance and Cleaning

• Tube-in-tube: Very easy to inspect and clean, making it ideal for fouling or viscous fluids.

• Shell-and-tube: Cleaning is more time-consuming, especially on the shell side, though removable bundles improve maintainability.

Footprint and Installation

• Tube-in-tube: Requires more installation space for higher capacities and is less compact.

• Shell-and-tube: More compact for the same thermal duty, especially in large-scale systems.

Cost Considerations

• Tube-in-tube: Lower initial cost for smaller capacities and simpler fabrication.

• Shell-and-tube: Higher initial cost but more economical for large heat duties due to efficient space utilization.

Typical Applications

• Tube-in-tube heat exchangers:

• Hydraulic oil coolers

• Refrigeration and heat pump systems

• Chemical and process cooling with high pressure

• Small industrial heating and cooling systems

• Shell-and-tube heat exchangers:

• Power generation and CHP plants

• Petrochemical and refinery processes

• Large HVAC and district energy systems

• Steam condensation and large-scale heat recovery

Summary

Tube-in-tube heat exchangers are ideal when simplicity, high-pressure capability, and ease of maintenance are priorities for small to medium heat loads.
Shell-and-tube heat exchangers are the preferred solution for large-capacity, compact, and high-duty industrial applications where higher initial investment is justified by performance and space efficiency.
