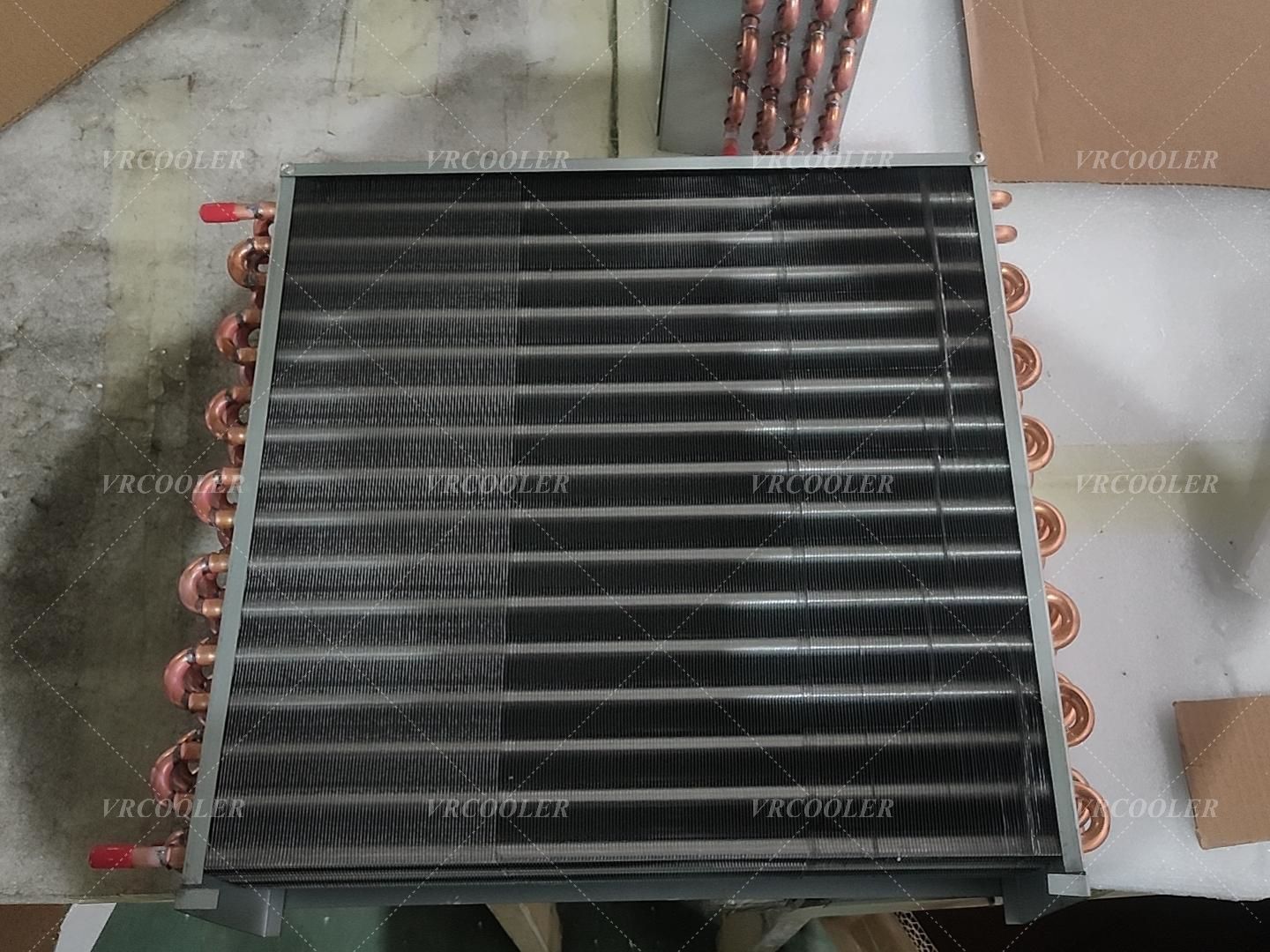

Custom Water-to-Air Cooling Coil for Compact 8 kW Cooling Duty

For projects that need reliable air cooling in a compact footprint, a custom water-to-air cooling coil is often the most practical solution. Based on the operating data provided, this coil is intended for an airflow of about 3,200 m³/h and a water flow of around 1.3 m³/h, with a target cooling capacity of approximately 8 kW. The preferred coil face size is about 595 x 595 mm, giving a frontal area close to 0.5 m², and a 3-row or 4-row construction would be suitable depending on the final leaving-air condition and pressure drop requirements.

This kind of coil is commonly used when chilled water or cooling water is available and the system needs to remove heat from an air stream efficiently. As air passes across the finned tube surface, heat is transferred to the water flowing inside the tubes. The result is a compact and effective heat exchanger that can be installed in air handling units, cabinet cooling systems, small process air systems, OEM equipment, and other thermal management applications where space is limited but stable performance is required.

Since there are no special corrosion-resistance requirements at this stage, copper tube and aluminum fin construction is a sensible choice. It offers good thermal conductivity, mature manufacturing methods, and cost-effective performance for standard indoor or controlled-environment applications. Copper tubes provide efficient heat transfer on the water side, while aluminum fins increase the external surface area so the coil can cool the required air volume within a relatively small face dimension. For many general-purpose cooling systems, this copper-aluminum combination remains the most practical balance of performance and cost.

With a face size near 595 x 595 mm, the coil can fit into compact equipment housings while still handling the specified airflow. A 3-row design may be preferred where lower air-side pressure drop and lighter coil weight are important. A 4-row design can provide additional heat transfer surface and more thermal margin if the entering air temperature is higher or if a lower leaving air temperature is required. The final row selection should be based on the exact entering and leaving water temperatures, air entering condition, fin spacing, and the allowable pressure drop on both air and water sides.

For an 8 kW cooling duty, coil geometry plays an important role. Tube diameter, tube pitch, fin density, circuiting arrangement, and header design all affect real performance. A well-designed coil should not only reach the target capacity, but also maintain balanced water distribution and acceptable airflow resistance. In compact systems, this balance is especially important because an oversized pressure drop can reduce fan performance, while poor circuiting can lower actual cooling efficiency.

Custom manufacturing also allows the coil to match the installation layout more precisely. Connection size and position, casing dimensions, mounting flanges, drain pan arrangement if needed, and handedness can all be adapted to the equipment design. This is especially useful for OEM units or retrofit applications where a standard coil size may not fit well. Even when the thermal duty is modest, accurate dimensional matching can make installation much easier and improve the finished system layout.

In practical terms, this water-to-air cooling coil is a good fit for compact air cooling applications that need dependable heat rejection without unnecessary complexity. With about 3,200 m³/h of air, 1.3 m³/h of water flow, and an 8 kW target duty, a copper tube aluminum fin coil in a 595 x 595 mm format offers a solid starting point for design. Once the entering water temperature, leaving water temperature, entering air temperature, and humidity are confirmed, the coil can be optimized further to determine whether a 3-row or 4-row configuration is the better choice.

A custom water-to-air cooling coil like this is not just a standard HVAC component. When sized correctly, it becomes a key part of the system’s thermal performance, helping deliver stable cooling, compact equipment design, and reliable long-term operation.
