All-Aluminum vs. Copper-Aluminum Heat Exchanger
All-Aluminium: The modern, lightweight champion. Excellent for efficiency, specific corrosion resistance, and cost, but can be less robust and harder to repair.

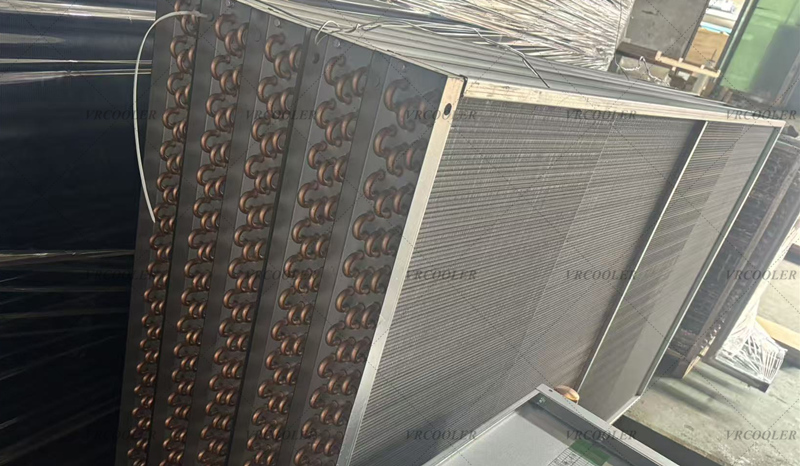

Copper-Aluminium: The traditional, robust workhorse. Prized for its durability, repairability, and proven track record, but heavier and susceptible to a specific type of corrosion.
| Feature | All-Aluminium | Copper-Aluminium (Cu/Al) |
|---|---|---|
| Material & Weight | Lighter (Al density is ~1/3 of Cu). Crucial for automotive, aerospace. | Heavier. |
| Thermal Conductivity | Good (Al ~237 W/m·K). Design often trumps material: Modern microchannel designs create extremely high efficiency. | Excellent (Cu ~400 W/m·K). The copper tube itself is a highly efficient conductor. |
| Corrosion Resistance | No Galvanic Corrosion. Excellent with Ammonia (R717). Vulnerable to Formicary Corrosion. | Prone to Galvanic Corrosion (Al fins corrode). Not suitable for ammonia. More resistant to formicary corrosion. |
| Strength & Durability | Softer. More prone to damage from hail, handling, or pressure spikes. | More Robust. Copper tubes are stronger and more resilient to physical and operational abuse. |
| Repairability | Very Difficult. Brazed joints are hard to repair in the field. A leak often means coil replacement. | Repairable. Copper tubes can often be soldered or brazed in the field, saving cost and time. |
| Cost | Lower Material Cost. Aluminium is cheaper per kg. Manufacturing (e.g., brazing) can be complex. | Higher Material Cost. Copper is a more expensive commodity. |
| Refrigerant Charge | Lower, especially in microchannel designs. Better for the environment and cost. | Higher internal volume typically requires more refrigerant. |
| Primary Applications | • Automotive HVAC • New Residential/Commercial AC & Heat Pumps (Microchannel) • Ammonia Industrial Systems |
| Scenario | Recommended Choice | Rationale |
|---|---|---|
| New High-Efficiency Residential Heat Pump | All-Aluminium (Microchannel) | Maximizes efficiency, reduces refrigerant charge, is lighter, and is cost-effective for the manufacturer. |
| Industrial Ammonia Refrigeration | All-Aluminium | Mandatory. Aluminium is one of the few metals that can withstand ammonia corrosion. |
| Commercial Rooftop Unit (in a hail-prone area) | Copper-Aluminium | The stronger copper tubes are more likely to survive hail impacts without leaking. |
| A system where downtime is critical | Copper-Aluminium | The ability to perform field repairs on a leaking tube can save days of downtime versus waiting for a full coil replacement. |
| Coastal Environment | All-Aluminium | Eliminates galvanic corrosion, which is a major failure mode for Cu/Al coils in salt-laden air. |
| Automotive Condenser/Evaporator | All-Aluminium (Microchannel) | Industry Standard. The perfect balance of lightweight, compact size, and high performance. |
