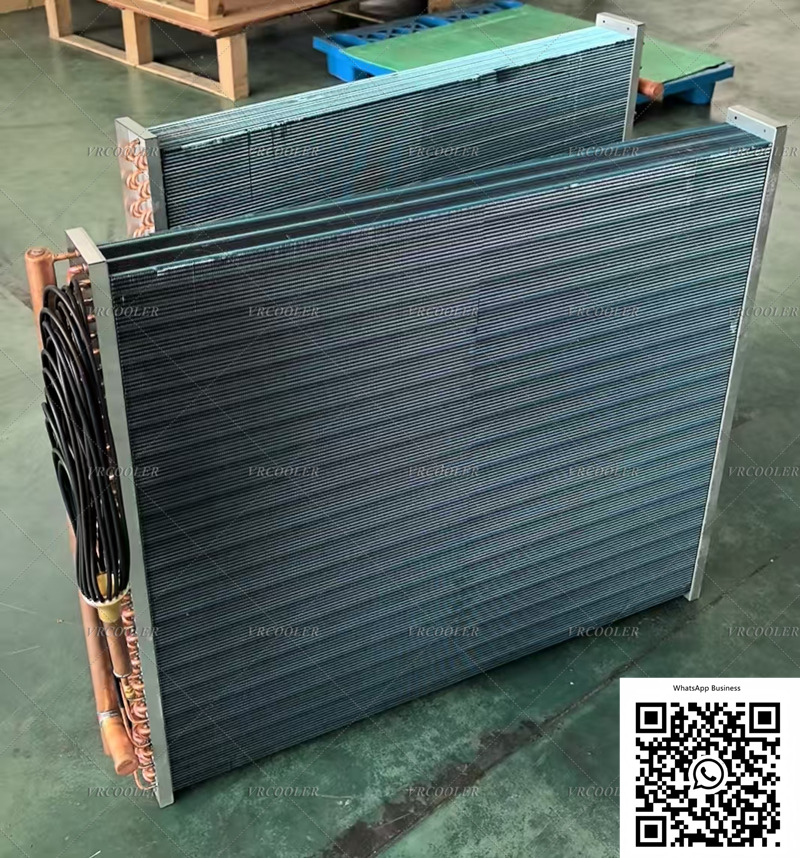

All-Aluminum and Copper-Aluminum Heat Exchangers Cost
| Factor | All-Aluminium | Copper-Aluminium |
|---|---|---|
| Raw Material Cost | Lower. Aluminium is a less expensive commodity than copper per kilogram. | Higher. Copper is a more expensive and volatile commodity. |
| Material Usage | Often uses more material volume to achieve similar pressure-bearing capacity due to aluminium's lower strength. | Can use thinner tube walls because copper is stronger, partially offsetting the high material cost. |
| Manufacturing Process | Requires complex, controlled-atmosphere brazing furnaces. High initial capital cost for machinery, but very efficient at scale. | Uses mechanical expansion to bond fins to tubes, or simpler brazing/soldering. Well-established and widespread processes. |
| Overall Initial Cost | Generally Lower. The lower raw material cost is the dominant factor, making the initial unit price more attractive to OEMs. | Generally Higher. The high cost of copper directly translates to a more expensive coil. |
Verdict on Initial Cost: All-Aluminium wins. This is the primary reason manufacturers are shifting to all-aluminium, especially in microchannel designs, as it reduces the Bill of Materials (BOM) cost.
All-Aluminium: Lighter weight can make handling and installation slightly easier and cheaper, particularly for large units.
Copper-Aluminium: Heavier, but installation practices are long-established and don't typically incur a significant premium.
Verdict: Slight advantage to All-Aluminium.
All-Aluminium (Microchannel): Modern designs are extremely efficient, leading to lower energy consumption for the same cooling/heating output. This saves money on electricity bills over the life of the unit.
Copper-Aluminium: Can be highly efficient, but often slightly less so than an equivalently sized modern microchannel design.
Verdict: Advantage to All-Aluminium due to superior modern design, which translates to long-term operational savings.
This is where the equation flips.
| Scenario | All-Aluminium | Copper-Aluminium |
|---|---|---|
| Leaking Tube | Very High Repair Cost. Field repair is virtually impossible. The standard solution is a full coil replacement. This is expensive for the part and labor. | Lower Repair Cost. A skilled technician can often repair a leak by soldering or brazing the copper tube. This is a relatively quick and inexpensive field service. |
| Damaged Fins (Bent) | Repair is possible but delicate. Fins can be straightened with a "fin comb." | Repair is possible but delicate. Fins can be straightened with a "fin comb." |
| Corrosion Failure | Costly full replacement. However, this is less likely in environments that cause galvanic corrosion (e.g., coastal areas). | Costly full replacement. This is a common failure mode in harsh environments due to galvanic corrosion. |
Verdict on Repairs: Copper-Aluminium wins decisively. The ability to perform a $500 repair instead of a $2,000+ replacement is a massive financial advantage for the owner.
