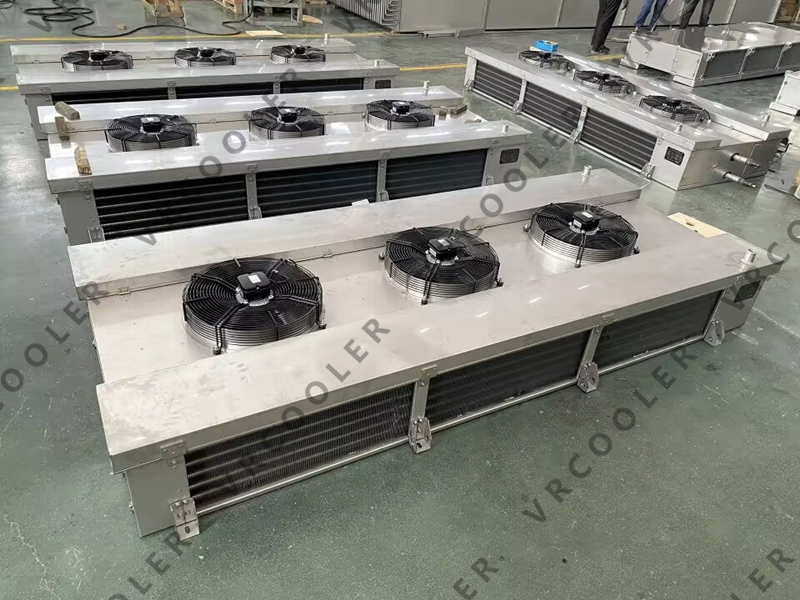

Selecting the right cold room cooling coil is essential to ensure efficient refrigeration performance and stable temperature control in cold storage facilities. Several technical factors must be considered when choosing the appropriate equipment.
1. Required Storage Temperature
The design of the cooling coil depends on the operating temperature of the cold room.
Typical ranges include:
High temperature: 8°C to 15°C for fruit and vegetable storage
Medium temperature: 0°C to 8°C for fresh food preservation
Low temperature: −18°C to −25°C for frozen food storage
Lower temperatures usually require larger coils and wider fin spacing to reduce frost buildup.
2. Cooling Capacity
The cooling coil must match the total heat load of the cold room. Important factors include:
Cold room volume
Product load
Door opening frequency
Heat infiltration from outside air
Lighting and equipment heat
Accurate load calculation ensures the system maintains stable storage temperatures.
3. Airflow and Air Distribution
Fans attached to the cooling coil must provide sufficient airflow to distribute cold air evenly throughout the room.
Important considerations include:
Fan capacity and number
Air throw distance
Cold room dimensions and layout
Good air circulation prevents temperature stratification.
4. Fin Spacing
Fin spacing determines how well the coil handles frost.
Wide fin spacing (6–12 mm) is suitable for freezer rooms.
Narrow fin spacing (3–6 mm) provides higher heat transfer for medium-temperature storage.
Correct spacing maintains airflow and improves efficiency.
5. Refrigerant Compatibility
The cooling coil must be designed for the refrigerant used in the refrigeration system.
Common refrigerants include:
R404A
R507A
R134a
R449A
CO₂ (R744)
6. Defrost Method
Frost accumulation can reduce heat transfer efficiency. The cooling coil should be compatible with the appropriate defrost system:
Electric defrost
Hot gas defrost
Water defrost
7. Installation Conditions
The available space and room layout determine the size and placement of the cooling coil. Ceiling-mounted installations are common because they allow better airflow and maximize storage space.
Summary
Selecting the correct cold room cooling coil requires evaluating temperature requirements, refrigeration load, airflow design, fin spacing, refrigerant compatibility, defrost method, and installation conditions. Proper selection ensures reliable refrigeration performance and efficient cold storage operation.
