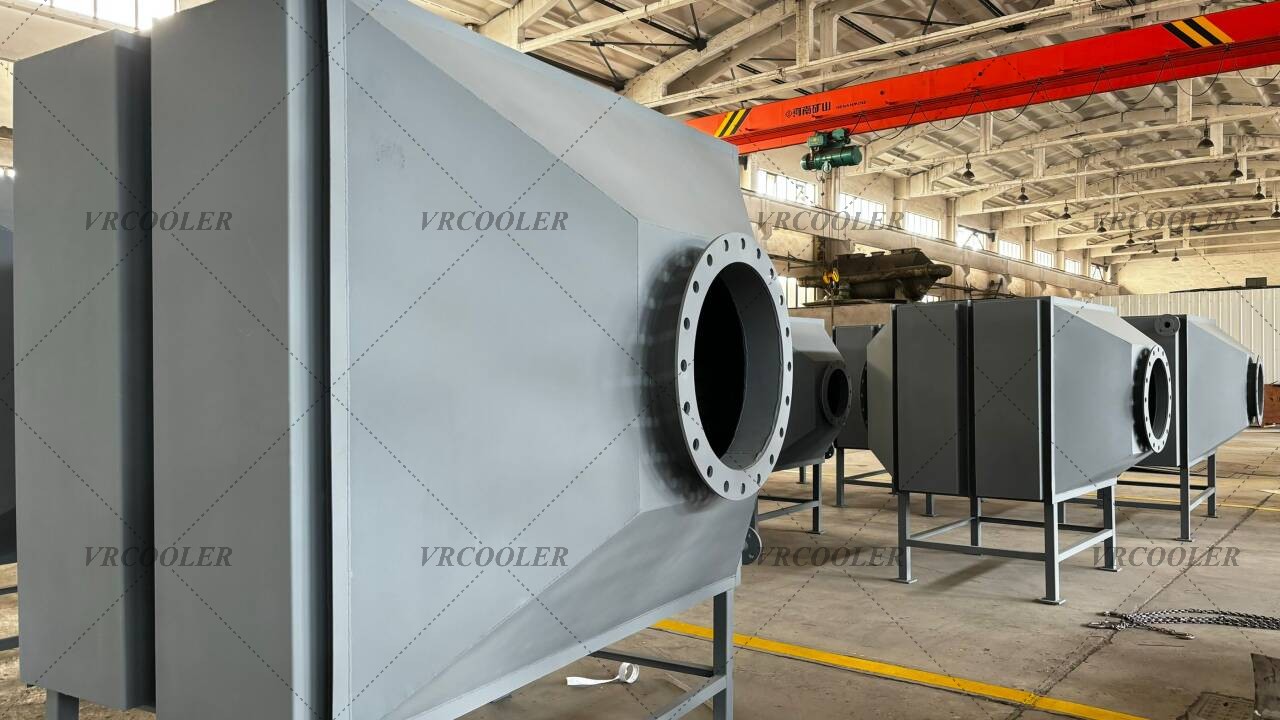

Air Heat Recovery Coil for Cement Factories

An air heat recovery coil is a finned-tube heat exchanger that transfers heat from a stream of hot exhaust air into a cooler air or fluid stream. The coil typically consists of:

• Steel, stainless steel, or copper tubes

• Aluminum or stainless-steel fins

• Heavy-duty casing and headers built for dusty, high-temperature environments

These coils can be installed directly in the exhaust duct or in a dedicated heat-recovery chamber.

Why Cement Factories Need Air Heat Recovery

Cement plant processes generate high-temperature exhaust air at multiple stages:

• Rotary kiln exhaust

• Clinker cooler exhaust

• Preheater tower vent air

• Raw material dryer discharge

• Burner air supply systems

This air normally leaves the system at 150–400°C, carrying a substantial amount of wasted energy. Recovering even a small portion of this heat leads to:

• Significant fuel savings

• Lower emissions (CO₂, NOₓ, and particulate matter)

• Reduced load on burners and boilers

• Improved plant thermal efficiency

• Faster return on investment

How an Air Heat Recovery Coil Works

1. Hot exhaust air passes over the coil surface, transferring heat into the finned tubes.

2. The recovered heat is transferred to:

• Fresh combustion air

• Process make-up air

• Water or thermal oil circuits

3. The heated air or fluid can be reused in:

• Raw meal drying

• Kiln combustion air preheating

• Space heating

• Utility water preheating

• Hot air generation for material transport

This process reduces the demand for fossil-fuel energy and stabilizes plant operation.

Design Features for Cement Industry Conditions

Air heat recovery coils for cement factories must withstand harsh working environments including dust, abrasion, high temperature, and corrosion. Common design features include:

• Stainless steel or Corten steel tubes for high-temperature resistance

• Thick aluminum or stainless-steel fins to handle dusty air streams

• Reinforced steel casing designed for vibration and heavy dust loads

• Easy-access frames for cleaning and maintenance

• High-temperature gaskets and seals

• Tube expansion or welding techniques for robust mechanical integrity

Benefits of Using Air Heat Recovery Coils in Cement Plants

1. Reduced Fuel Consumption

Recovered heat can preheat combustion air or raw material feed, lowering the fuel required in kilns and dryers.

2. Lower Operating Costs

Energy recovered from exhaust reduces electricity and gas or coal usage, improving profitability.

3. Emission Reduction

Less fuel burned means lower CO₂ and particulate emissions, supporting environmental compliance.

4. Improved Process Stability

Preheated air provides more stable kiln and burner operation.

5. Long Equipment Lifespan

Industrial-grade coils are built to operate reliably even under abrasive cement dust and high temperatures.

6. Fast Payback Period

Most cement plants recover the investment cost within 1–3 years due to substantial fuel savings.

Typical Applications in Cement Plants

Air heat recovery coils are used in:

• Preheater tower exhaust heat recovery

• Clinker cooler waste heat utilization

• Hot gas generators

• Baghouse exhaust air heat recovery

• Recuperative air heaters

• Process make-up air heating

• Drying systems for raw materials, slag, or additives

Key Technical Parameters

When designing or selecting a heat recovery coil for a cement facility, engineers consider:

• Exhaust air temperature and dust load

• Airflow volume and velocity

• Required outlet temperature

• Tube material (SS304/316, carbon steel, Corten steel)

• Fin material (aluminum / stainless steel)

• Coil face area and fin density

• Pressure drop limitations

• Cleaning requirements (air blowing, water cleaning, or mechanical brushing)

A carefully engineered design ensures both high heat-transfer efficiency and long service life.

Conclusion

An air heat recovery coil is a powerful energy-saving solution for cement factories. By capturing heat from hot exhaust air streams and reusing it in production processes, cement plants reduce fuel consumption, cut emissions, and improve overall operational efficiency.

With proper material selection and robust construction, these coils perform reliably even in the challenging, dust-intensive environment of cement manufacturing—making them an essential component in any modern energy-efficient cement plant.
