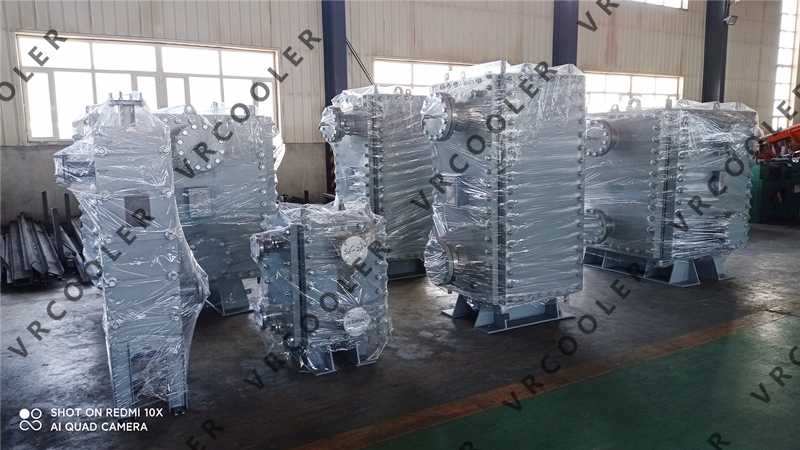

ASME Gasket and All-Weld Plate Heat Exchangers Applications

ASME gasket plate heat exchangers and ASME all-weld plate heat exchangers are engineered to meet stringent pressure, temperature, and safety requirements defined by the ASME Boiler and Pressure Vessel Code. Compared with conventional shell-and-tube or non-certified plate exchangers, these solutions provide higher heat transfer efficiency, compact design, and improved operational reliability, making them well suited for demanding industrial applications.

1. Applications Suitable for ASME Gasket Plate Heat Exchangers

ASME gasket plate heat exchangers use elastomeric gaskets to seal the plates and allow disassembly for inspection and maintenance. They are ideal where flexibility, cleanability, and moderate operating conditions are required.

Typical Applications

HVAC and District Energy Systems

• Chilled water and hot water heat exchange

• District heating and district cooling substations

• Heat pumps and energy transfer stations

Power and Utility Plants

• Closed-loop cooling water systems

• Auxiliary heat exchangers for turbines and generators

• Low-pressure condensate and feedwater heating

Food and Beverage Processing

• Pasteurization and product heating/cooling

• CIP (Clean-In-Place) systems

• Sanitary processes requiring frequent cleaning

Chemical and Pharmaceutical Industries

• Batch process heating and cooling

• Non-toxic, non-hazardous fluids

• Processes requiring frequent inspection or plate replacement

Marine and Offshore (Non-Hazardous Loops)

• Central cooling systems

• Freshwater cooling

• Jacket water heat exchangers

Why Gasket Plate Heat Exchangers Are Suitable

• ASME code compliance for pressure integrity

• Easy maintenance and plate replacement

• High thermal efficiency with low approach temperature

• Expandable capacity by adding plates

Limitations:
Not recommended for toxic, flammable, or very high-temperature fluids, as gasket materials impose temperature and chemical limits.

2. Applications Suitable for ASME All-Weld Plate Heat Exchangers

ASME all-weld plate heat exchangers eliminate elastomer gaskets by fully welding plate packs. This design is intended for high pressure, high temperature, and aggressive media, where leakage risk must be minimized.

Typical Applications

Oil and Gas Industry

• Gas compression cooling

• Lube oil coolers

• Amine systems and glycol dehydration units

• Crude oil and condensate heat recovery

Petrochemical and Refining

• Hydrocarbon heating and cooling

• Reactor feed and product exchangers

• Condenser and reboiler duties

• Aromatics and solvent processing

Chemical Processing

• Corrosive and hazardous fluids

• Organic solvents and acids

• Continuous high-temperature processes

Power Generation

• Feedwater heating

• Condensate cooling

• Waste heat recovery systems

• Combined-cycle and cogeneration plants

Hydrogen, Ammonia, and Alternative Energy

• Hydrogen cooling and heat recovery

• Ammonia condensers and evaporators

• Synthetic fuel and electrolysis support systems

Why All-Weld Plate Heat Exchangers Are Suitable

• Full ASME pressure vessel compliance

• No gasket degradation or leakage risk

• High resistance to pressure cycling and thermal shock

• Compact alternative to shell-and-tube exchangers

• Suitable for toxic, flammable, and high-purity media

3. Gasket vs All-Weld: Application Selection Guide

4. Advantages Over Shell-and-Tube Heat Exchangers

Both ASME gasket and all-weld plate heat exchangers offer:

• Up to 3–5 times higher heat transfer coefficients

• Smaller footprint and lower weight

• Faster thermal response

• Reduced fouling due to high turbulence

For revamp projects, they are often used as drop-in replacements to improve efficiency and reduce operating costs.

Conclusion

ASME gasket plate heat exchangers are best suited for applications requiring cleanability, flexibility, and moderate operating conditions, such as HVAC, food processing, and utility systems.
ASME all-weld plate heat exchangers are the preferred solution for high-pressure, high-temperature, hazardous, or mission-critical processes in oil & gas, petrochemical, power generation, and chemical industries.
