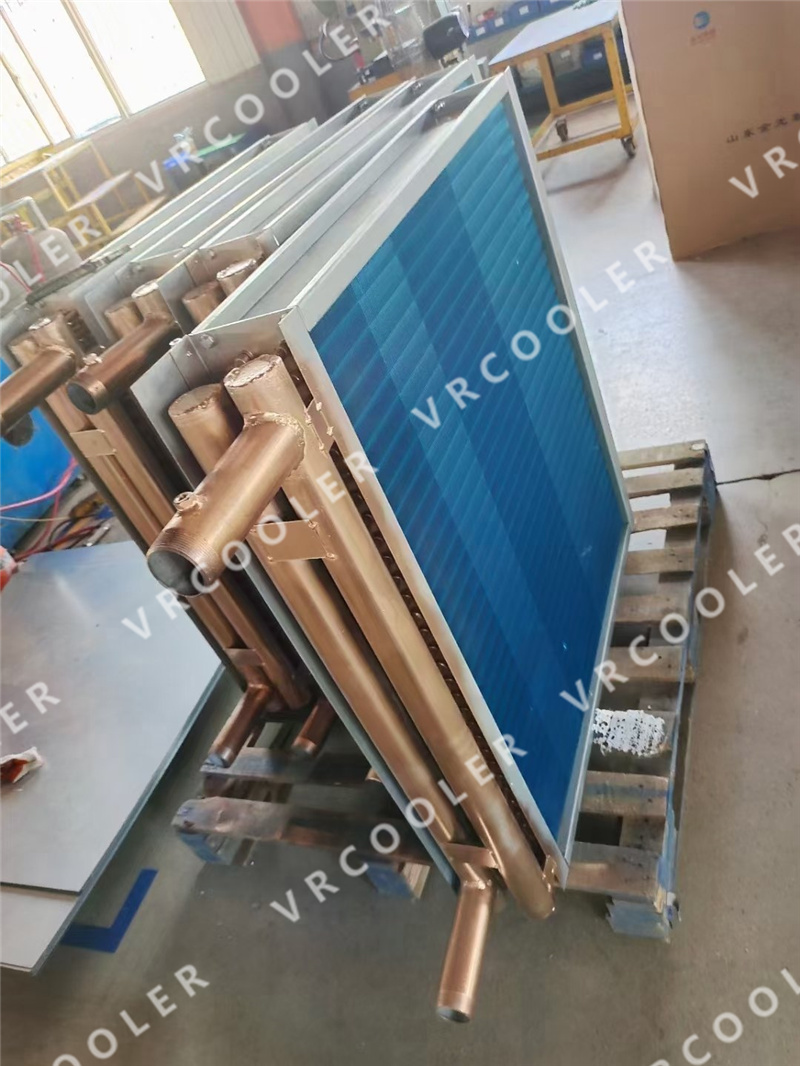

200 kW Air/Water Heat Exchanger

200 kW Air/Water Heat Exchanger

Air-to-water heat exchangers with a heat transfer capacity of 200 kW are designed to transfer heat from air to a water-based medium. These heat exchangers are commonly used in HVAC systems, industrial processes and renewable energy applications.

Below are some key considerations when selecting or designing an air-to-water heat exchanger with a 200 kW capacity:

1. Heat transfer capacity: A heat transfer capacity of 200 kW indicates that the heat exchanger is capable of transferring 200 kW of thermal energy from the air to the water medium. This capacity will determine the size and specification of the heat exchanger.

2. Application: For space heating, hot water generation, industrial process heating or other uses.

3. Air and water flow: The heat exchanger should be designed to allow sufficient air and water flow to achieve the required heat transfer capacity. Proper flow rates are critical for effective heat exchange.

4. Material Selection: Select materials that are corrosion resistant and suitable for air and water conditions. Common materials include copper, aluminium and stainless steel. Selection depends on factors such as water quality and environmental conditions.

5. Heat exchange surfaces: The surface area of a heat exchanger will determine its efficiency. Consider the arrangement of fins, tubes or plates to maximise heat transfer.

6. Air-side and water-side pressure drop: Know the pressure drop on the air-side and water-side of the heat exchanger. Higher pressure drops can affect system performance and energy consumption.

7. Fluid temperatures: Determine the air and water inlet and outlet temperatures. This information is critical to properly size the heat exchanger.

8. Heat transfer coefficients: Heat transfer coefficients affect the rate of heat transfer. These coefficients depend on factors such as airflow rate, fin design, and fluid characteristics.

9. Energy efficiency: Consider the efficiency of the heat exchanger. An efficient design helps minimise energy consumption and operating costs.
