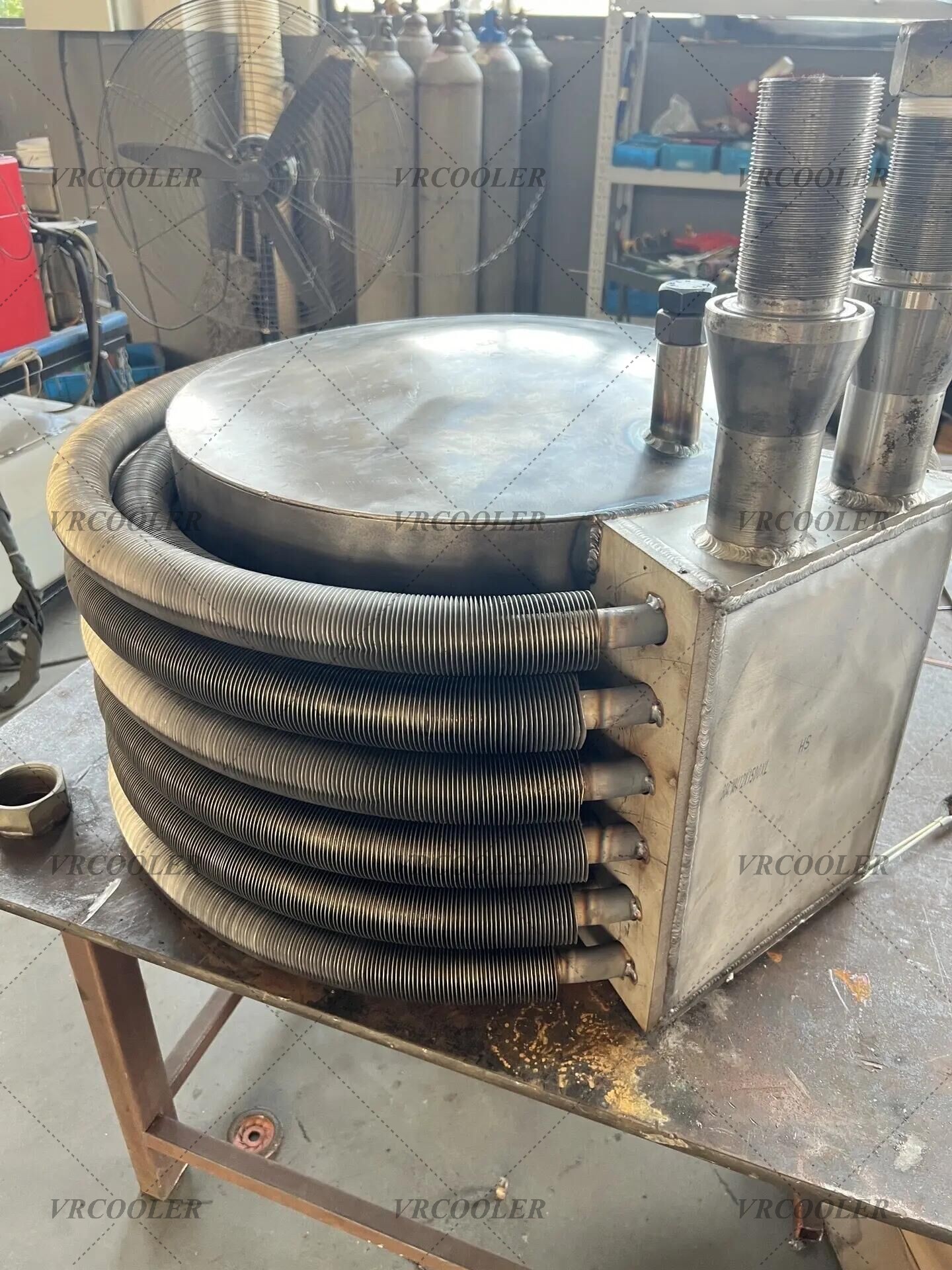

A finned tube heat exchanger is used in vacuum quenching systems because it provides high-efficiency cooling, compact design, and reliable thermal control—all essential for rapid and stable quenching operations. Vacuum quenching requires removing large amounts of heat quickly and consistently, and finned tube technology is ideally suited for this demanding application.
Below are the key reasons:
1. High Heat Transfer Efficiency
The combination of metal tubes with extended aluminum or stainless-steel fins significantly increases the surface area exposed to airflow.
This allows the cooler to remove heat very rapidly—critical when quenching hot metal parts inside a vacuum furnace.
2. Fast Cooling Response for Quenching Cycles
Vacuum quenching often involves sudden temperature drops.
Finned tube heat exchangers can handle these rapid thermal changes because:
They have excellent thermal conductivity
They provide a stable cooling supply even during peak loads
They maintain coolant temperatures within tight tolerances
This ensures consistent metallurgical results.
3. Air-Cooled Design Reduces Operating Costs
Unlike water-cooled towers, finned tube heat exchangers use ambient air as the cooling medium.
Benefits include:
Zero water consumption
Lower maintenance
No risk of water contamination in the vacuum furnace
Lower operational expenses
This makes them ideal for plants with strict utility cost controls.
4. Compact and Space-Efficient
Finned tube coils pack a large cooling surface into a relatively small footprint.
This allows installation:
Near the furnace
Outdoors
On rooftops
In tight industrial areas
Even high-capacity systems remain compact yet powerful.
5. Reliable Cooling for Furnace and Oil Systems
Vacuum quenching uses cooling water or quench oil to extract heat from metal parts.
Finned tube heat exchangers maintain:
Stable coolant inlet temperatures
Controlled quenching speed
Consistent furnace performance
This helps achieve uniform hardness and microstructure in treated components.
6. Handles High Thermal Loads
Vacuum furnaces generate significant heat during the quenching stage.
Finned tube systems can manage:
Continuous-duty heat loads
High oil or water temperatures
Repeated quenching cycles without performance loss
Their robust design supports 24/7 industrial operation.
7. Durable and Low Maintenance
The simple mechanical design—with few moving parts beyond the fans—ensures long service life.
Maintenance typically involves:
Cleaning fins
Checking fan motors
Inspecting tubes and connections
No water treatment, pumps, or evaporation systems are needed.
8. Customizable for Any Vacuum Furnace
Finned tube coolers can be built to match specific quenching requirements, including:
Heat load (kW)
Oil or water flow rate
Inlet/outlet temperature limits
Noise restrictions
Space constraints
This flexibility makes them the most common cooling solution for vacuum heat-treatment equipment.
Conclusion
A finned tube heat exchanger is used in vacuum quenching because it provides fast, efficient, cost-effective, and highly reliable cooling, ensuring stable furnace operation and high-quality metallurgical results. Its air-cooled design, durability, and ability to handle extreme heat loads make it the industry’s preferred cooling technology for vacuum quenching systems.
