What is the effect of fin spacing on the heat transfer efficiency of a tube and fin heat exchanger?

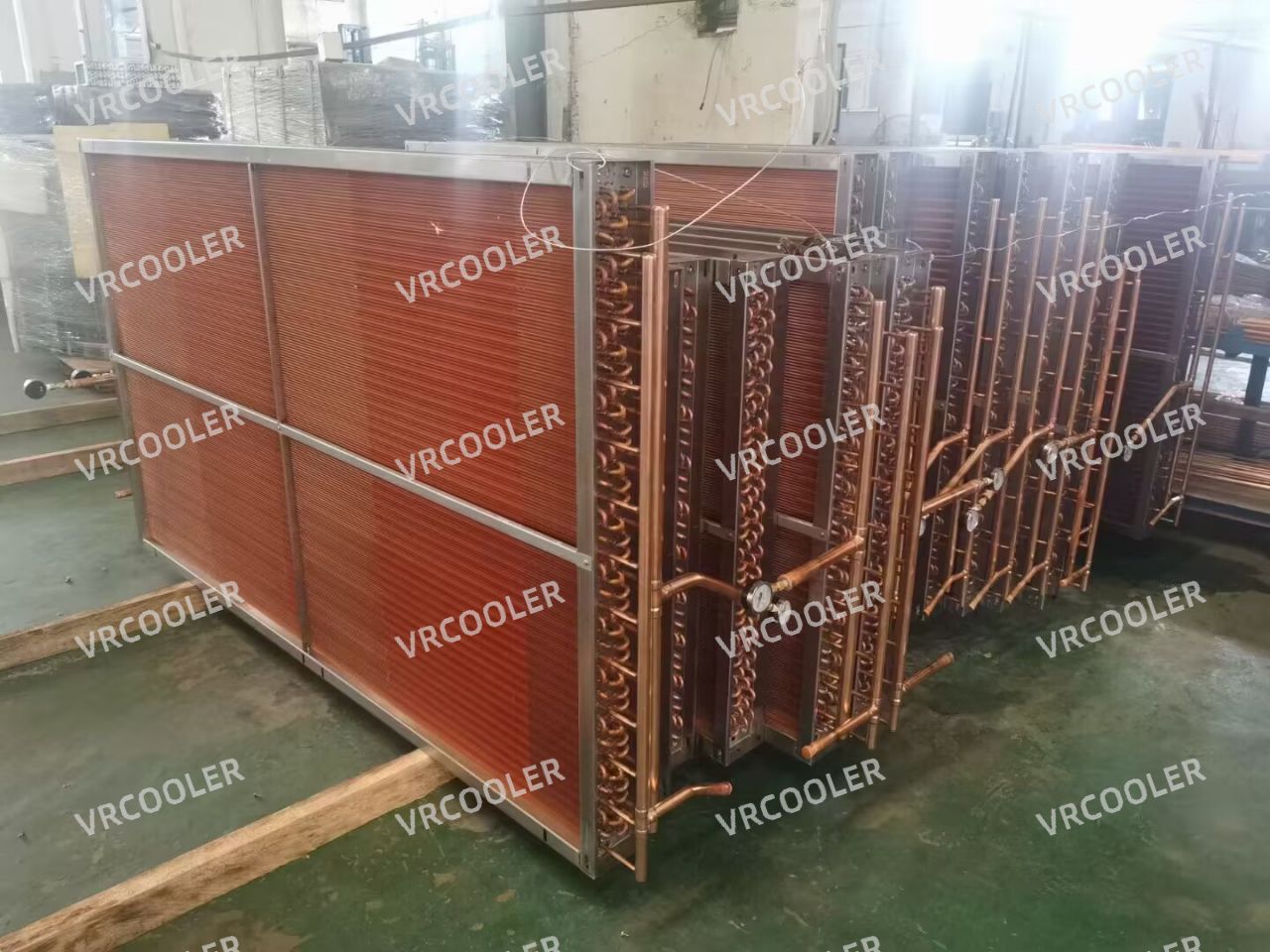

The fin pitch of a tube and fin heat exchanger is the distance between adjacent fins, and different fin pitches will have different effects on the heat transfer efficiency. Generally speaking, the smaller the fin spacing, the higher the heat transfer efficiency, but it also increases the pressure drop and flow resistance of the tube fin heat exchanger, affecting the fluid flow performance. The specific effects are as follows:

The smaller the fin spacing, the greater the heat exchange area, thus increasing the heat transfer efficiency and enabling higher heat transfer rates to be achieved with the same size tube and fin heat exchanger.

The smaller the fin spacing, the greater the velocity of the fluid as it flows through the fins, thereby increasing the frictional resistance of the fluid and the pressure drop across the tube and fin heat exchanger, which may affect the fluid flow properties.

The smaller the fin spacing, the smaller the gap between the fins, which may affect the cleaning and maintenance of the tube and fin heat exchanger.

A fin spacing that is too small may lead to ash build-up and scaling between the fins, affecting the heat transfer efficiency of the tube and fin heat exchanger.

Therefore, the choice of fin spacing needs to be determined by taking the above factors into account and according to the specific application needs and process requirements. Generally speaking, the fin spacing is generally between 5mm and 15mm, a range that allows for good heat transfer without having an excessive impact on the fluid flow performance.

What is the effect of fin thickness on the heat transfer efficiency of a tube fin heat exchanger?

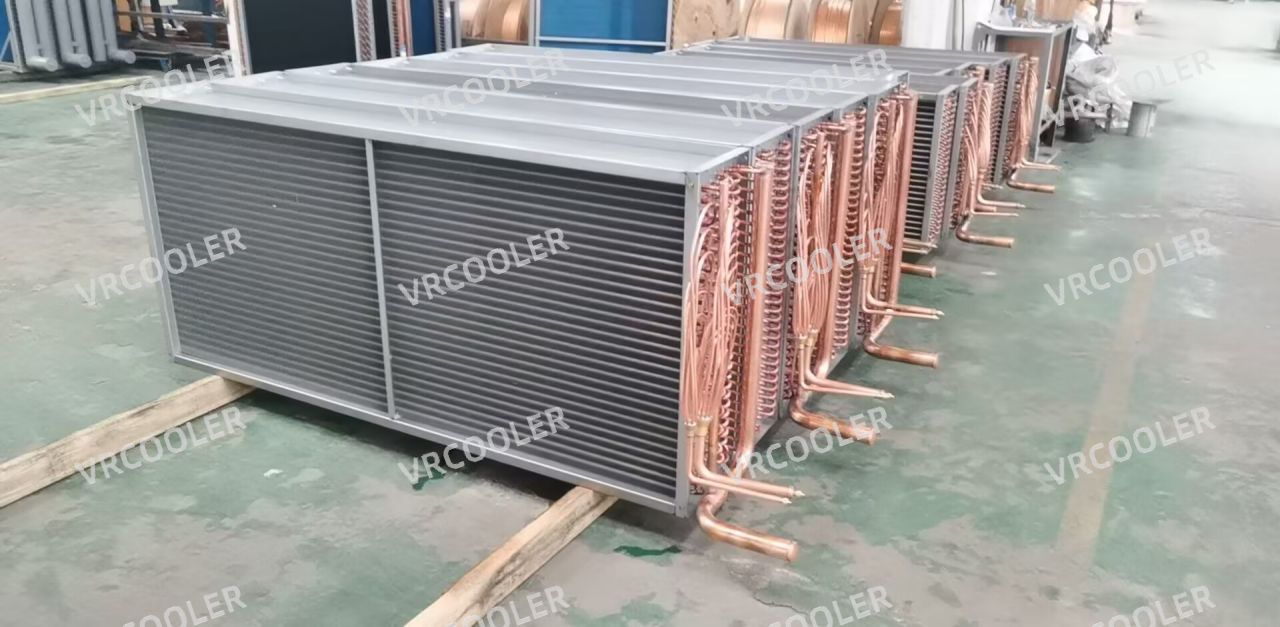

The fin thickness of a tube and fin heat exchanger refers to the thickness of the fins. Fin thickness has a certain impact on the heat transfer efficiency of a tube and fin heat exchanger, as follows:

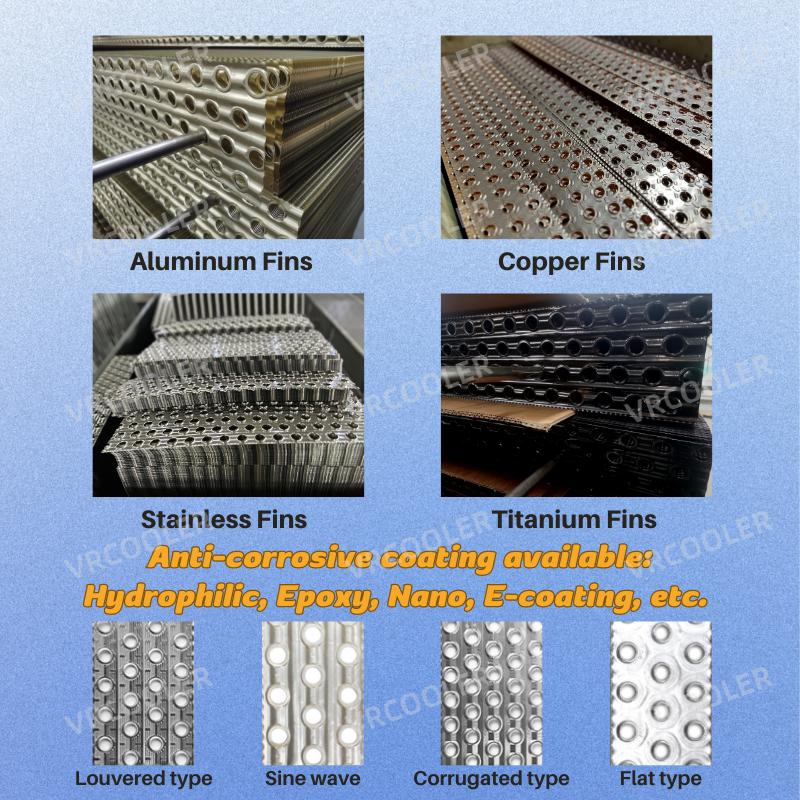

Fin thickness has an impact on the heat transfer coefficient of the tube fin heat exchanger. Generally speaking, the thinner the fin thickness, the greater the heat transfer coefficient, and the higher the heat transfer efficiency. This is because the thinner the fin thickness, the larger the surface area of the fins, and the surface area for heat transfer becomes larger, thus increasing the heat transfer coefficient.

Fin thickness has an impact on the pressure drop of the tube fin heat exchanger, generally speaking, the greater the fin thickness, the greater the pressure drop of the tube fin heat exchanger. This is because the greater the fin thickness, the greater the resistance to the fluid passing through the fins, resulting in an increased pressure drop.

Fin thickness has an impact on the strength and durability of the tube and fin heat exchanger, generally speaking, the greater the fin thickness, the better the strength and durability of the tube and fin heat exchanger. This is because the greater the fin thickness, the stronger the fin structure is and the more it can withstand external pressure and impact, thus increasing the strength and durability of the tube and fin heat exchanger.

Overall, fin thickness has an impact on the heat transfer efficiency, pressure drop and strength of the tube and fin heat exchanger. The selection of fin thickness needs to take into account the above factors and be determined according to the specific application needs and process requirements. Generally speaking, the fin thickness is generally between 0.1mm and 0.3mm, a range that allows for better heat transfer and also ensures the strength and durability of the tube and fin heat exchanger.
