Hydrogen coolers offer several technical and operational advantages in water turbine (hydropower) power generation, particularly for medium- and large-capacity synchronous generators.
Hydrogen has 7–10 times higher thermal conductivity than air, allowing heat to be removed more efficiently from stator and rotor windings. This ensures:
Lower operating temperatures
More uniform temperature distribution
Reduced thermal stress on insulation
Because hydrogen has very low density, it significantly reduces:
Aerodynamic drag on the rotor
Ventilation and windage losses
This directly improves generator efficiency and reduces mechanical wear.
Improved heat transfer allows generators to:
Operate at higher electrical output for the same physical size
Use more compact designs
This is especially beneficial in large hydropower stations where space and weight are constrained.
By lowering internal losses and improving cooling effectiveness, hydrogen-cooled generators achieve:
Higher electrical efficiency
Reduced parasitic power consumption
Better part-load performance
Lower and more stable temperatures result in:
Extended winding insulation life
Reduced risk of hot spots
Lower failure rates during continuous operation
This is critical for baseload hydropower plants.
Hydrogen cooling is particularly well suited for:
Medium to large hydro generators (tens to hundreds of MW)
High-speed or high-load operating conditions
Air cooling becomes impractical at these power levels.
Hydrogen’s low density reduces:
Turbulence inside the generator casing
Aerodynamic noise
This contributes to quieter generator operation.

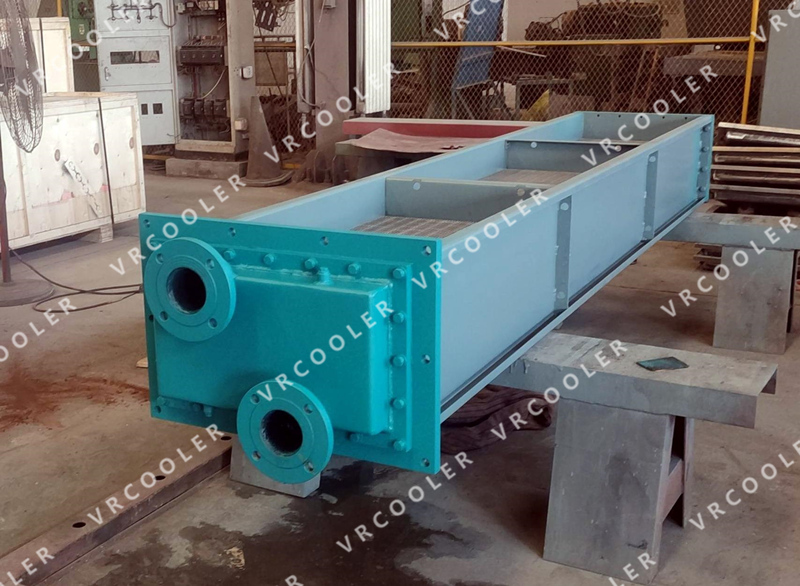

Hydrogen coolers (gas-to-water heat exchangers):
Provide controlled, stable heat rejection
Allow precise temperature regulation using cooling water
Support redundancy for safe continuous operation
Hydrogen cooling helps maintain:
Stable generator temperatures under load fluctuations
Reliable operation during peak demand or seasonal variations
This improves grid stability in hydropower systems.
Although initial investment is higher, hydrogen cooling systems offer:
Lower efficiency losses over time
Reduced maintenance caused by thermal degradation
Longer overhaul intervals
Resulting in lower total cost of ownership for large hydropower generators.
Hydrogen coolers enable higher efficiency, greater power density, improved reliability, and lower operating losses in water turbine power generation. For medium- and large-capacity hydropower generators, hydrogen cooling is a proven and preferred solution over conventional air cooling.
