Vacuum Furnace Finned Tube Heat Exchanger

In modern heat-treatment technology, precise temperature control and reliable thermal management are essential to ensure product quality, operational stability, and furnace longevity. A Vacuum Furnace Finned Tube Heat Exchanger is a specialized cooling component designed to handle the demanding requirements of vacuum furnaces, including high temperatures, challenging atmospheres, and strict cleanliness standards.

With its compact coil layout, high-conductivity materials, and optimized fin structure, this type of heat exchanger delivers excellent cooling performance in a minimal footprint.

What Is a Vacuum Furnace Finned Tube Heat Exchanger?

A vacuum furnace finned tube heat exchanger is a coil-based cooling assembly made of copper or stainless-steel finned tubes, formed into a circular or spiral shape and connected to an inlet/outlet header. It is typically installed inside or adjacent to the vacuum furnace cooling system.

Its function is to remove heat from the furnace or thermal process chamber by transferring it to a circulating coolant—usually water, glycol-water mixture, or special thermal fluids.

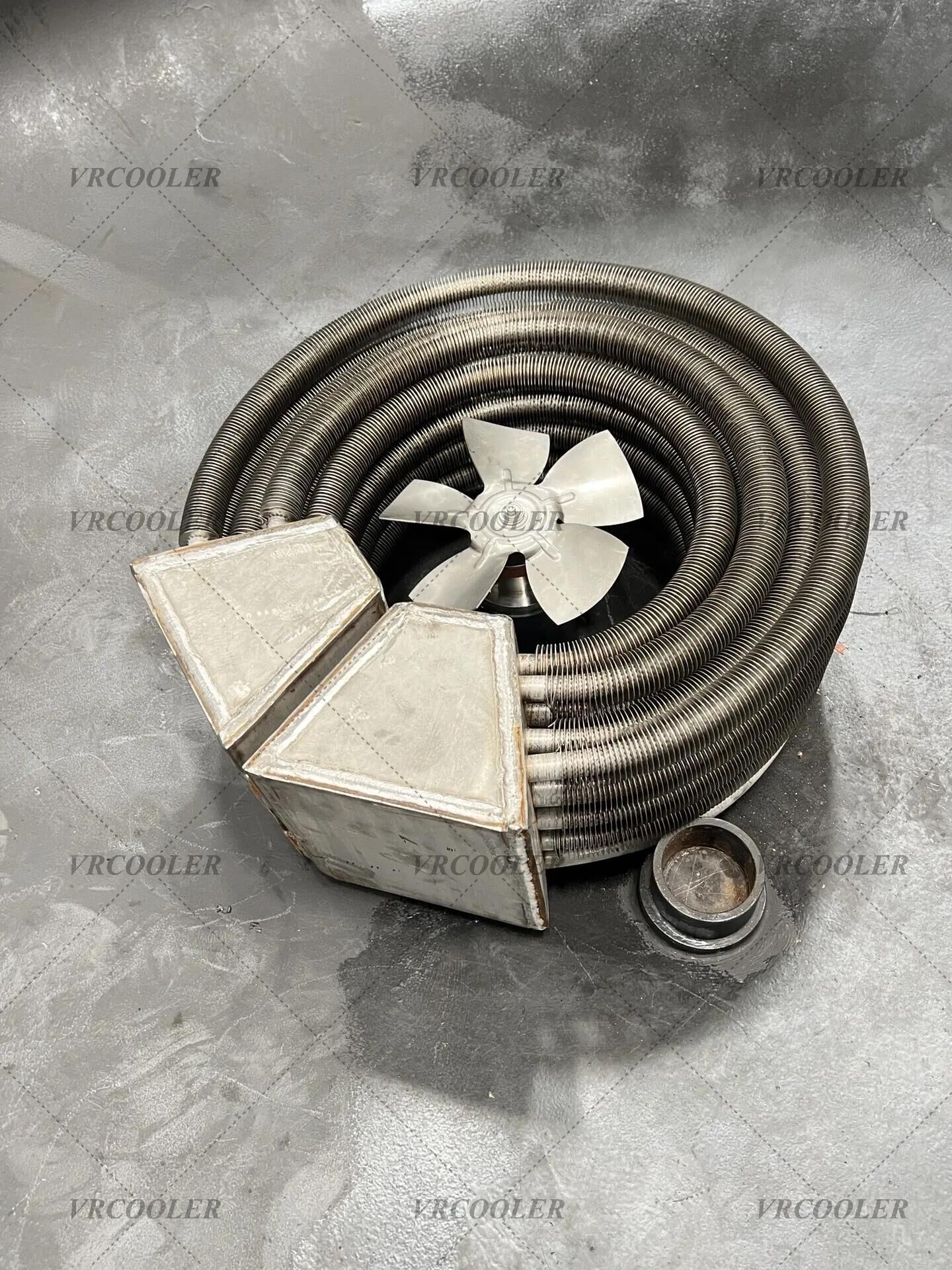

The design shown in the image features:

• Multiple copper finned tubes arranged in circular formation

• High-surface-area fins for improved heat dissipation

•


• Robust welded headers to ensure leak-free operation

• Inlet/outlet nozzles designed for easy piping integration

These construction features make it suitable for demanding heat-treatment environments such as vacuum brazing, sintering, quenching, annealing, and carburizing furnaces.

Why Finned Tubes Are Ideal for Vacuum Furnaces

Vacuum furnaces operate under extreme conditions—high temperatures, low pressure, and sensitive atmospheres—which require efficient and stable cooling to maintain system integrity. Finned tubes offer several advantages:

• Increased Heat Transfer Area

The fins multiply the outer surface area of the tube, allowing the exchanger to handle higher heat loads without requiring large coil dimensions.

• Compact Structure

The coil-wound circular design fits easily into confined furnace spaces while maintaining excellent cooling capacity.

• High Thermal Conductivity

Copper is commonly used because of its superior thermal conductivity, ensuring rapid heat removal during fast cooling cycles.

• Strong Mechanical Durability

The tubes and headers are engineered to withstand temperature fluctuations, vacuum conditions, and coolant pressure.

• Energy Efficiency

Efficient heat transfer reduces coolant pump load and helps maintain overall furnace efficiency.

Applications in Vacuum Furnace Systems

Vacuum furnace finned tube heat exchangers are used in:

• Vacuum brazing furnaces

• Vacuum sintering furnaces

• Vacuum quenching systems

• High-temperature treatment chambers

• Metal additive manufacturing post-treatment furnaces

• Power electronics thermal systems in a vacuum environment

Their main function is to cool the furnace chamber, shielding plates, hot zone components, and vacuum pump systems.
