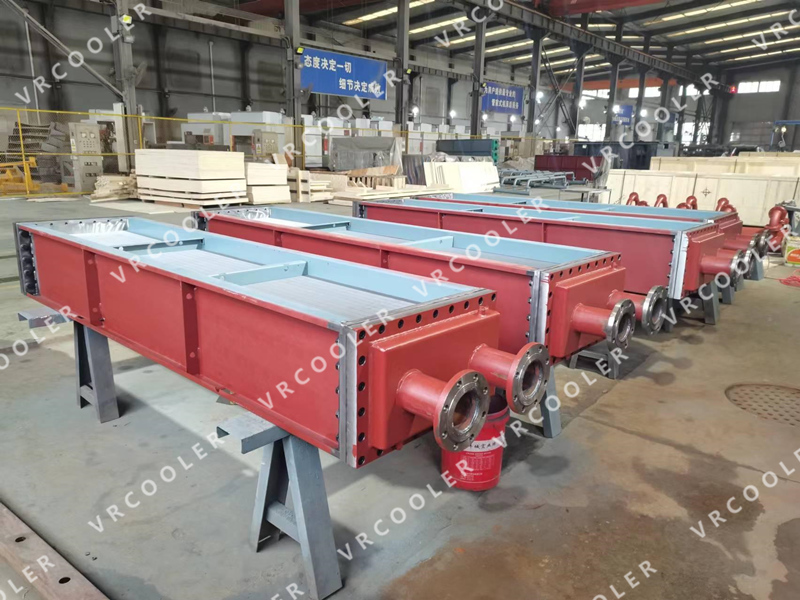

In fuel cell systems (PEMFC, PAFC, SOFC balance-of-plant), a hydrogen cooler is used to remove excess heat from the recirculated hydrogen stream exiting the anode. Effective cooling is essential to maintain stack temperature stability, protect downstream components (ejectors, recirculation blowers, humidifiers), and ensure safe, efficient electrochemical performance.
Hydrogen coolers are typically designed as compact gas-to-liquid heat exchangers (plate, tube-fin, or shell-and-tube) with materials and construction optimized for high hydrogen purity, low pressure drop, and zero leakage.
During fuel cell operation:
Only part of the supplied hydrogen is consumed at the anode
The remaining hydrogen is recirculated to improve fuel utilization
The recirculated gas picks up reaction heat and water vapor
Without proper cooling:
Stack temperature control becomes unstable
Membrane dehydration or flooding may occur
Hydrogen density drops, reducing efficiency
Downstream components face thermal stress
| Parameter | Typical Range |
|---|---|
| Hydrogen purity | ≥ 99.97% |
| Inlet gas temperature | 60–90 °C |
| Outlet target temperature | 40–65 °C |
| Operating pressure | 1–5 bar(g) |
| Pressure drop (H₂ side) | As low as possible (<10–20 mbar typical) |
| Hydrogen flow | Depends on stack size & recirculation ratio |
Design values vary by system size (stationary, automotive, marine, backup power).
Stainless steel or nickel alloy tubes
Aluminum or stainless fins (non-sparking, bonded)
Very low hydrogen-side pressure drop
Widely used in compact fuel cell modules
Extremely compact and efficient
Requires perfect sealing due to hydrogen diffusivity
More common in small stationary systems
Preferred for industrial-scale or high-reliability systems
Hydrogen typically on tube side
Cooling medium: deionized water or glycol
Easier inspection and long service life
1. Leak-Tight Construction
Hydrogen molecules are extremely small
All-welded or double-sealed designs preferred
Helium leak testing commonly required
2. Low Pressure Drop
Excess pressure drop increases parasitic power
Tube diameter, fin density, and flow velocity carefully optimized
3. Material Compatibility
Common materials include:
316L stainless steel
Nickel alloys (e.g., Hastelloy, Inconel) for higher temperature or aggressive conditions
Copper generally avoided on hydrogen-wetted parts in fuel cell systems
4. Cleanliness & Purity
Oil-free, grease-free fabrication
Internal surfaces cleaned for hydrogen service
No zinc, cadmium, or hydrogen-reactive coatings
Deionized (DI) water – most common in fuel cell cooling loops
Water–glycol mixtures – freeze protection for outdoor or mobile systems
Cooling-side materials must be compatible with DI water to prevent ion contamination.
Hydrogen coolers for fuel cells are often designed to meet:
ASME pressure vessel or heat exchanger codes (where applicable)
Hydrogen safety standards (system-level compliance)
OEM-specific fuel cell cleanliness and leak rate requirements
Pressure testing + helium mass spectrometer leak testing
Stable fuel cell stack temperature
Improved hydrogen utilization efficiency
Reduced degradation of membranes and catalysts
Enhanced system safety and reliability
Longer service life of recirculation components
Stationary fuel cell power systems
Fuel cell CHP (combined heat & power) units
Marine fuel cell systems
Backup and emergency power fuel cells
Industrial hydrogen-based energy systems
