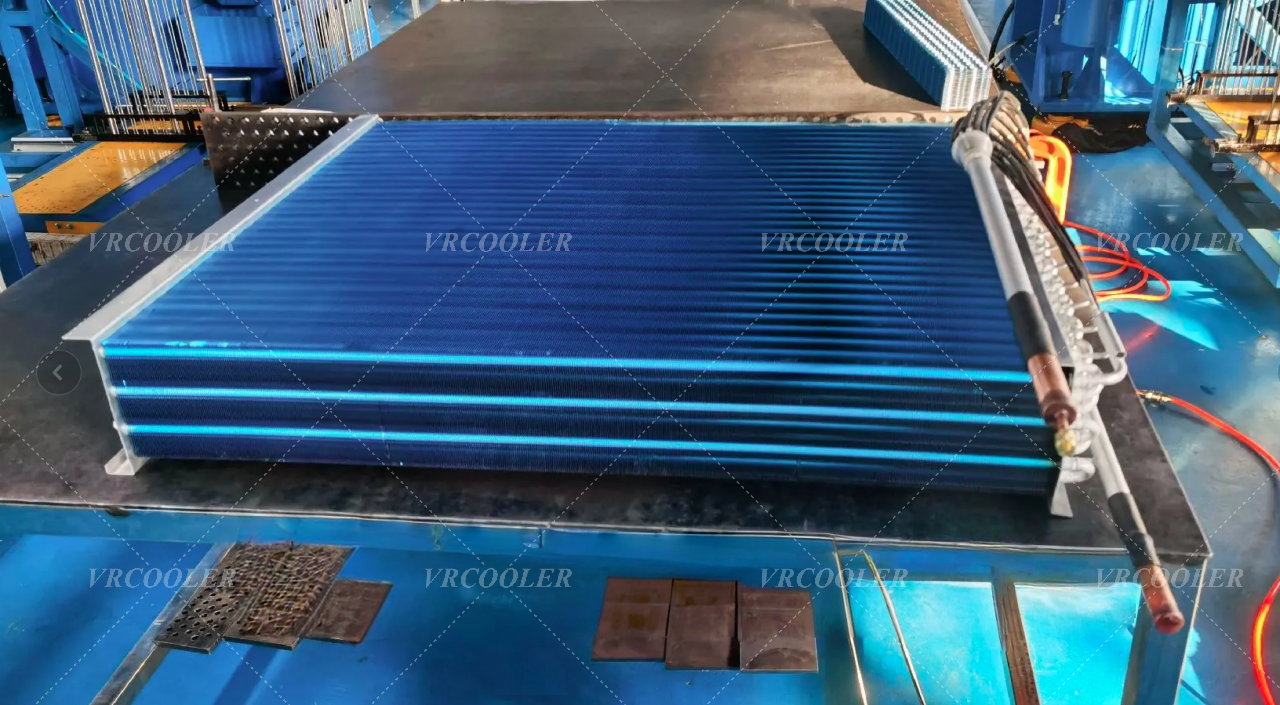

An aluminum evaporator coil is a core heat exchange component in an air-source heat pump water heater (ASHPWH). It absorbs low-grade thermal energy from ambient air and transfers it to the refrigerant, enabling efficient hot water production with low energy consumption and reduced operating costs.
Role of the Evaporator Coil in ASHP Water Heaters
In an air-source heat pump water heater, the evaporator coil:
Draws heat from outdoor or indoor ambient air
Evaporates the refrigerant at low temperature and pressure
Enables the compressor to upgrade low-temperature heat into usable hot water energy
The efficiency of the evaporator coil directly affects the system COP (Coefficient of Performance).
Why Aluminum Evaporator Coils?
Aluminum is increasingly preferred for modern ASHP water heaters due to:
Excellent heat transfer efficiency with optimized fin and tube geometry
Lightweight construction, reducing overall unit weight
Superior corrosion resistance compared with bare copper in humid or coastal environments
High formability, allowing compact and high-density coil designs
Cost stability, reducing exposure to copper price fluctuations
Typical Design Characteristics
An aluminum evaporator coil for air-source heat pump water heaters typically features:
Multi-row aluminum tube-fin or microchannel structure
Optimized fin spacing for frosting and defrosting performance
Enhanced surface design to improve air-side heat transfer
Hydrophilic or anti-corrosion fin coatings (optional)
The design ensures stable operation across a wide ambient temperature range.
Operating Conditions
Ambient air temperature: from low-temperature heating conditions to high-temperature summer operation
Refrigerants: R134a, R410A, R32, R290 (propane), or other low-GWP refrigerants
Application: Domestic hot water and commercial hot water systems
The aluminum evaporator coil supports efficient heat absorption even in cold climates.
Frosting & Defrosting Performance
For ASHP water heaters, frost resistance is critical. Aluminum evaporator coils are engineered with:
Optimized fin pitch to delay frost formation
Uniform refrigerant distribution to avoid local cold spots
Smooth surface coatings to improve defrost efficiency
This results in shorter defrost cycles and higher seasonal efficiency.
Manufacturing & Quality Control
High-quality aluminum evaporator coils are produced with:
Precision tube forming and fin stamping
Controlled brazing or mechanical expansion processes
Pressure testing and leak detection
Dimensional inspection to ensure perfect system integration
Conclusion
An aluminum evaporator coil for an air-source heat pump water heater offers a balanced combination of high efficiency, corrosion resistance, lightweight design, and long service life. With proper engineering and surface treatment, it plays a critical role in delivering reliable, energy-efficient hot water while supporting the trend toward low-carbon and sustainable heating solutions.
