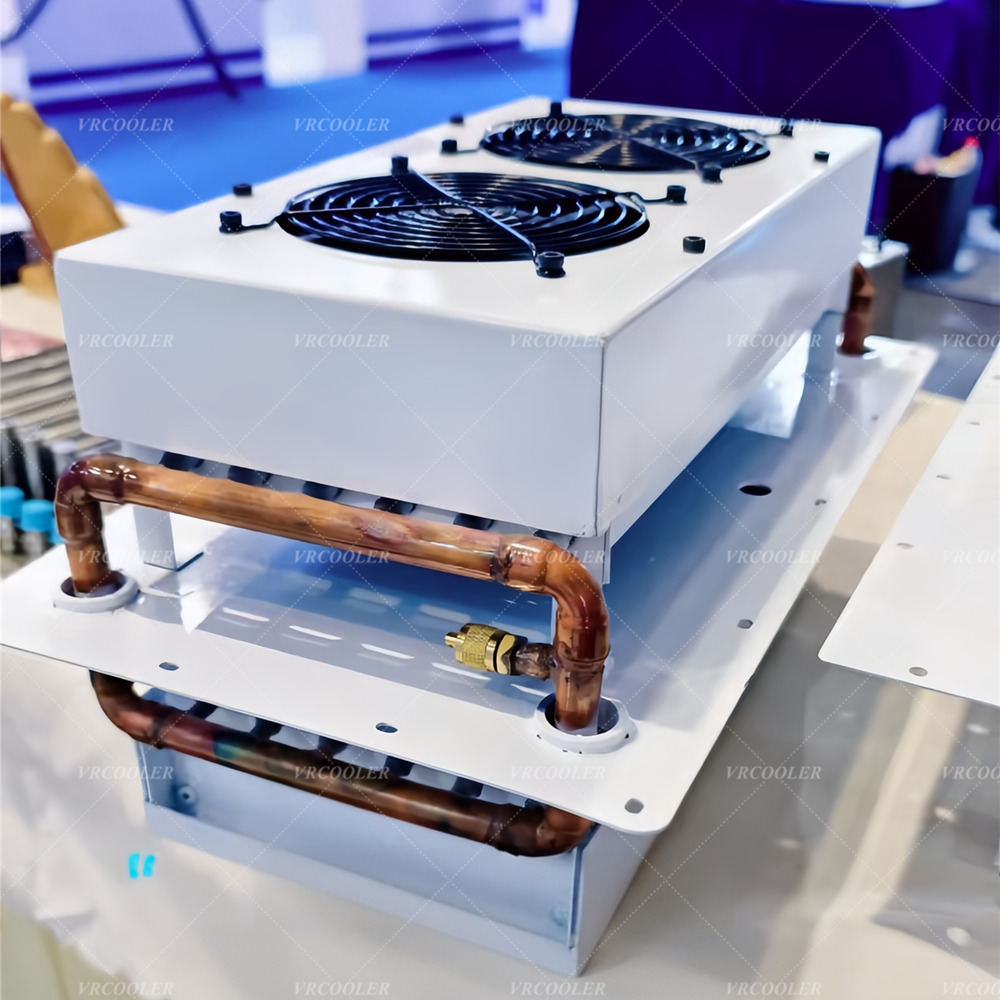

Top‑mounted Heat Pipe System Cabinet Heat Sink for Small Electrical Cabinets

Our top‑mounted heat pipe system cabinet heat sink is built to solve real‑world thermal issues for compact electrical enclosures. Many small electrical cabinets face common troubles: limited internal space, hot air accumulating at the upper section, and poor air circulation around locally high‑heat‑generating electronic components. This heat sink is well‑adapted to such working conditions for on‑site cabinet cooling.

Adopting a loop single‑circuit heat pipe system, this cabinet heat sink uses a top‑mounted installation structure. It fits inside the electrical cabinet with small occupied volume. Both unit housing and mounting parts are finished with waterproof and drainage treatment to cope with harsh cabinet surroundings.

For internal air flow arrangement, it applies high‑air‑volume & small‑temperature‑difference total sensible heat exchange mode. No condensed water will be generated during operation, which keeps the whole cooling system safe and stable with very low failure rate. The compact heat exchange structure supports heat dissipation for high heat‑load electrical cabinets.

The cooling fan comes with IP65 waterproof rating, suitable for dusty or moisture‑prone application environments. Front and rear panels are detachable, making regular dust cleaning and daily maintenance easy for field operators.

This top‑mounted heat pipe cabinet heat sink can be widely used for industrial electrical cabinet cooling, outdoor cabinet thermal management, control enclosure heat dissipation and other cabinet cooling projects. We support reference‑based dimension solution according to customers’ existing cabinet size requirements.
