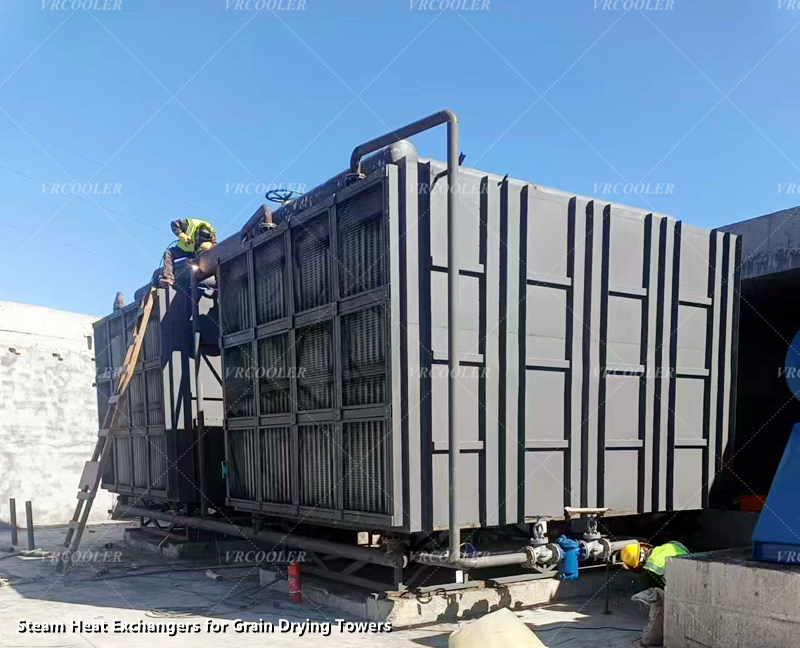

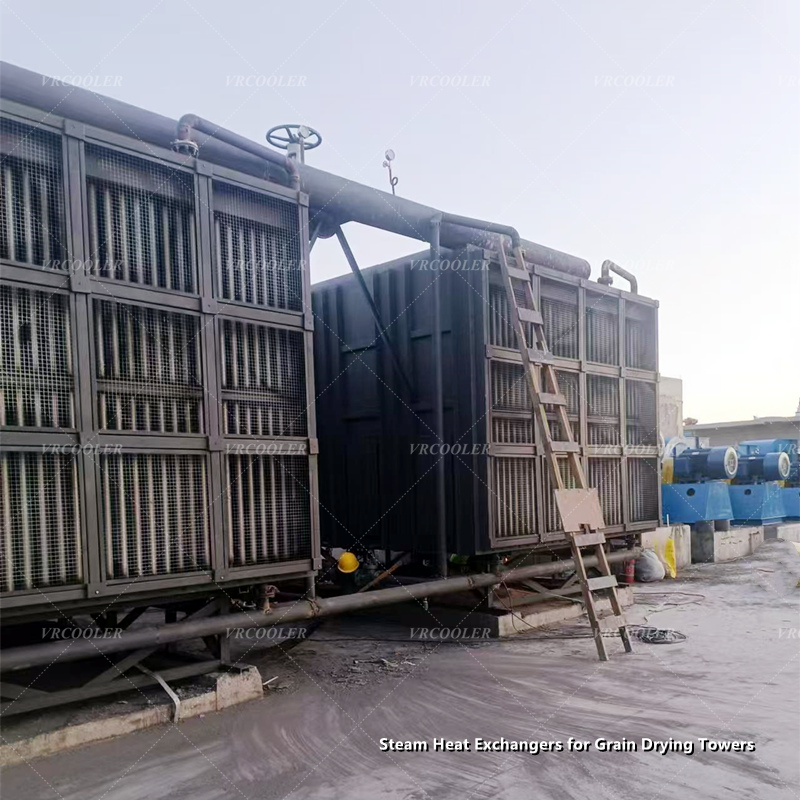

Steam Heat Exchangers for Grain Drying Towers

Steam Heat Exchangers for Grain Drying Towers

Design Features

Finned Tubes:

The heat exchanger consists of tubes with attached fins that increase the surface area for heat transfer. This design allows for more efficient heat exchange between the steam and the air or grain.

Material:

Typically made from corrosion-resistant materials, such as stainless steel or carbon steel, to withstand the high-temperature steam and environmental conditions.

Configuration:

Finned tubes can be arranged in various configurations, such as vertical or horizontal, depending on the design of the grain drying tower and the required heat transfer efficiency.

Functionality

Heat Transfer Process:

Steam flows through the inner tubes, transferring heat to the fins. The fins then transfer this heat to the air or grain passing over them.

This process effectively raises the temperature of the air, which is then used to dry the grain efficiently.

Efficiency:

The finned design enhances heat transfer rates, allowing for rapid heating of the air, which is critical in minimizing drying times and improving energy efficiency.

Applications

Grain Drying:

Predominantly used in agricultural settings, these heat exchangers help in drying various grains, such as corn, wheat, and rice, reducing moisture content to prevent spoilage.

Industrial Processes:

Beyond grain drying, they can also be used in other industrial heating applications where steam heat transfer is required.
