In industrial carbon dioxide (CO₂) removal systems, stable and efficient thermal regeneration is essential to ensure continuous operation and high separation efficiency. The shell and tube heat exchanger reboiler plays a critical role in solvent regeneration by supplying controlled heat to low-boiling-point rich solutions, enabling effective CO₂ desorption and system reliability.
In a typical CO₂ removal or gas purification process, CO₂ is absorbed from process gas using a chemical or physical solvent. The solvent becomes CO₂-rich and must be regenerated before reuse.
The shell and tube reboiler provides the required thermal energy to heat the CO₂-rich solution, vaporizing low-boiling components and releasing absorbed CO₂, which is then separated and discharged from the system.
The regenerated lean solution is returned to the absorber column, completing a closed-loop cycle with high efficiency and low solvent loss.
The reboiler uses an external heat source—commonly saturated steam at approximately 150 °C—as the heating medium. Steam flows through the tube side, while the CO₂-rich solution circulates on the shell side. Heat transfer raises the solution temperature to its boiling point (around 114 °C), causing partial vaporization.
The generated vapor (approximately 142 °C) flows back into the distillation or regeneration column, participating in mass transfer and separation, while the remaining liquid exits as a low-volatile bottom product. This controlled boiling process ensures stable regeneration performance and consistent CO₂ removal efficiency.
The shell and tube configuration is widely adopted in CO₂ removal systems due to its robustness and operational flexibility. Key advantages include:
High thermal efficiency under continuous duty
Ability to handle phase change (boiling) processes
Excellent pressure and temperature resistance
Stable operation with fluctuating process loads
Easy maintenance and long service life

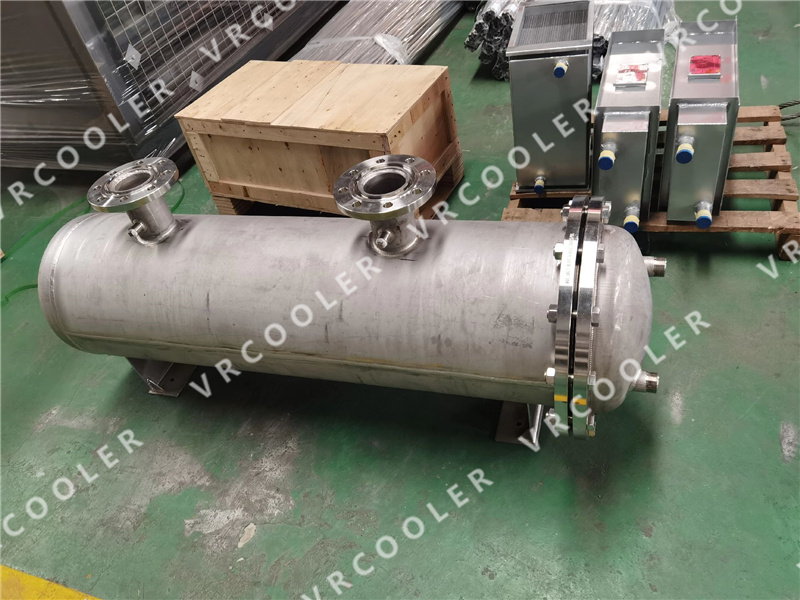

The horizontal arrangement further improves liquid distribution and boiling stability, which is critical for reboiler applications.
To ensure durability and corrosion resistance in chemically active environments, material selection is optimized for both performance and cost:
Shell: Carbon steel, providing high mechanical strength and pressure resistance
Heat transfer tubes and tube sheets: Stainless steel 304, offering excellent corrosion resistance and compatibility with CO₂-rich solvents and steam
This combination ensures long-term reliability while meeting industrial safety and design standards.
This shell and tube reboiler is widely used in:
Natural gas CO₂ removal units
Syngas and hydrogen purification systems
Chemical and petrochemical CO₂ separation processes
Industrial gas treatment and carbon capture systems
Its ability to deliver stable boiling and efficient heat transfer makes it a core component in solvent regeneration sections of CO₂ removal plants.
Efficient regeneration of CO₂-rich solvents
Stable vapor generation for distillation and separation
Robust shell and tube structure for continuous operation
Optimized material selection for corrosion resistance
Suitable for customized process conditions and capacities
The shell and tube heat exchanger reboiler is a critical thermal component in carbon dioxide removal systems, ensuring efficient solvent regeneration and reliable CO₂ separation. With its proven design, high thermal performance, and durable construction, it provides a dependable solution for industrial gas purification and carbon capture applications requiring long-term, stable operation.
