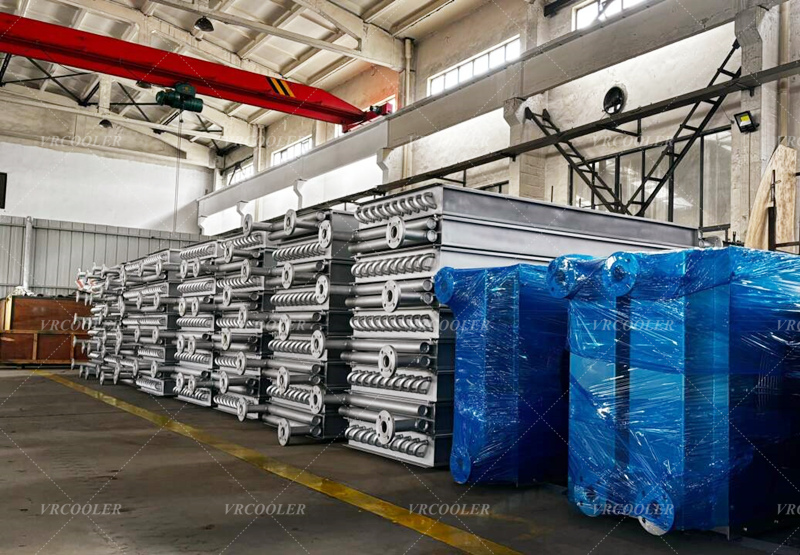

SS304L Finned Tube Heat Exchanger Coil

Finned Tube Design

Tube and Fin Configuration: Fins are attached to the outside of the stainless steel tube, significantly increasing the surface area for heat transfer. The design of the fins (e.g., height, spacing, and type) can be adjusted depending on the specific application requirements.

Fin Materials: In SS304L finned tube heat exchangers, both the fins and tubes are usually made of the same material (SS304L) to ensure uniform corrosion resistance and thermal performance. In some cases, fins can be made of other materials (like aluminum) to reduce costs while still maintaining heat transfer efficiency.

Types of Fins:

Extruded Fins: These fins are created by extruding the material and form an integral part of the tube, providing excellent thermal contact.

Wrap-on Fins: The fins are wrapped tightly around the tube. While this method is simpler and cost-effective, it may not provide as good thermal contact as extruded fins.

Embedded Fins: These are embedded into the tube, which creates a stronger bond and better heat transfer.

Applications of SS304L Finned Tube Heat Exchangers

HVAC Systems: SS304L heat exchangers are commonly used in heating, ventilation, and air conditioning (HVAC) systems, especially in environments where corrosion resistance is crucial (e.g., coastal areas or chemically aggressive atmospheres).

Industrial Heat Exchangers: SS304L is used in industries like chemical processing, petrochemicals, refineries, and power generation due to its ability to handle aggressive fluids and withstand high temperatures.

Food and Beverage: SS304L is used in food processing equipment and refrigeration systems where hygiene is important, as well as in pasteurizers and heat exchangers for beverage production.

Marine Environments: The material’s corrosion resistance makes it ideal for heat exchangers used in shipbuilding, marine cooling systems, or offshore platforms.

Power Plants: SS304L heat exchangers are used in condensers and cooling systems in power plants to manage steam and hot water flows while resisting corrosion.

Advantages of SS304L Finned Tube Heat Exchangers

Corrosion Resistance: The use of SS304L ensures excellent resistance to rust, oxidation, and pitting, making these heat exchangers suitable for environments with high humidity, chemical exposure, or saltwater.

Durability: SS304L offers strength, durability, and resistance to mechanical stress and thermal expansion. This makes it suitable for applications with high-pressure or fluctuating temperature conditions.

Low Maintenance: SS304L finned tube heat exchangers require less frequent cleaning and are resistant to fouling and scaling, which can occur in more reactive materials.

Versatility: SS304L’s compatibility with a variety of fluids, including steam, water, oils, and certain chemicals, allows these heat exchangers to be used in a wide range of applications.

Thermal Efficiency: The finned design provides increased surface area, which improves heat transfer performance, allowing for compact and efficient heat exchangers even in smaller spaces.
