Home / News / Replacement ingersoll rand centac cooler(Second Stage for C 950 and 2ACII 50 MX 3) and already install in unit

Replacement ingersoll rand centac cooler(Second Stage for C 950 and 2ACII 50 MX 3) and already install in unit

Views: 33     Author: Site Editor     Publish Time: 2023-02-09      Origin: Site


We are glad to have the opportunity to help our Client with their equipment issue. It is great to hear that the replacement part (ingersoll rand centac cooler Second Stage for C 950 and 2ACII 50 MX 3) is working well and we are happy that we can serve customers in a time of need.


Vrcooler help our clent design according to the working conditions by replacing the old cooler with a more efficient one.
We can help you replace your old cooler according to the size or drawing of your air compressor cooler.

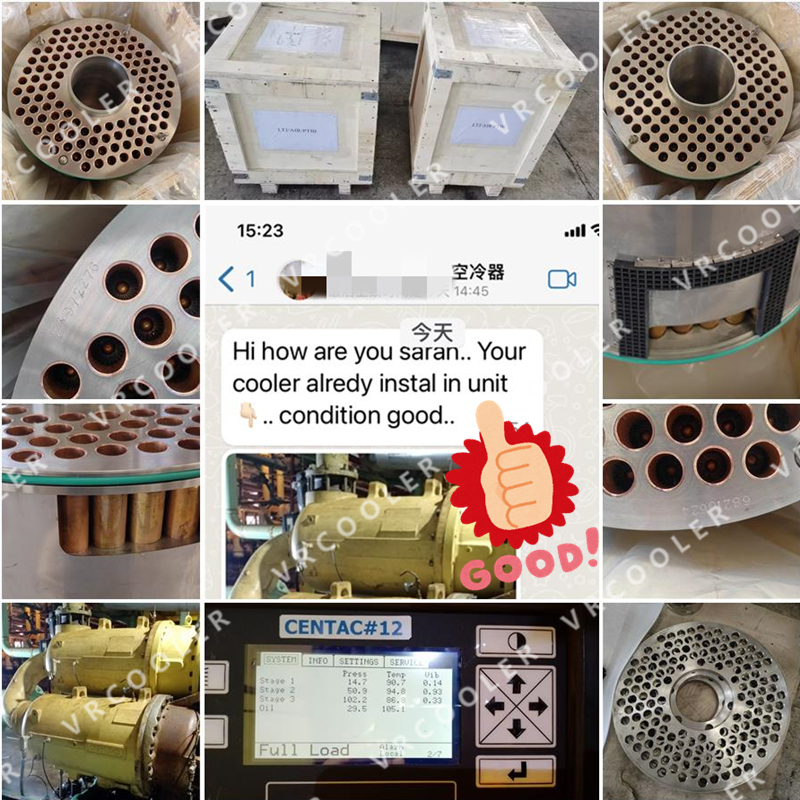

Good Comments for Ingersoll Centac Cooler


Centac Cooler we can Provide as below:

0C1 Stages 1-3, 7X12626 / 8X1148 / 22420186 / 8X486 / 67889261 / 22420186 / C1737
1C1 Stages 1-4, 7X2622 / 8X1122 / 8X520 / 67885681 / 42917476 / 42917476 / 22420202 / C1764
2C1 Stages 1-4, 7X12624 / 8X1174 / 22245633 / 67889303 / 8X10986 / 8X538 / C1736
3C1 Stages 1-4, 7X12726 / 8X5070 / 22205520 / 8X1339 / 67895441 / 2322632 / C1686
4C1 C110 / C125 Stages 1-4, 7X12728 / 67895524 / 8X1341 / 8X542 /23996267 / 22377006 / C1759
4C1 C150 Stages 1-4, 7X12730/1.500.295-12 / 8X1403 / 8X298 / 67896894 / 8X1520 / C1778
CENTAC II Frame
CV0 / 0CV Stage-1 7X12151 / 67814145 /22460620 / 141127 /C1746
CV0 / 0CV Stage-2 7X12251 / 67814806 / 22463475 / 141101/ C1747
CV1 / 1CV / CV1B / 1BCV Stage-1 7X14691 / 7X12982 / 8X11439 / 22444301 / 22480016 / 68132844 / Z17103
CV1 / 1CV / CV1B / 1BCV Stage-2 7X14694 / 7X12929 / 8X11440 / 22429690 / 22459937 / 22480255 / 68132703 / 23976434 / 20029895Z17102
CV1A / 1ACV Stage-1 7X13019 / 7X11956 22429690 / 67949537 / 000978940 / C1664
CV1A / 1ACV Stage-2 7X13005 / 7X11957 / 7X2939 / 22420002 / 67949529 / 000978957 / 4.506.290 / 43118702 / C1665
1CII Stage-1 7X12775 / 7X2445 / 67897389 / C1632
1CII Stage-2 7X12792 / 7X2389 / 67906453 / C1633
2CII Stage-1 7X12818 / 7X2444 / C1756 / C1756
2CII Stage-2 7X12775 / 7X2445 / 67897389 / C1632
CV2 / 2CV / C700 Stage-1 7X11845 / 7X14889 / 68149954 / 232218126 / 67767632 / C1748
CV2 / 2CV / C700 Stage-2 7X11846 / 7X14902 / 68149921 / 23969462 / 23218164 / 2221880 / 67767624 / C1749
CV2 / 2CV / C700 Stage-3 7X11847 / 7X14905 / 68149897 / 8X10632 / 23937261 / 23218142 / 68149897 / C1750
2ACII / C950 Stage-1 7X12113 / 7X14883 (SS Heads, Tube & Shroud) / 68150010 / 8X10632 / 23866387 / 68165513 / 7X14948 / 67791947 / C1752
2ACII / C950 Stage-1 (SPECIAL OVER 1250HP) 68150010
2ACII / C950 Stage-2 7X12114 / 7X14886 (SS Heads, Tube & Shroud) / 68149988 / 7X13220 / 68165505 / 67791954 / C1753
2ACII / C950 Stage-3 7X15035 / 68183144
3ACII / 3CII Stage-1 (Old Style-Long & Narrow O.D. Center Tube Size Dia. 8.858'') 7X14236 / 8X4705
3ACII / 3CII Stage-1 (STD New Style-Short & Larger O.D. Center Tube Size Dia. 11.750'') 7X12811 / 8X10764 / 8X2979 / 22212144 / 7X15260 / 8X101521 / 67906511 / 22212144 / 94528478 / C1705
3ACII / 3CII Stage-2 7X12834 / 8X2395 / 22218093 / 7X15261 / 67909572 / 8X3545 / 22218093 / C1706
3ACII / 3CII Stage-3 7X12836 / 8X2396 / 7X15262 / 22222269 / 8X3546 / 67909465 / 8X10153 / C1707
5CII Stage-1 7X12858 / 7X4298 / 7X15408 / 94975406 / 68214576 / Z1780
5CII Stage-2 7X12860 / 7X4141 / 7X15413 / 94975463 / 68214519 / Z1781
5CII Stage-3 7X12862 / 7X15418 / 8X4607 / 94973914 / Z1782
