Rear Door Heat Exchanger for High Density Data Centers How It Improves Rack Cooling Efficiency

As data centers continue to increase rack power density, traditional room-level cooling methods are often no longer enough. A rear door heat exchanger has become an effective rack cooling solution for facilities that need to remove large amounts of heat directly at the source. Installed on the back of a server cabinet, this system captures hot exhaust air before it enters the data hall, helping operators improve thermal control without a full redesign of the cooling infrastructure.

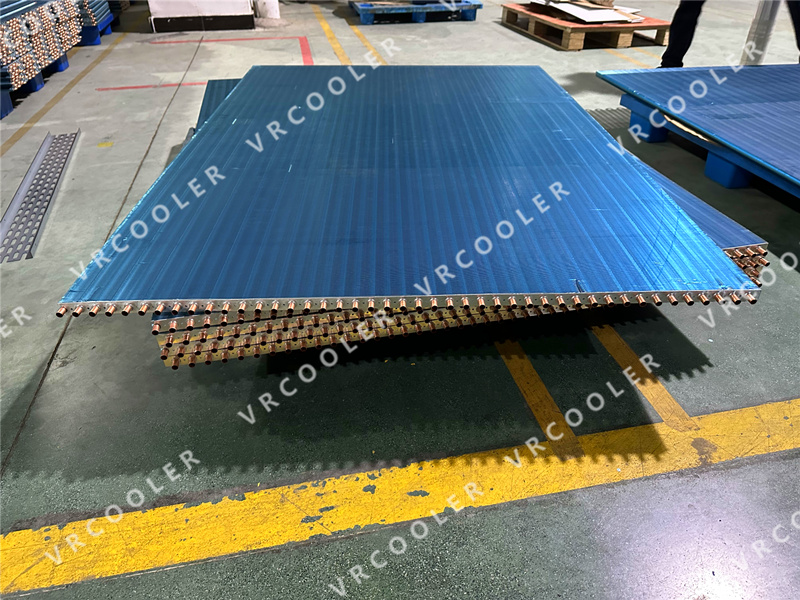

A rear door heat exchanger works by placing a chilled water or facility water coil inside the rear door of the server rack. As hot air exits the IT equipment, it passes through the coil and transfers its heat to the circulating fluid. The cooled air then returns to the room at a much lower temperature. This approach significantly reduces hot aisle temperatures and helps stabilize the environment around high-density cabinets.

One of the biggest advantages of a liquid cooled rack door is its ability to support high heat loads in a compact footprint. In many modern computing environments, rack power can exceed 20 kW, 30 kW, or even higher. Standard perimeter cooling systems may struggle to handle this concentrated load efficiently. By removing heat directly at the rack, a server rack heat removal system can increase cooling effectiveness while reducing the burden on CRAC or CRAH units.

Another important benefit is retrofit flexibility. Many facilities want to increase capacity without building a new white space or making major structural changes. A rear door heat exchanger can often be integrated with existing racks or deployed on selected high-density cabinets only. This makes it a practical option for data centers adopting AI servers, GPU clusters, HPC applications, and blade systems where localized heat concentration becomes a serious challenge.

Energy efficiency is also a strong reason to choose this type of cooling. Because the heat is captured close to the source, airflow management becomes easier and hot air recirculation is reduced. In some designs, the system may operate with passive airflow, while higher-capacity models use fans to boost air movement across the coil. With proper water temperature design, the system can also support economizer operation or work with a CDU, further improving overall plant efficiency.

From an operational perspective, rear door systems help maintain more uniform inlet temperatures for server equipment. This reduces the risk of thermal hotspots, improves equipment reliability, and supports predictable performance in mission-critical applications. Facilities can also scale more gradually by adding cooling where it is needed most, instead of oversizing the entire room cooling system.

We can provide customized rear door heat exchanger solutions for different rack dimensions, cooling capacities, water parameters, and installation requirements. Whether the project involves a new high-density room or the upgrade of an existing server area, a properly designed rack door cooling system can deliver targeted heat removal, improved PUE, and better use of valuable data center floor space.
