Quick-freeze Evaporators Completed and Ready for Shipment

Views: 1     Author: Site Editor     Publish Time: 2023-08-02      Origin: Site

Quick-freeze Evaporators Completed and Ready for Shipment

Quick-freeze Evaporators ShipmentQuick-freeze Evaporators Shipment 1Quick-freeze Evaporators Shipment 2

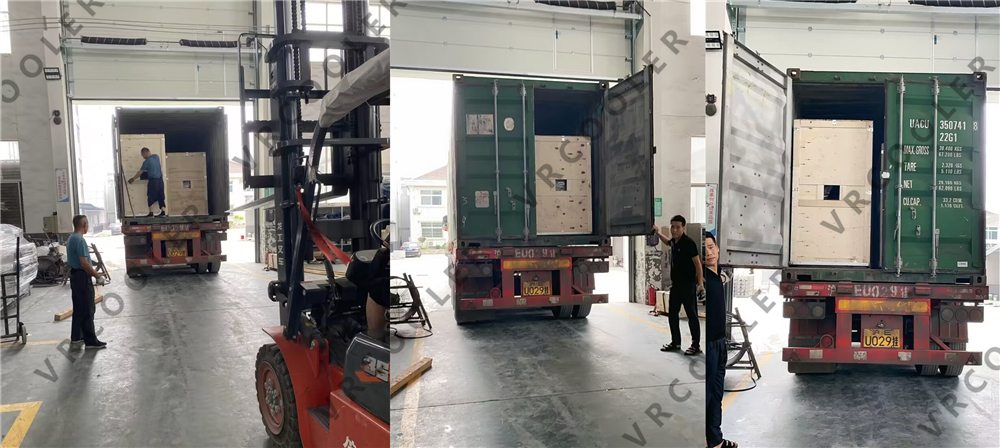

iqf coil Shipment

Quick-freeze evaporators are a type of heat exchanger commonly used in refrigeration systems to rapidly freeze or chill food products. These evaporators play a crucial role in maintaining low temperatures inside a refrigerated space, such as a freezer or walk-in cooler. The primary purpose of a quick-freeze evaporator is to remove heat from the environment and transfer it outside the refrigerated area.

Here's how a quick-freeze evaporator typically works:

1. Evaporator Coil: The quick-freeze evaporator consists of a coil or series of coils made of copper or aluminum tubes. These tubes are usually embedded in or attached to the walls of the freezer or chilling unit.

2. Refrigerant Circulation: A refrigerant, such as Freon (R-134a) or ammonia (NH3), circulates through the coils of the evaporator. The refrigerant is at low pressure and temperature in its liquid state when it enters the evaporator.

3. Heat Transfer: As warm air from the refrigerated space enters the evaporator, it comes into contact with the cold refrigerant inside the coils. Heat from the air is transferred to the refrigerant, causing the refrigerant to evaporate and turn into a gas.

4. Rapid Cooling: The rapid evaporation of the refrigerant absorbs a significant amount of heat from the surrounding air, leading to a quick decrease in temperature within the refrigerated space. This process results in the rapid freezing or chilling of the food products or items stored in the freezer.

5. Compressor and Condenser: After the refrigerant evaporates inside the quick-freeze evaporator, it is then compressed by the system's compressor, raising its temperature and pressure. The high-pressure, high-temperature refrigerant is then condensed back into a liquid state by the condenser located outside the refrigerated area.

6. Continuous Cycle: The refrigerant, now in its liquid state, flows back into the quick-freeze evaporator to repeat the cooling process continuously. This cycle ensures that the desired low temperatures are consistently maintained.

Quick-freeze evaporators are essential in various industries, such as food processing, cold storage, and ice production, where rapid freezing and preservation of products are crucial. The efficiency of the evaporator, as well as the refrigeration system as a whole, greatly affects the speed and quality of freezing or chilling operations.
