Share production photos of a drawing-customized finned-tube heat exchanger project. The tube expansion process has now been completed, marking an important stage in the manufacturing of the customized heat exchanger.
Manufactured According to Customer Drawings
This heat exchanger is customized according to the customer’s drawings and technical requirements. Before production, CST’s engineering team reviewed the product structure, overall dimensions, tube arrangement, fin configuration, connection locations, and assembly requirements to ensure that the manufacturing process followed the approved technical documents.
The finished product consists of heat transfer tubes, fins, and related components. The exact tube diameter, fin spacing, number of rows, circuit arrangement, connection dimensions, and thermal performance are subject to the customer-approved drawings and technical specifications.
Tube Expansion Process Completed
Tube expansion is an important manufacturing process for heat exchangers. During this process, the tubes are expanded to establish close contact between the tubes and the fins. Proper tube-to-fin contact supports efficient heat transfer and helps maintain the structural integrity of the coil assembly.
For this project, CST has completed the tube expansion process. The production team will continue with the remaining manufacturing and inspection steps according to the project requirements, including connection work, assembly checks, dimensional verification, and other applicable quality inspections.
Production Photos Show Project Progress

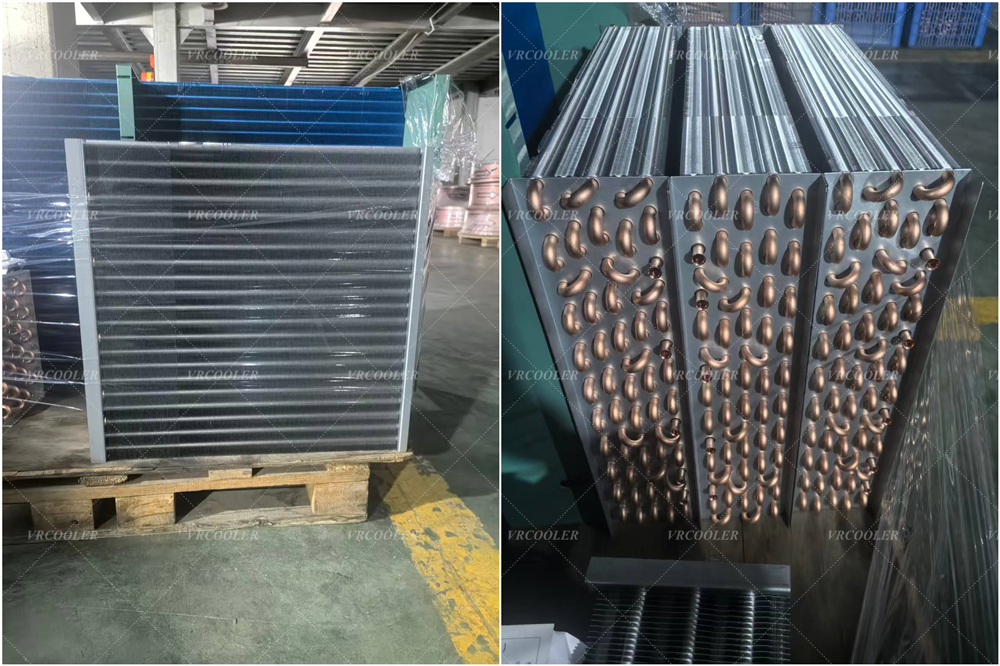

The production photos document the current manufacturing progress of the drawing-customized tube heat exchanger. They provide a clear view of the product structure and the completed tube expansion stage before the next production steps.
CST manages each customized project according to the customer’s drawings, technical parameters, and application requirements. This process supports product consistency and helps ensure that the finished heat exchanger is suitable for integration into the customer’s equipment or system.
Customized Heat Exchanger Manufacturing by CST
CST (VRCOOLERTECH) specializes in the design and manufacture of heat exchangers, refrigeration equipment, and air cooling equipment. The company provides customized solutions for commercial HVAC, industrial cooling, air handling, refrigeration, compressor cooling, generator cooling, and other heat transfer applications.
If you need a fin-tube heat exchanger customized according to drawings, please contact CST and send us your product drawings, technical specifications, and application conditions. Our team will provide professional engineering support and a suitable manufacturing solution.
