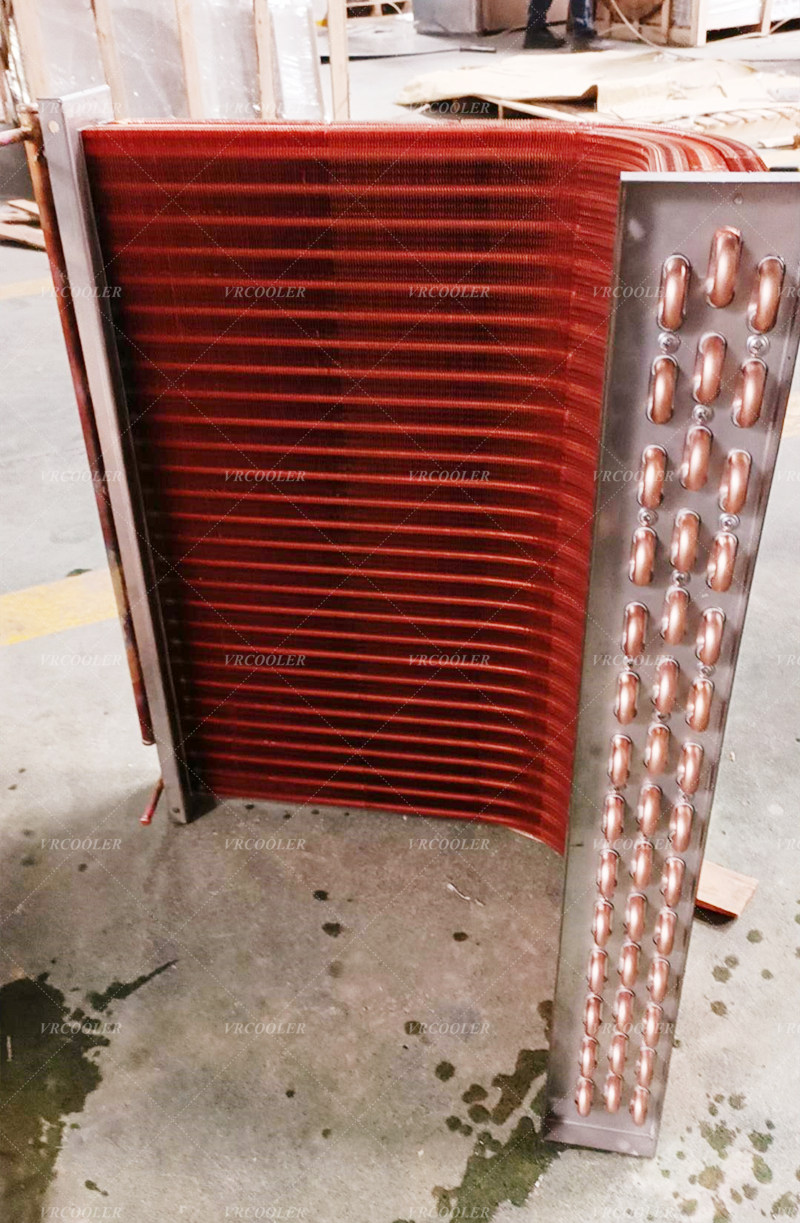

L Shape Evaporator For Air Source Heat Pump Water Heater

L Shape Evaporator For Air Source Heat Pump Water Heater

In the air-source heat pump water heater, the low-pressure liquid refrigerant flows into the L-shaped evaporator and absorbs the heat in the air brought by the fan to vaporize. The air releases heat in this process, and the refrigerant changes from a liquid state to a gaseous state, completing the heat absorption process. Then, the gaseous refrigerant is compressed by the compressor, and then flows to the condenser to transfer heat to the water, so as to heat the water.

Advantages

High heat exchange efficiency: The L-shaped design effectively extends the flow path of the refrigerant in the pipeline, allowing the refrigerant to have more contact time with the air, so that the heat exchange is more sufficient. The heat exchange efficiency is nearly 30% higher than that of the traditional circular tube evaporator.

Space-saving: The L-shaped structure can be better adapted to the installation space of the equipment, especially in some places where the space is limited, which can make full use of the corner space and improve the space utilization rate.

Wide range of applications: It is not only applicable to air-source heat pump water heaters, but also suitable for various central air-conditioning systems, cold storage equipment, refrigerators, freezers, chillers and other low-temperature refrigeration scenarios.

Installation and Maintenance

Convenient installation: The L-shaped evaporator supports a variety of installation methods, such as horizontal installation or vertical installation, and is equipped with complete connectors and brackets, which can be used out of the box without additional purchase, which is very convenient.

Easy maintenance: Since the evaporator is of finned structure, it is easy to accumulate dust and impurities, which affects the heat exchange effect. Regular cleaning is required. It can be cleaned with a soft or non-sharp tool in combination with a special evaporator cleaner.
