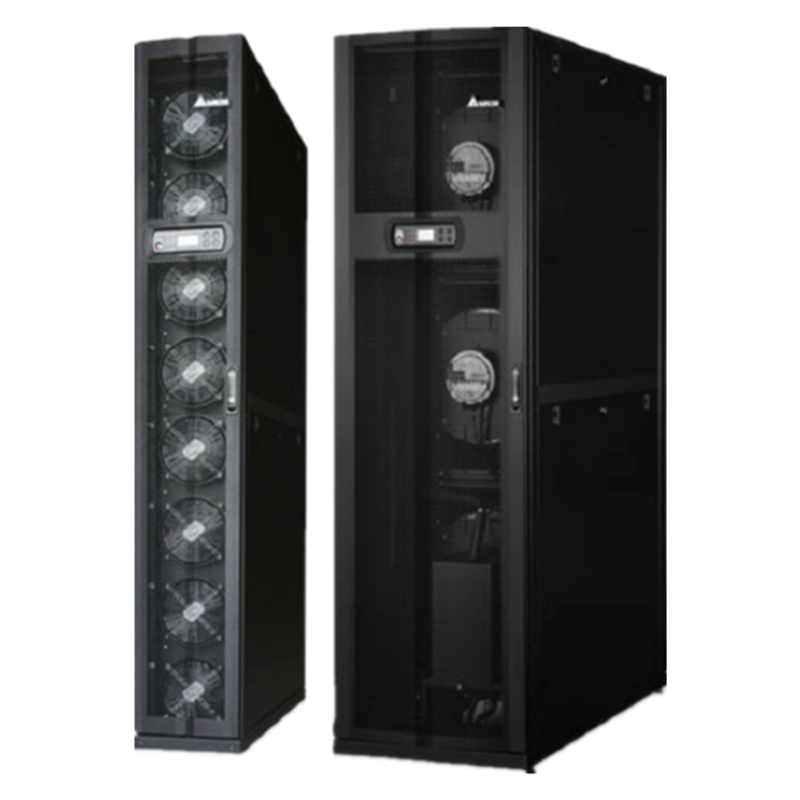

In‑Row Precision Air Conditioner Installation Guide for Data Center Projects

In‑row precision air conditioner is widely used in high‑density data center cooling, placed between server racks to deliver close‑range cooling and reduce hot‑spot risks. Correct installation directly affects the performance and service life of in‑row CRAC unit, and many on‑site failures come from non‑standard mounting and piping work. Below we share practical installation guidance for contractors, system integrators and end‑users working on data center cooling projects.

Pre‑Installation Site Check

Before receiving the in‑row precision AC unit, complete site preparation work. Confirm the floor loading capacity, flatness and working space for maintenance. Leave enough service clearance on sides and rear of the unit for filter replacement, piping inspection and component repair. Check existing infrastructure including chilled‑water pipeline layout, three‑phase power supply, grounding system and drain path. Confirm heat load calculation matches the selected in‑row cooling capacity, reserve proper safety margin for future IT equipment upgrade. Inspect goods upon arrival, check cabinet deformation, coil fin damage and loose fittings caused during transportation.

Unit Positioning & Leveling

Move the in‑row precision air conditioner to target position between server racks. Align unit front face flush with adjacent rack front for better hot‑cold aisle airflow containment. Adjust leveling feet to keep whole cabinet horizontal; tilted mounting will cause bad condensate drainage, internal air pocket and extra running vibration. Lock casters if equipped. Install anti‑vibration pads at base to cut noise transmission. Anchor the unit according to local building or seismic requirements when necessary. Use baying brackets to fasten the unit with nearby server racks for stable assembly.

Mechanical & Piping Connection

Most in‑row CRAC units support chilled‑water cooling or DX direct expansion cooling solutions.

For chilled‑water type in‑row precision air conditioner: connect supply and return chilled‑water pipes, install flexible connectors to absorb unit vibration. Fit ball valves on both sides for easy isolation during maintenance. Apply full closed‑cell thermal insulation on all pipes, valves and joints to avoid surface condensation in humid environment. Mount condensate drain pipeline with P‑trap structure, test drain function to prevent condensate overflow risk.

For DX in‑row cooling unit: handle refrigerant piping strictly following manufacturer specification, complete nitrogen‑brazing, pressure holding leak test before charging refrigerant. Install outdoor condenser in well‑ventilated area away from dust and direct sunlight.

Electrical & Communication Setup

All electrical connection work shall be completed by qualified technicians. Use dedicated power circuit for the in‑row precision air conditioner, meet voltage and current requirement of cooling unit. Complete reliable equipment grounding. Separate low‑signal sensor cables from high‑power cables to avoid signal interference. Connect temperature‑humidity sensors, leakage detection sensors and BMS communication interface for remote monitoring of in‑row CRAC unit running status.

Commissioning & Post‑Installation Test

After mechanical and electrical work finished, do not run the unit immediately. Double‑check all pipe joints for leakage, filter installation status and airflow path without blockage. Power on the unit, set target supply air temperature and humidity for data center environment. Keep continuous running for at least 30 minutes, check controller error codes, measure supply‑return air temperature difference, listen for abnormal noise and purge air inside water loop if needed. Record commissioning data for future maintenance reference.

Common Installation Mistakes to Avoid

- Insufficient maintenance clearance leads to hard repair work

- Poor leveling causing condensate drain blockage

- Missing pipe insulation resulting in heavy condensation

- Wrong airflow direction destroying hot‑aisle cold‑aisle containment

- Unqualified BMS sensor installation leading to inaccurate temperature control

Proper installation helps your in‑row precision air conditioner achieve designed cooling efficiency, reduce on‑site troubleshooting cost and extend equipment working life. For data center cooling components including heat exchangers matched with in‑row CRAC unit, welcome to contact our team at info@cstheatexchanger.com
