Immersion is the practice of completely submerging or submerging mining equipment in a thermally conductive liquid that is better insulated than ordinary air.
Immersion of powered electronic mining rigs in specially designed liquids such as mineral oil, dielectric oil can better dissipate heat from computer chips that are always hot and hashed.
Vrcooler Provide two solution for our customer.

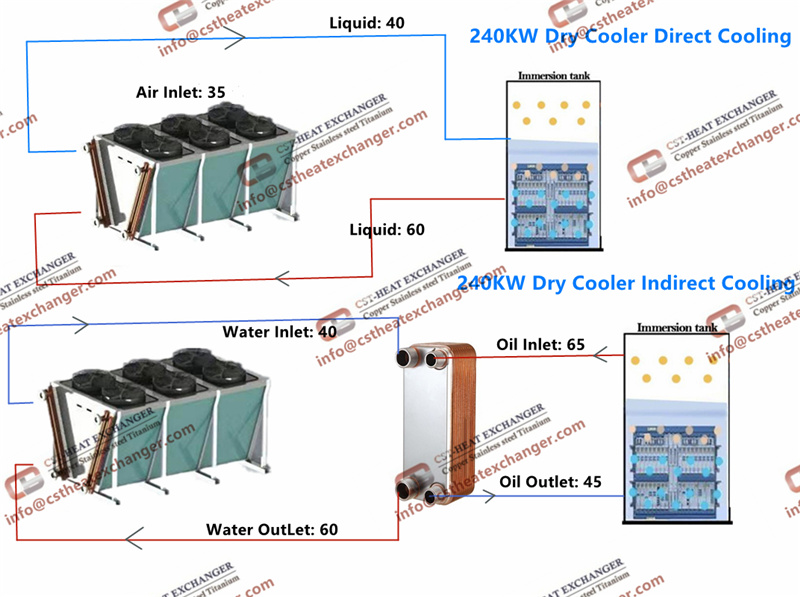

One Immersion Cooling Solution is Dry Cooler direct cooling.
Another Immersion cooling solution is Dry coolers and plate heat exchangers combined with indirect cooling. This is currently the most popular and economical cooling methods.

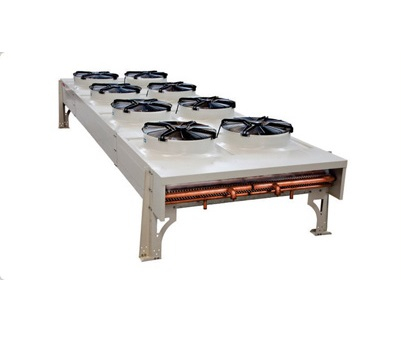

We designed standard dry cooler model for immersion cooling system. From 40KW to 240KW, Fully meet your cooling needs.
| 40KW Dry Cooler Direct Cooling | 40KW Dry Cooler with Plate Heat Exchanger Indirect Cooling | ||
| Capactiy: | 40KW | Capactiy: | 40KW |
| Fluid Temperature(Inlet/Outlet)(℃) | 60/40 | WATER Temperature(Inlet/Outlet)(℃) | 40/60 |
| Air Temperature(Inlet/Outlet)(℃) | 35/46.1 | BC-888 Temperature(Inlet/Outlet)(℃) | 65/45 |
| Power Standard | 220V/1Ph/50Hz | No. of plates | 73 |
| Dimensions | 1687x700x952mm | No. of effective plates | 71 |
| Material: | Copper Tube Aluminum Fin GI Steel powder coating Casing | Plate material | ALLOY 316 |
| Thickness | 0.4mm | ||
| Number of passes | 4 | ||
| 120KW Dry Cooler Direct Cooling | 120KW Dry Cooler with Plate Heat Exchanger Indirect Cooling | ||
| Capactiy: | 120KW | Capactiy: | 120KW |
| Fluid Temperature(Inlet/Outlet)(℃) | 60/40 | WATER Temperature(Inlet/Outlet)(℃) | 40/60 |
| Air Temperature(Inlet/Outlet)(℃) | 35/46.1 | BC-888 Temperature(Inlet/Outlet)(℃) | 65/45 |
| Power Standard | 460V/1Ph/60Hz | No. of plates | 121 |
| Dimensions | 3410x1115x700mm | No. of effective plates | 119 |
| Material: | Copper Tube Aluminum Fin GI Steel powder coating Casing | Number of passes | 4 |
| Extension capacity | 4 | ||
| Plate material | ALLOY 316 | ||
| Thickness(mm) | 0.4 | ||
| 240KW Dry Cooler Direct Cooling | 240KW Dry Cooler with Plate Heat Exchanger Indirect Cooling | ||
| Capactiy: | 240KW | Capactiy: | 240KW |
| Fluid Temperature(Inlet/Outlet)(℃) | 60/40 | WATER Temperature(Inlet/Outlet)(℃) | 40/60 |
| Air Temperature(Inlet/Outlet)(℃) | 35/45.85 | BC-888 Temperature(Inlet/Outlet)(℃) | 65/45 |
| Power Standard | 460V/1Ph/60Hz | ||
| Dimensions | 4165X2100X1710mm | ||
| Material: | Copper Tube Aluminum Fin GI Steel powder coating Casing | ||
