How is the cargo drain cooler sized?

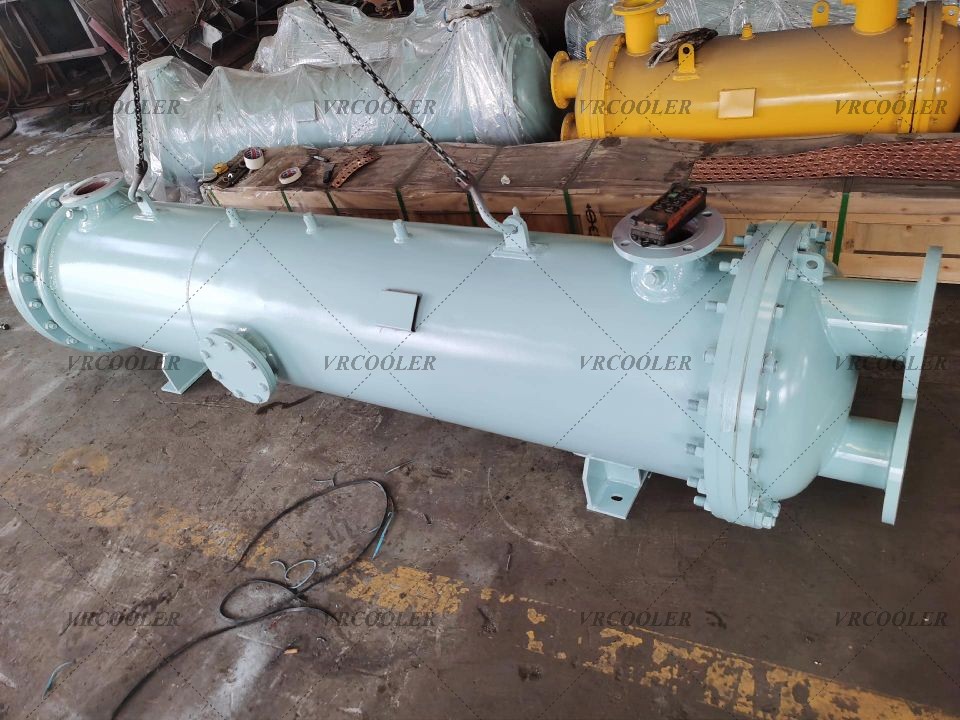

A cargo drain cooler (shell and tube type) is sized through a structured thermal and mechanical design process to ensure safe discharge temperatures, regulatory compliance, and reliable marine operation. The key steps and parameters are outlined below.

1. Cargo Drain Flow Rate

The maximum and minimum cargo drain flow rate are the primary sizing inputs. The cooler must be capable of handling peak drain flow during tank cleaning or cargo discharge operations without exceeding allowable outlet temperatures.

2. Inlet and Outlet Temperature Requirements

Thermal sizing is based on:

• Cargo drain inlet temperature (often elevated after heating or washing)

• Required maximum outlet temperature for safe discharge

• Cooling medium inlet temperature (seawater or fresh water)

These temperatures define the required heat duty.

3. Properties of the Cargo Drain Fluid

Accurate fluid properties are essential, including:

• Density

• Specific heat capacity

• Viscosity

• Thermal conductivity

For chemical tankers, conservative assumptions are often applied to cover mixed or unknown cargo residues.

4. Cooling Medium Conditions

The cooling side is typically seawater or fresh water. Sizing considers:

• Available cooling water flow rate

• Design inlet temperature (worst-case sea temperature)

• Allowable pressure drop

Marine design margins are applied to ensure performance in tropical conditions.

5. Heat Transfer Surface Area

Based on the heat duty and selected overall heat transfer coefficient, the required:

• Tube diameter and length

• Number of tubes

• Tube layout and pitch

are determined in accordance with TEMA and marine practice.

6. Fouling and Safety Margins

Additional surface area is added to account for:

• Fouling from cargo residues

• Seawater scaling or biofouling

• Performance degradation over time

This ensures stable operation throughout the service interval.

7. Pressure and Mechanical Design

Mechanical sizing includes:

• Design pressure and temperature on both sides

• Shell thickness and tube wall selection

• Allowable pressure drop limits

• Compliance with class society and ASME rules

8. Space and Installation Constraints

Final sizing also considers:

• Available installation space

• Maintenance access for tube bundle removal

• Nozzle orientation and piping layout

Summary

In practice, a cargo drain cooler is custom-designed for each vessel based on thermal duty, fluid properties, cooling water conditions, and marine safety requirements. Conservative design margins are applied to ensure safe discharge temperatures and long-term reliability in demanding shipboard environments.
