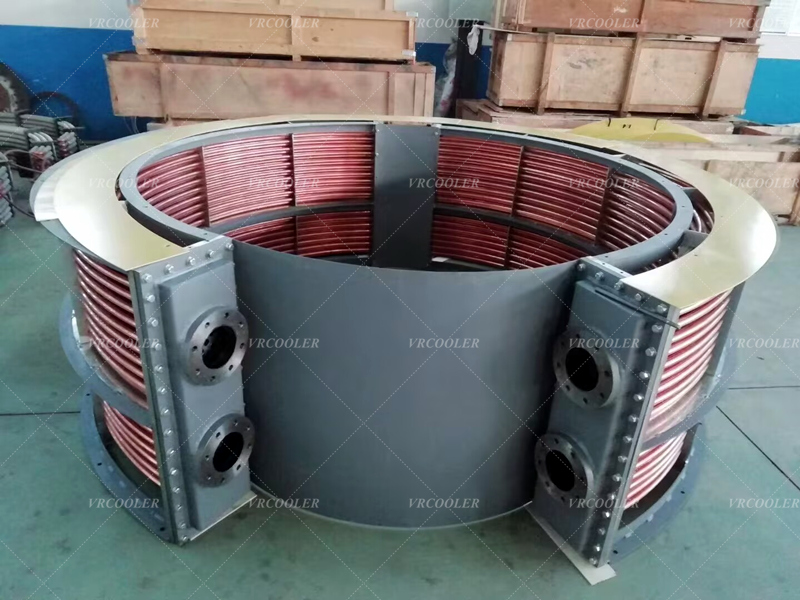

How does a turbine guide bearing oil cooler work?

A turbine guide bearing oil cooler works by transferring heat from hot lubricating oil to a cooler secondary fluid, usually water.

In operation, the guide bearing lubricating oil absorbs heat from the bearing during turbine running. This hot oil is then circulated through the oil cooler. Inside the cooler, the oil flows on one side of the heat transfer surface, while cooling water flows on the other side. The two fluids do not mix, but heat passes through the metal wall between them.

The working process is usually:

1. Hot oil leaves the guide bearing system

2. The oil enters the oil cooler

3. Cooling water flows through the opposite side of the cooler

4. Heat transfers from the oil to the cooling water

5. The oil temperature drops

6. The cooled oil returns to the bearing lubrication circuit

This cooling process is important because it helps:

• Maintain correct oil viscosity

• Protect the bearing from overheating

• Reduce wear on moving parts

• Keep turbine operation stable

• Extend oil and bearing service life

In simple terms, the oil cooler acts like a temperature control device for the turbine bearing lubrication system, ensuring the oil remains within a safe operating range.
