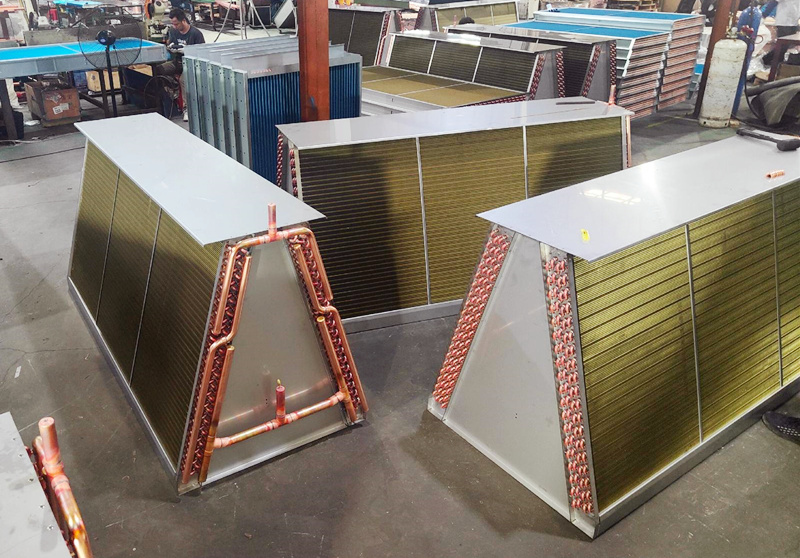

How Does An A Frame Evaporator Coil Work in An HVAC System?

How Does An A Frame Evaporator Coil Work in An HVAC System?

To understand how an A Frame Evaporator Coil works in an HVAC (Heating, Ventilation, and Air Conditioning) system, we need to break down its role in the refrigerant cycle (the core process that cools indoor air) and how its unique "A" shape supports this function. Below is a step-by-step explanation, from refrigerant entry to cooled air distribution.

1. Context: The A Frame Coil’s Role in the HVAC Refrigerant Cycle

First, recall that the HVAC cooling system relies on a closed-loop refrigerant cycle with four key components:

Compressor: Pushes refrigerant (a heat-transfer fluid) through the system.

Condenser Coil: Releases heat from the refrigerant to the outdoors.

Expansion Valve: Reduces the refrigerant’s pressure and temperature (critical for cooling).

Evaporator Coil (A Frame): Absorbs heat from indoor air (the "cooling" step we feel).

The A Frame coil is the indoor heat-absorbing component—its design optimizes this heat exchange.

2. Step 1: Low-Pressure, Cold Refrigerant Enters the Coil

After passing through the expansion valve, the refrigerant is in a low-pressure, cold liquid state (typically around 40–50°F / 4–10°C, depending on the system). This cold refrigerant flows into the A Frame coil’s copper or aluminum tubes, which snake back and forth along the two slanted sides of the "A" shape.

The coil’s tubes are intentionally small and looping to maximize the length of refrigerant path—ensuring every part of the coil is filled with cold refrigerant.

3. Step 2: Indoor Air is Blown Over the Coil

The HVAC system’s blower fan (located in the air handler or furnace) pulls warm, humid indoor air into the system and forces it over the surface of the A Frame coil. This air flows across the coil’s fins (not just the tubes)—a key detail for efficiency.

Fins: The coil is covered in thin, tightly spaced aluminum fins (attached to the tubes). These fins drastically increase the coil’s surface area (often 10–20x more area than the tubes alone). More surface area means more air comes into contact with the cold coil, boosting heat transfer.

"A" Shape Advantage: The slanted sides of the "A" ensure air flows evenly over both sides of the coil (no dead spots). This even airflow prevents wasted space and ensures the entire coil contributes to cooling.

4. Step 3: Heat Transfer (The "Cooling" Magic)

When warm indoor air hits the cold coil (and its fins), two critical things happen:

Heat Absorption: The warm air transfers its heat to the cold refrigerant inside the coil’s tubes. This cools the air down (typically by 15–20°F / 8–11°C) — this is the "cool air" that will be blown back into your home.

Refrigerant Boiling: As the refrigerant absorbs heat, it changes state from a cold liquid to a low-pressure gas (a process called evaporation—hence the name "evaporator coil"). This gaseous refrigerant is now warm (it’s absorbed heat from the air) and ready to be sent back to the compressor to repeat the cycle.

5. Step 4: Moisture Removal (A Bonus of the A Shape)

Indoor air naturally contains moisture (humidity). When warm, humid air hits the cold coil (which is below the dew point of the air), the moisture in the air condenses into liquid water on the coil’s fins.

The "A" shape is critical here: gravity pulls the condensed water down the slanted fins toward the bottom of the "A," where it drips into a condensate pan (a small tray under the coil).

From the pan, the water drains through a condensate line to the outdoors or a plumbing drain—preventing water damage to your home and reducing indoor humidity (making the air feel more comfortable).

6. Step 5: Cooled Air is Distributed Indoors

Once the air is cooled and dehumidified, the blower fan pushes it through the HVAC ductwork and out of vents into your home’s rooms. Meanwhile, the now-warm, gaseous refrigerant exits the A Frame coil and travels to the compressor (located outdoors), where it is compressed into a high-pressure gas. The compressor sends it to the condenser coil to release the absorbed heat outside—and the cycle starts again.
