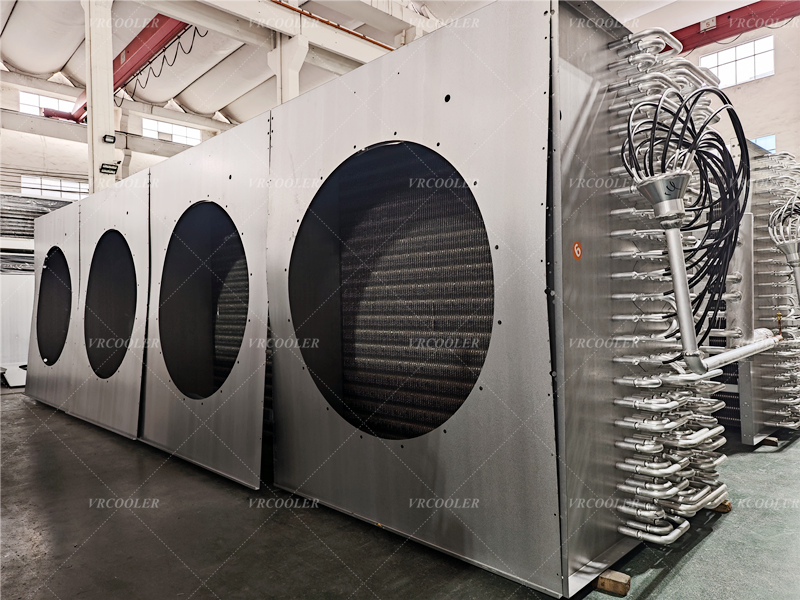

How Does A Iqf Freezer Evaporator Work?

The IQF freezer evaporator is a vital component in the quick freezing process, enabling rapid cooling through efficient heat exchange and airflow management. This technology helps maintain the quality of frozen products, making it widely used in the food processing industry.

Basic Components

Evaporator Coil: Where the refrigerant absorbs heat.

Refrigerant: A fluid that circulates through the system, changing states from liquid to gas.

Fans: Air circulation components that distribute cold air over the food products.

Process Overview

Refrigerant Flow: The refrigerant enters the evaporator coil as a low-pressure liquid. As it flows through the coil, it absorbs heat from the surrounding air and food.

Heat Absorption: The heat absorbed causes the refrigerant to evaporate, changing it from a liquid to a gas. This phase change is crucial for efficient cooling.

Cooling Air: As the refrigerant absorbs heat, the air passing over the evaporator coil gets cooled and is circulated back into the freezer chamber.

Rapid Freezing: The cold air rapidly lowers the temperature of the food, typically to around -18°C (0°F) or lower, which is essential for preserving texture and nutritional value.

Airflow Management

Forced Air Circulation: Fans blow cold air over the food, ensuring uniform temperature distribution and preventing ice build-up.

Continuous Operation: The system is designed to maintain consistent airflow to ensure even freezing across all products.

Control Systems

Temperature Monitoring: Sensors monitor the temperature of the evaporator coil and the freezer environment, adjusting the refrigerant flow and fan speed accordingly.

Automated Controls: These help optimize performance and energy efficiency, responding to changes in load and conditions.

Maintenance Considerations

Regular Cleaning: Keeping the coils clean from ice and debris ensures optimal heat exchange.

Refrigerant Levels: Monitoring and maintaining proper refrigerant levels is critical for efficient operation.
