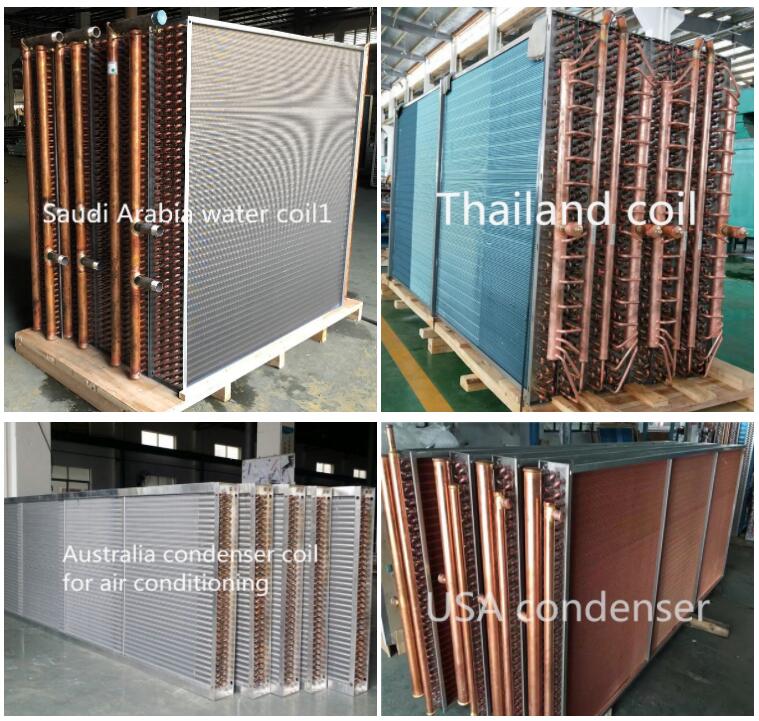

CST hot water coils are suitable for wide variety of HVAC air heating applications. Standard and custom designs are available for new and retrofit installations. CST Coil Pro web-based software is ideally suited for quickly and accurately selecting hot water coils for air handlers and built up systems. This proprietary program allows the user to vary coil circuiting (feeds and passes), fin spacing, and materials of construction to reach the optimum coil selection for any set of operating conditions in ways just not possible with other manufacturers' software. Copper, cupro-nickel, aluminum, titanium, carbob steel and stainless steel tubes and fins are available for hot water coils to match the temperature requirements and level of corrosion resistance needed for your application. Custom replacement coils are a CST specialty. Our applications engineers will assist you inmatching existing coil construction and dimensions to create the perfect products for your replacement coil project.
FEATURES
Tubes and Fins: Copper, cupro-nickel,aluminum, carbon steel, Titanium, and stainless steel
Casings: Aluminum, galvanized steel, andstainless steel
OPTIONAL FEATURES
Polycoat (Polyester) precoated aluminum fins
Baked Phenolic or Electrofin corrosion resistant coating
Bolted and gasketed removable headers
Gastight casings
Clients feedback
All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.
High quality raw materials(Main parts)
Name: Tube
• Material:
stainless steel, copper, aluminum, Cu-Ni, brass, titanium
• Diameter:
5mm, 7 mm, 7.94mm, 9.52mm, 11.5mm, 12mm, 12.7mm, 15mm, 15.8mm 20mm, 25mm
• Smooth, Smooth thick-walled, Grooved, Super grooved (deeper grooves)
• Connection to several circuits available

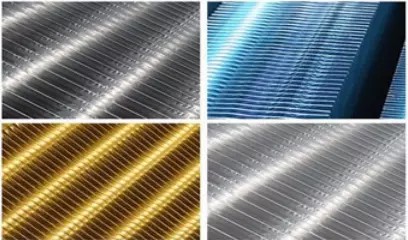

Name: Fin
• Material:
Aluminum, Copper Stainless steel, Titanium
Hot deep carbon steel, golded
•Coating:
E-coating> Al epoxy>hydrophilic
• Thickness:
0.1-2mm
• Type:
wave fin, flat fin , window fin
Name: Frame and casing
• Material:
Galvanized steel, Aluminum, Stainless steel
Copper, Brass
• Thickness:
1-5 mm
• End plates with or without collets
• Various design of side plates

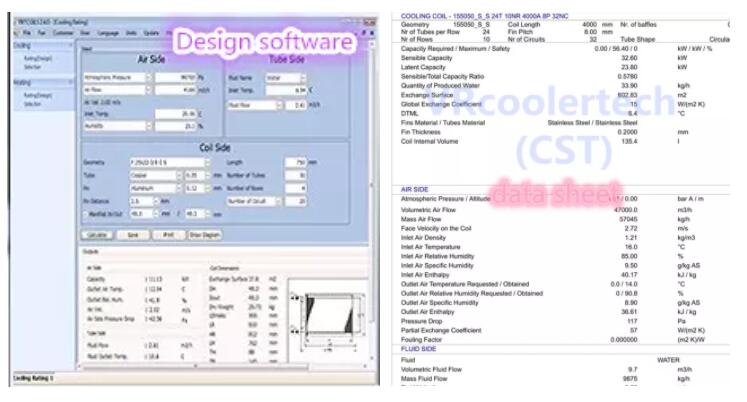

How we design for you?
We promise we use the design software sold by a well-known European HAVC software company.
Through 8 years of cooperation with them, we have designed, processed and exported coils and unit coolers to various countries all around the world.
We will send you the 3D model drawing, data sheet together with the quotation list as you required.

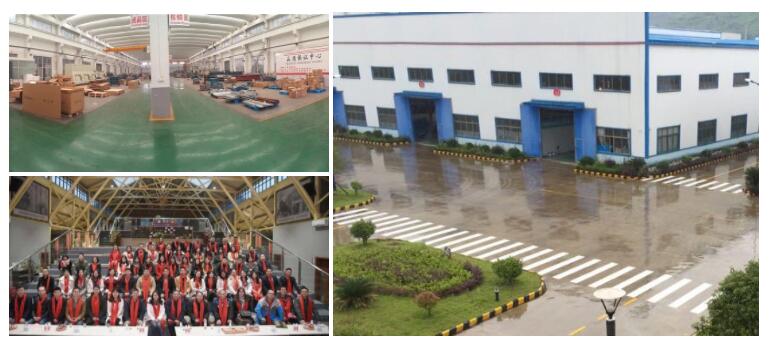

Our Factory
VRCOOLERTECH CST Company
We specialize in designing, manufacturing and exporting refrigeration equipments for the varied industries since 2004.
When it comes to building heat exchanger for any application VRCOOLERTECH CST Company has the capability to meet your requirements. If you need a heat exchanger using water, steam, refrigerant, glycol, ammonia, CO2 or any other medium, CST Company can build it for you. We build heat exchanger for replacement of existing heat exchanger or for new jobs, as well. We make standard copper tube / aluminum fin commercial heat exchanger and we build heavy industrial heat exchanger for process applications. You will be hard-pressed to come up with a job we can't handle.
Our main products:
Commercial heat exchanger
Industrial heat exchanger
Dry cooler
Unit cooler
Charge air cooler
Compressor cooler(intercooler, aftercooler, oil cooler)

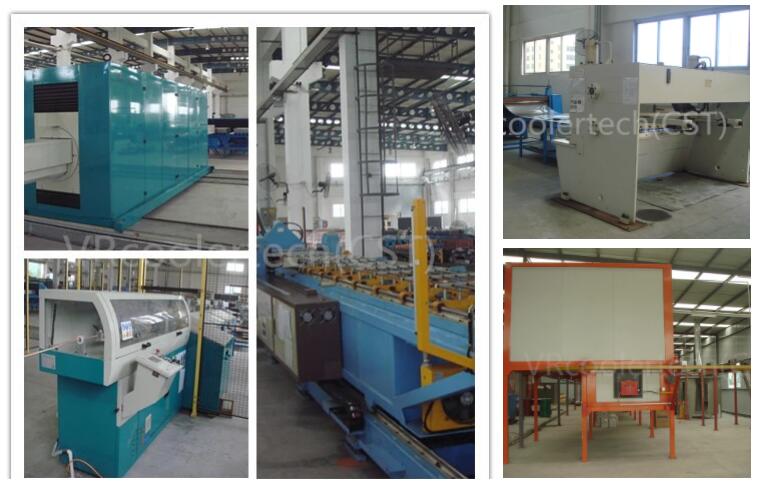

Our Equipments
Packing & Delivery

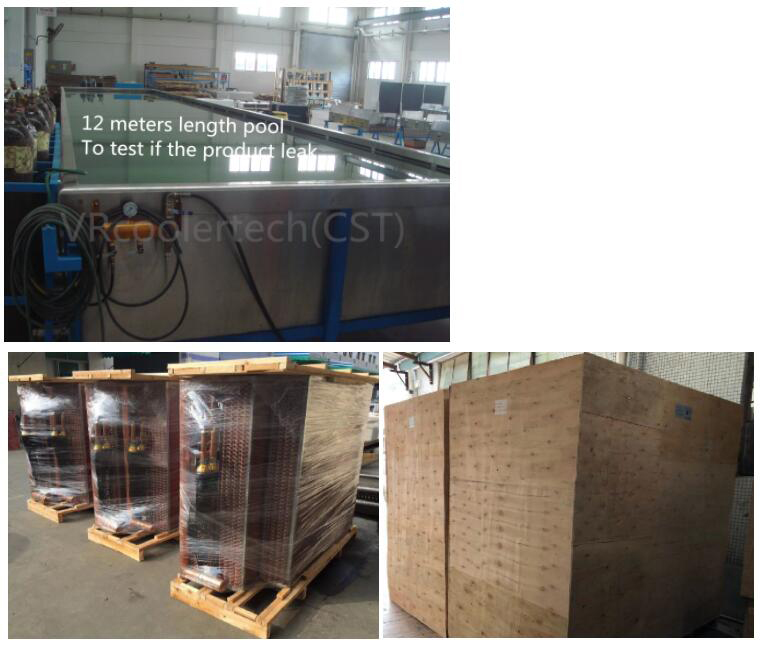

Water pressure test
Before package, we will do the pressure test in the pool to check if the product leak. (Process: Connect the inlet/outlet of the product to the tube s then put nitrogen in it, and put the product in water. If there is no bubbling, there is no leak.)
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.
If container is too tigher,we will use PE film for packing or pack it according to customers special request.
We will delivery on time by sea or bt air according to your requiremnts.
