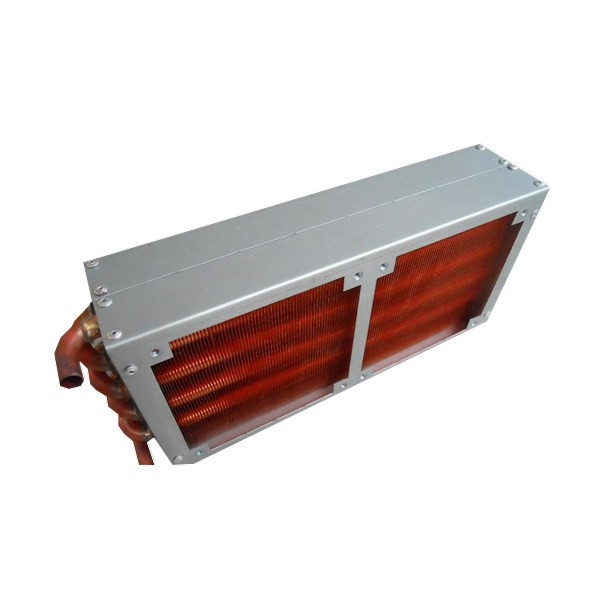

Laser System Heat Exchanger is used for Laser Welding Machine.
Tubes
Stainless steel tube AISI-316 or 304, specially manufactured for the coil's construction with thickness from 0,5mm to 1mm.
Fins
Corrugated fins with auto-separation collar, covering all the tube surface maximising the global inter change and adjusting
the fin's spacing (from 1,8 mm to 12 mm). These can be manufactured in aluminium, pre-coated aluminium, copper or stainless steel.
All these materials can be coated by the Bronz-Glow treatment for corrosive ambient.
Casing
This is built from galvanized steel, aluminium or stainless steel. The structure is totally riveted between the frames,
top and bottom sides, this gives a rigid and compact coil.
The perforations for the accommodation tubes are with protection collars for avoiding fractures.
Headers
The headers are manufactured totally in stainless steel. For direct expansion coils, the distributors and capillary are also in stainless steel.
