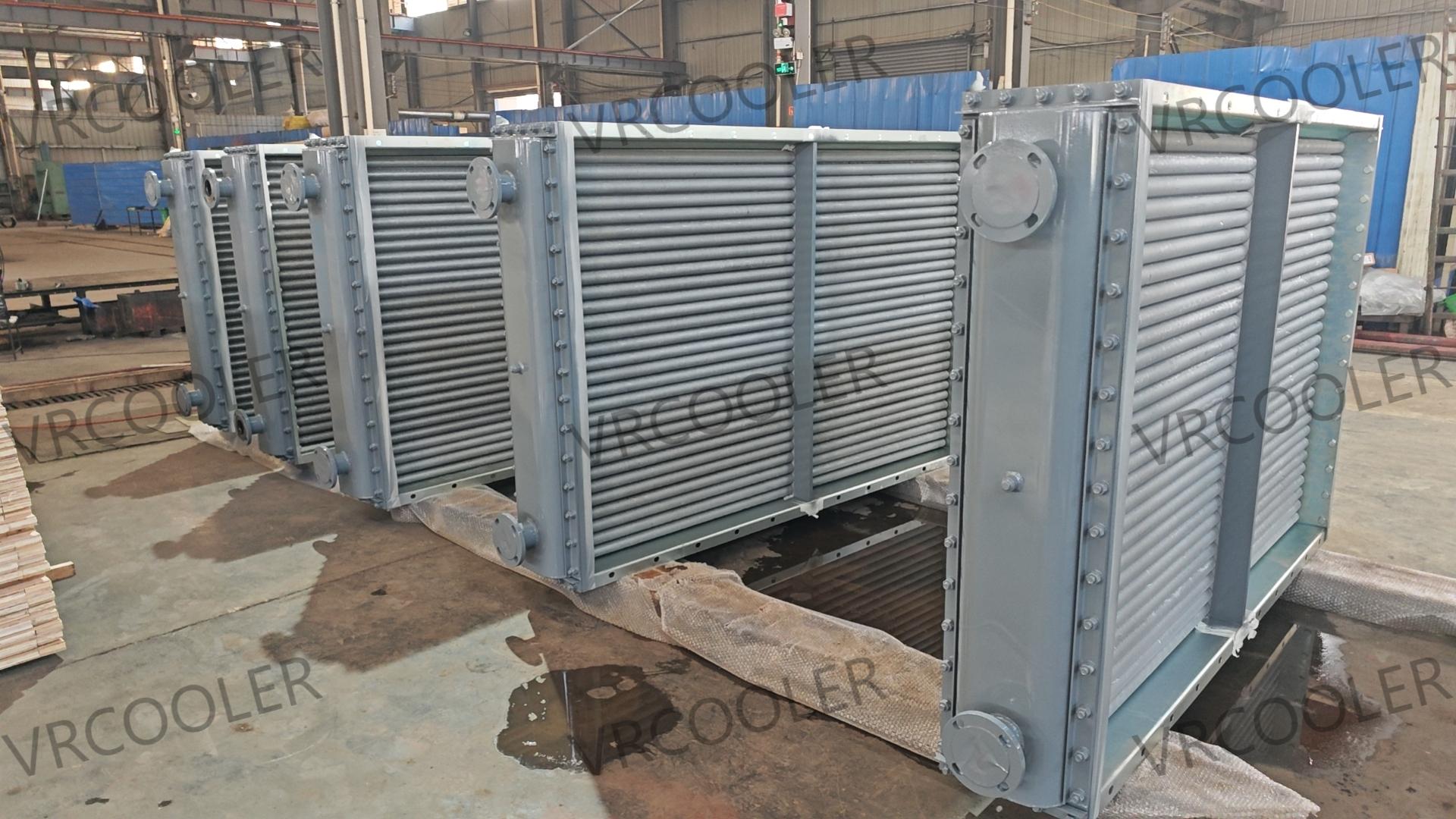

High-Temperature Air-to-Water Heat Exchanger for Cooling 800 °C Process Air

Many industrial processes—such as thermal treatment, combustion exhaust handling, material testing, and energy recovery systems—generate extremely high-temperature air streams that must be cooled rapidly and safely before downstream use or discharge. Cooling air from ~800 °C down to near-ambient temperature requires a purpose-engineered high-temperature air-to-water heat exchanger capable of handling severe thermal loads while maintaining low pressure drop and operational stability.

Application Overview

The system is intended for non-pressurized, high-temperature air cooling, where thermal efficiency, material durability, and low air-side pressure drop are critical.

Typical Applications

• Furnace exhaust air cooling

• High-temperature process air recovery

• Combustion test rigs and pilot plants

• Thermal oxidation systems

• Industrial R&D and material testing facilities

Air-Side Operating Conditions

The air stream presents a high-temperature, low-mass-flow thermal challenge requiring precise heat exchanger design.

Air-side specifications:

• Inlet temperature: ~800 °C

• Outlet temperature: 40–50 °C (slightly above ambient)

• Mass flow rate: ~40 g/s

• Volumetric flow: ≈ 70 SCFM

• Operating pressure: Slightly above ambient (non-pressurized)

• Allowable pressure drop: As low as possible

To meet these conditions, the heat exchanger must provide high heat transfer efficiency while minimizing flow resistance and avoiding localized overheating.

Water-Side Cooling Requirements

The water circuit serves as a stable and controllable heat sink, designed to absorb the recovered thermal energy safely.

Water-side design targets:

• Heat removal capacity: 35–40 kW

• Water inlet temperature: 35–40 °C

• Water outlet temperature: ≤ 80 °C

• Operating condition: Liquid phase only (no boiling, no steam generation)

This configuration ensures:

• Long-term system reliability

• No phase-change stress on tubes

• Simple integration with standard industrial cooling loops

Heat Exchanger Design Concept

1. High-Temperature Resistant Construction

Cooling air at 800 °C requires materials with:

• Excellent high-temperature strength

• Oxidation and thermal fatigue resistance

Typical construction includes:

• Stainless steel or high-temperature alloys on the air side

• Heavy-wall tubes to manage thermal gradients

• Fully welded design to prevent leakage under thermal cycling

2. Air-to-Water Heat Transfer Configuration

The system uses a tubular or finned-tube heat exchanger optimized for gas-to-liquid heat transfer:

• Hot air flows across or through heat exchanger tubes

• Cooling water circulates inside the tubes

• Heat is transferred efficiently without direct contact

This indirect exchange ensures:

• No contamination between air and water

• Stable temperature control

• Safe operation under fluctuating loads

3. Low Air-Side Pressure Drop Design

Given the low operating pressure and modest airflow (~70 SCFM), the heat exchanger is engineered with:

• Optimized tube spacing

• Smooth flow paths

• Minimal flow obstruction

This helps maintain system performance without requiring additional fans or blowers.

Thermal Performance

Under the specified operating conditions, the heat exchanger can achieve:

The result is high heat recovery efficiency with stable and predictable operation.

Safety and Reliability Considerations

• No steam generation: Water temperature remains below boiling

• Thermal stress management: Designed for repeated heat-up and cool-down cycles

• Corrosion control: Suitable material selection for hot oxidizing air

• Maintenance-friendly: Accessible tube bundles and simple cleaning

These features make the system suitable for continuous or intermittent high-temperature operation.

Customization and Integration

Each high-temperature air cooler can be customized for:

• Specific footprint and orientation

• Horizontal or vertical airflow

• Connection sizes and mounting interfaces

• Integration with existing cooling water systems

This flexibility allows seamless installation in both new systems and retrofit projects.

Conclusion

Cooling 800 °C air to near-ambient temperature is a demanding thermal task that requires a purpose-built, high-temperature air-to-water heat exchanger. By combining robust materials, optimized heat transfer design, and low air-side pressure drop, this solution safely removes 35–40 kW of heat while keeping the water circuit below boiling conditions.

Such heat exchangers play a vital role in thermal management, energy recovery, and system protection across a wide range of high-temperature industrial applications.
