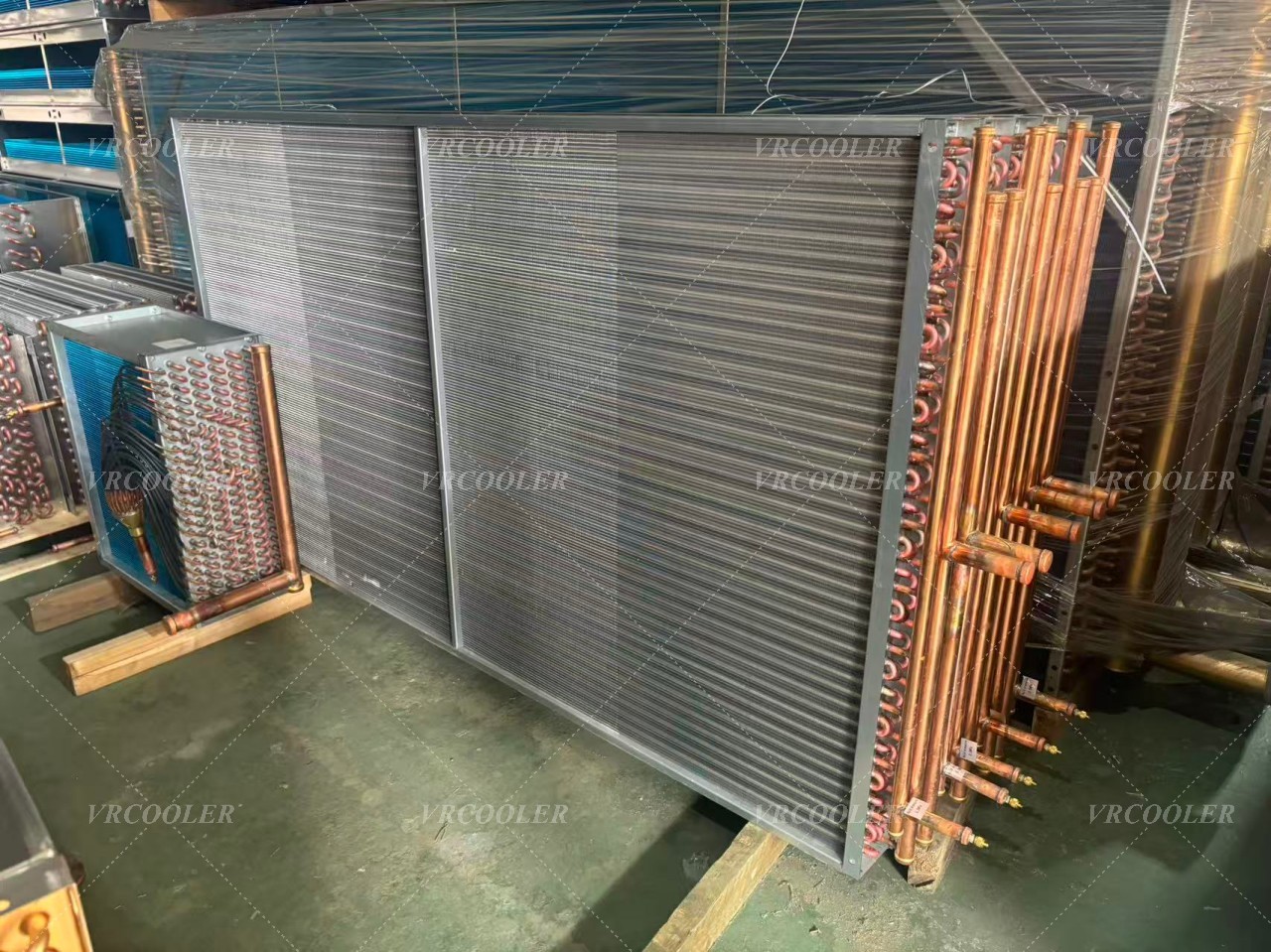

What factors affect condenser coil performance for chiller?

Condenser coil performance in a chiller is influenced by a combination of thermal, mechanical, environmental, and operational factors. The most important factors are outlined below.

1. Ambient Air or Water Temperature

• Higher ambient temperature increases condensing pressure.

• Elevated condensing temperature reduces chiller COP and increases compressor power.

• Proper coil sizing is critical for high-ambient applications.

2. Heat Transfer Surface Area

• Larger coil surface area improves heat rejection.

• Insufficient surface area leads to high head pressure and capacity loss.

• Fin density and tube length directly affect available heat transfer area.

3. Airflow or Water Flow Rate

• In air-cooled chillers, insufficient airflow reduces heat removal.

• In water-cooled systems, low water flow causes poor heat transfer.

• Uniform flow distribution across the coil is essential.

4. Coil Cleanliness

• Dirt, dust, grease, or biological fouling act as thermal insulation.

• Fouled coils increase condensing temperature and energy consumption.

• Regular cleaning maintains design performance.

5. Coil Material and Design

• Copper tubes offer high thermal conductivity.

• Aluminum or copper fins enhance heat transfer.

• Tube diameter, wall thickness, and internal enhancements influence efficiency.

6. Refrigerant Type

• Different refrigerants have different heat transfer characteristics.

• High-pressure refrigerants (e.g. R410A) require optimized circuiting.

• Low-GWP refrigerants may need larger or more efficient coils.

7. Circuiting Design

• Proper refrigerant distribution prevents maldistribution.

• Balanced circuiting ensures uniform heat transfer and stable pressures.

• Incorrect circuiting leads to hot spots and reduced capacity.

8. Air-Side Pressure Drop

• Excessive pressure drop reduces fan efficiency.

• Low pressure drop improves airflow and lowers fan energy consumption.

• Fin pitch and coil depth must be optimized.

9. Corrosion and Environmental Exposure

• Corrosion reduces fin effectiveness and tube integrity.

• Coastal, industrial, or polluted environments accelerate degradation.

• Protective coatings or corrosion-resistant materials extend service life.

10. Condenser Fan Performance (Air-Cooled Chillers)

• Fan speed, blade design, and motor efficiency affect airflow.

• Variable-speed fans improve part-load efficiency.

• Fan failure or imbalance reduces overall heat rejection.

11. Operating Load and Control Strategy

• Part-load operation affects condensing pressure behavior.

• Proper head pressure control maintains stable system performance.

• Advanced controls optimize condenser performance across load ranges.

12. Installation and Layout

• Inadequate clearance or recirculation of hot discharge air reduces effectiveness.

• Proper spacing ensures fresh air intake and heat dissipation.

• Orientation affects airflow uniformity.

Summary

Optimal condenser coil performance depends on:

• Correct sizing and design

• Clean heat transfer surfaces

• Proper airflow or water flow

• Suitable materials and corrosion protection

• Matching the coil to refrigerant and operating conditions

Attention to these factors ensures high chiller efficiency, stable operation, and long service life.
