A heat pump is very similar to a residential air conditioner. It uses the same equipment ( compressor, fan, heat exchanger, etc ) and the same refrigeration cycle.

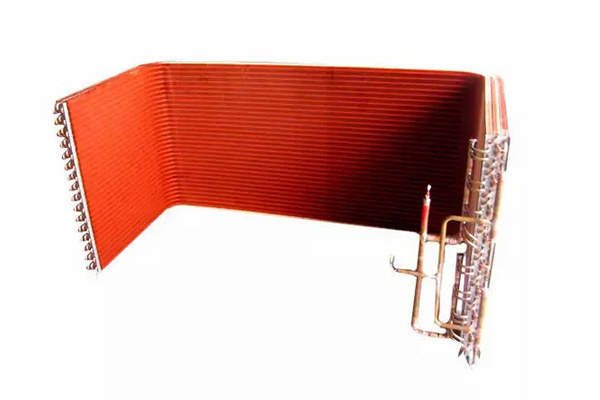

The evaporator is inserted into an air stream upon which air passes through aseries of fins and tubes.
Constructed of aluminum fins bonded to internally grooved copper tubing.
Coils are tested at the factory with an extensive refrigerant leak check.
Coils have sweat refrigerant connections.
Ideally suited for new installations or add on air conditioning.
Unique drain pan design maximizes application flexibility and condensate removal.
TECHNICAL SPECIFICATION
NAME L shape O shape U Shape Different Types HVAC Coil
TUBES Copper
7 mm, 5/16“, 3/8“, 12 mm, 1/2“, 5/8“, 20mm, 25mm
FINS Aluminum, Copper, Stainless steel
CASING MATERIAL Thick. 1 – 3 mm
Galvanized steel, Aluminium, Stainless steel, Copper,Brass
Main parts
Name: Fins
•Aluminum
•Copper
•Stainless steel
•Hot deep carbon steel
•Titanium
Hdrophilic, Epoxy coated, bare, e-coating

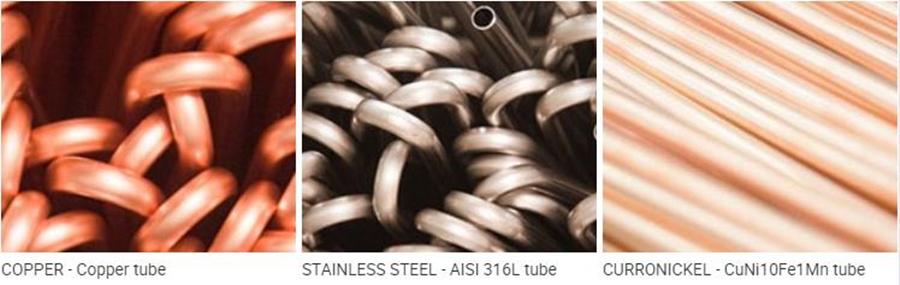

Name: Tubes
•Copper
•Stainless steel
•Aluminium
•Hot dipping carbon steel
•Titanium

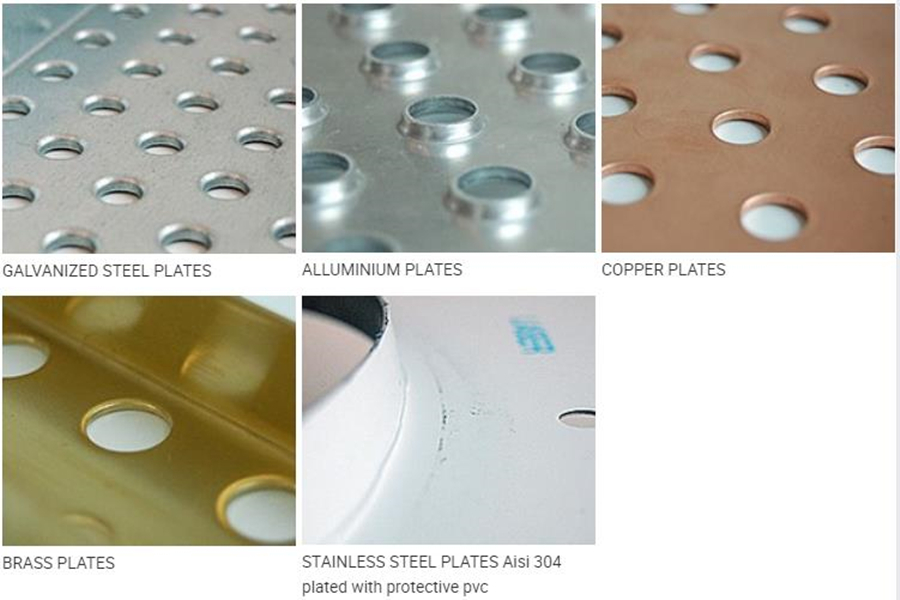

Name: Plate and casing
•Thick. 1 – 3 mm
•Galvanized steel
•Aluminium
•Stainless steel
•Copper
•Brass
Production process
Product Display
Packing & Delivery
