Heat Exchangers for A Heat Pump Dryer / Air Dehumidification System

Heat pump dryers and closed‑loop air dehumidification units rely on two critical heat exchange roles: the evaporator cools moist air below dew‑point to condense and remove water vapor; the condenser re‑heats dried air for circulation back to the drying chamber or controlled space. Continuous condensation brings unique engineering challenges: reliable condensate drainage, anti‑corrosion performance under persistent humid conditions, stable latent‑sensible heat transfer balance, and compatibility with multiple refrigerants. Poorly designed coils lead to water retention, fin corrosion, airflow blockage, dropping COP and shortened unit lifespan.

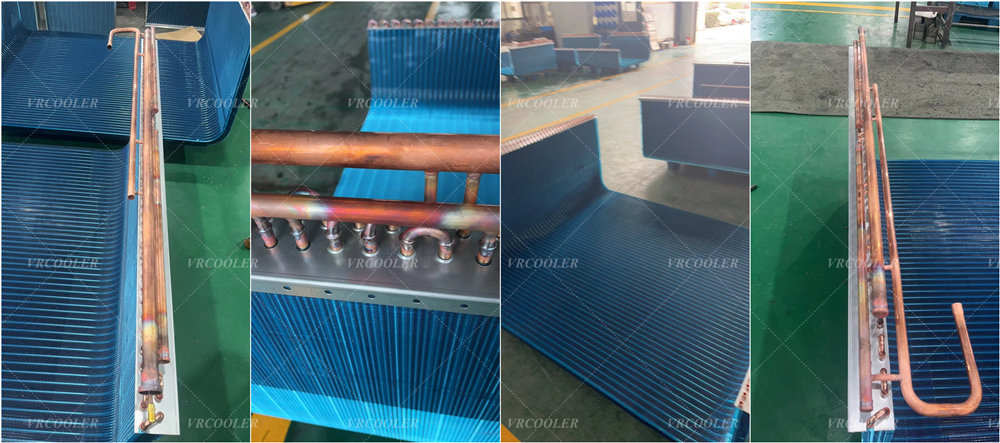

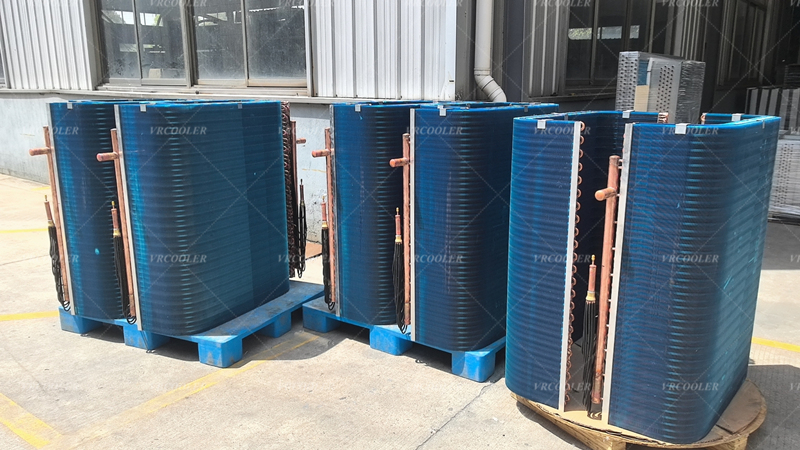

CST’s custom‑built tube‑fin heat exchangers address those pain points with targeted design adjustments.

Optimized fin spacing and louver fin geometry to accelerate condensate shedding, avoid trapped moisture and reduce frost‑related risks during variable‑mode dehumidification cycles.

Multiple material options: copper tube‑aluminum fin, full stainless steel, plus epoxy‑coated fin treatment for corrosive, high‑humidity industrial working conditions.

Flexible row count, tube diameter, fin density and circuit layout, engineered according to customers’ thermal load, air volume and dimensional envelope requirements. OEM replication from drawings or physical samples is supported for existing equipment upgrade projects.

Strict pressure‑resistance and leak testing, fully adapted for closed‑loop heat pump dryers, industrial dehumidifiers, agricultural drying, wood drying, food processing and pool‑space air dehumidification systems.

“Many heat‑pump‑dryer manufacturers face coil performance bottlenecks when scaling industrial‑grade units,” said our engineering lead. “Standard off‑the‑shelf coils cannot match the latent‑heat‑dominated working condition of dehumidification loops. Our team simulates real‑world humid‑air operating parameters before production, to make sure each custom coil reaches target dehumidification efficiency while simplifying on‑site maintenance.”

Manufacturers of heat pump dryers and air dehumidification systems can submit technical specifications, drawings or sample references via info@cstheatexchanger.com for quotation and technical review. CST provides full‑cycle support from thermal proposal, prototype manufacturing to volume production for global HVAC‑R and industrial drying partners.
