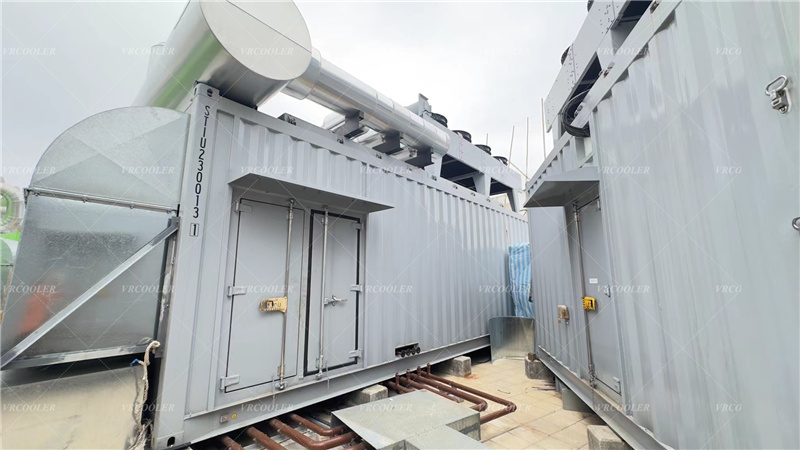

HT LT Remote Radiator for Gas Engine in Power Plant

HT LT Remote Radiator for Gas Engine in Power Plant

In a power plant, the HT (High Temperature) LT (Low Temperature) remote radiator for a gas engine is an important component with specific functions and characteristics.

The primary function of the HT LT remote radiator is to dissipate the heat generated by the gas engine during its operation. By effectively removing this heat, it helps to maintain the engine's operating temperature within the optimal range, ensuring its efficient and reliable performance.

The HT radiator is mainly responsible for handling the higher temperature coolant coming from the engine's hot side, typically after it has passed through the engine block and cylinder head, where the majority of the heat is generated during combustion.

The LT radiator, on the other hand, deals with the lower temperature coolant from other parts of the engine cooling system, such as the oil cooler or the charge air cooler. This two-stage cooling approach allows for more precise temperature control and better overall cooling efficiency.

Construction and Design

Core Structure: The radiator core is usually made up of a series of tubes and fins. The tubes carry the coolant, while the fins increase the surface area available for heat transfer to the surrounding air. This design maximizes the heat dissipation rate, enabling efficient cooling even under high load conditions.

Materials: High-quality materials are used to withstand the high temperatures and pressures associated with the gas engine cooling system. Copper or aluminum alloys are commonly employed for the tubes and fins due to their excellent thermal conductivity properties. The radiator housing is typically made of steel or aluminum to provide structural integrity and protection.

Mounting and Placement: The remote radiator is strategically located away from the engine to minimize the impact of engine heat on the cooling air. It is often mounted in an area with good air circulation, such as on the side or top of the power plant building. This remote placement also helps to reduce noise levels associated with the cooling fans and air flow.

Cooling Circuit and Flow

The cooling circuit of the gas engine is designed to circulate the coolant between the engine and the HT LT remote radiator. The coolant absorbs heat from the engine components and is then pumped to the radiator, where it releases the heat to the air.

In the HT circuit, the hot coolant from the engine enters the top of the HT radiator and flows down through the tubes. As it does so, the heat is transferred to the fins and then to the surrounding air, which is forced through the radiator by fans or natural convection. The cooled coolant then exits the bottom of the HT radiator and returns to the engine.

Similarly, in the LT circuit, the cooler coolant from the other engine components enters the LT radiator, undergoes heat transfer, and is then recirculated back to the engine to complete the cooling cycle.

Advantages

Enhanced Cooling Efficiency: The combination of HT and LT radiators allows for more effective heat dissipation, especially in gas engines that produce high levels of heat. This helps to prevent overheating and ensures consistent engine performance, even during peak load operations.

Improved Engine Longevity: By maintaining the engine at the correct operating temperature, the remote radiator helps to reduce thermal stress on engine components. This, in turn, extends the life of the engine, reducing maintenance costs and downtime.

Flexible Placement: The remote design of the radiator provides greater flexibility in locating it within the power plant. This allows for better optimization of the overall layout, taking into account factors such as air flow, space availability, and noise reduction.

Reduced Noise and Vibration: Since the radiator is located away from the engine, the noise and vibration associated with the cooling fans and air flow are isolated from the engine compartment. This results in a quieter operating environment, which is beneficial for both the operators and the surrounding area.
