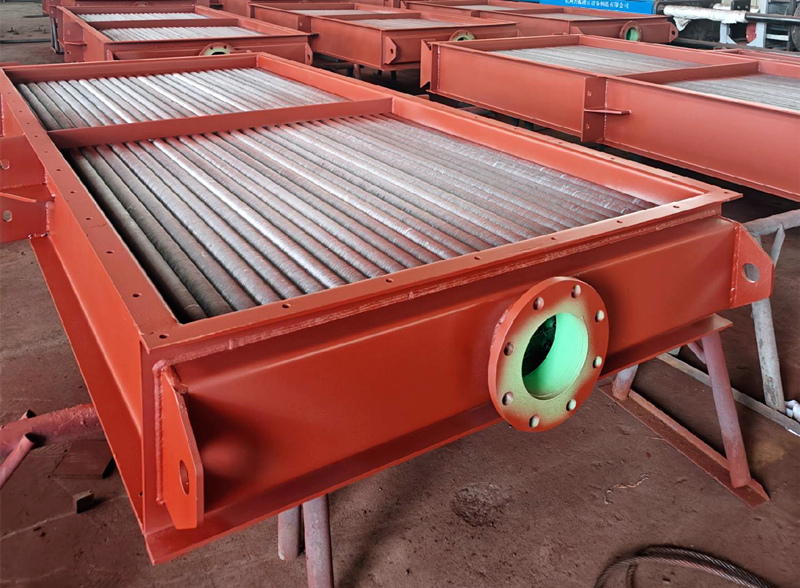

Generator H2 Coolers for Power Plant

Generator H2 Coolers for Power Plant

Generator hydrogen (H₂) coolers are critical heat exchangers in large power plant turbo-generators (typically 60–1800 MW), removing heat from the hydrogen coolant that cools the rotor, stator core, and windings. They enable high power density, efficiency, and reliability in thermal, combined-cycle, and nuclear plants.

Why Hydrogen Cooling?

Hydrogen is preferred over air for its unmatched properties:

High thermal conductivity: 7–10× better cooling than air (0.168 W/m·K)

Low density: Reduces windage losses (≈50% lower than air)

High specific heat: Efficient heat absorption and transport

Safety: Leaks are detectable; inert when pure (>90% purity)

Basic Working Principle

Most large generators use water-hydrogen-hydrogen (water-cooled stator windings, hydrogen-cooled rotor/core) cooling:

Heat generation: Losses (I²R, windage) heat rotor/stator components.

Hydrogen circulation: Shaft-mounted fans force H₂ through hot parts, absorbing heat.

Cooling in H₂ coolers: Hot H₂ flows over finned tubes; cooling water (30–40°C) inside tubes absorbs heat.

Recirculation: Cooled H₂ returns to the generator, repeating the cycle.

Applications

Thermal power plants: Coal/gas-fired (100–1000 MW).

Combined-cycle plants: High-efficiency (500–1800 MW).

Nuclear power plants: Large turbo-generators (800–1500 MW).

Advantages

Higher efficiency: Lower windage losses; allows higher generator output (up to 1800 MW).

Compact size: Smaller footprint than air-cooled generators.

Longer life: Lower operating temperatures extend insulation life.
