The design of a generator cooler using a two-pipe heat exchanger (pipe-in-pipe) configuration offers several unique features and advantages, particularly in terms of safety, efficiency, and maintenance.
Design Features of the Two-Pipe Heat Exchanger
Pipe-in-Pipe Configuration:
Inner and Outer Tubes: The refrigerant flows through the inner pipe while the cooling medium (usually air or water) flows around it in the annular space between the outer and inner pipes. This design enhances heat transfer efficiency.
Leak Prevention:
Isolation of Refrigerant: The two-pipe design prevents refrigerant from coming into contact with the generator winding, significantly reducing the risk of refrigerant leakage affecting the electrical components.

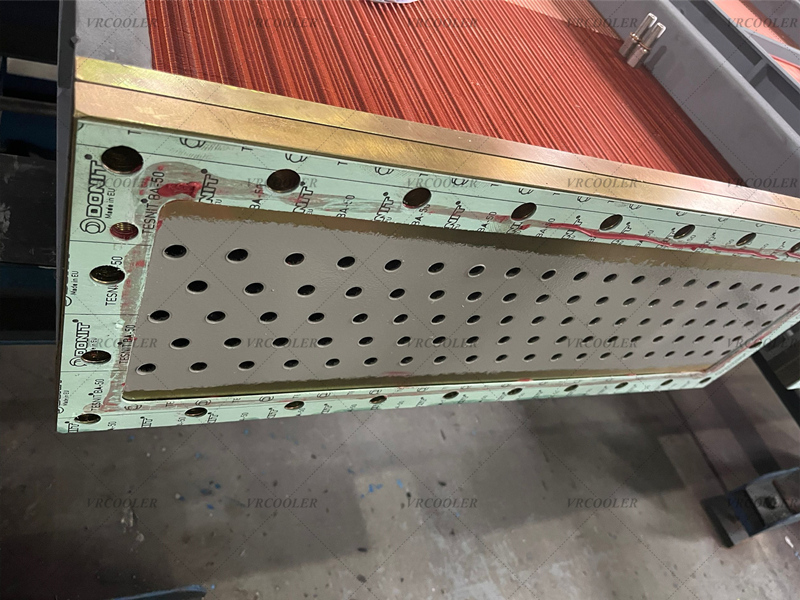

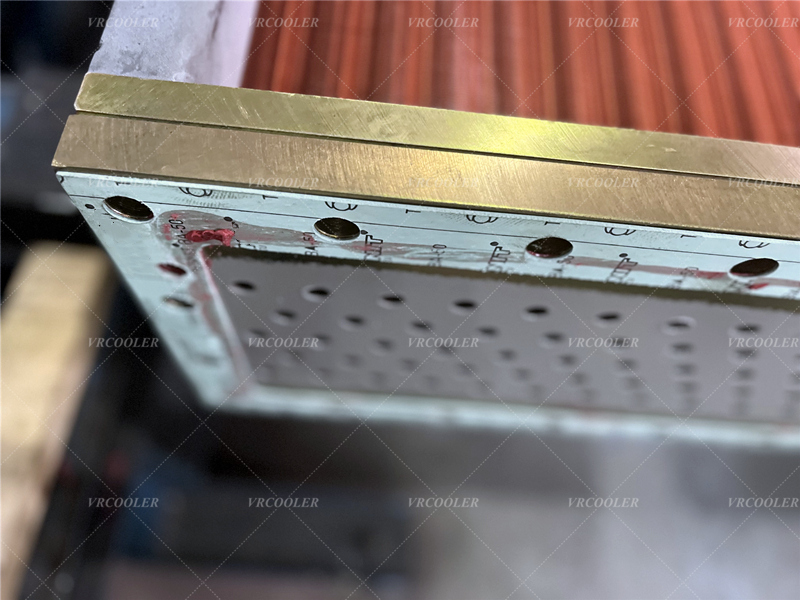

Cavity for Leakage Detection: Each tube sheet is constructed with two plates that create a cavity. This cavity acts as a containment area for refrigerant, allowing for effective monitoring and management of potential leaks.
Installation of Leakage Sensors:
Sensor Integration: The design accommodates the installation of leakage sensors on the tube sheets. This feature enhances safety by enabling early detection of leaks, facilitating timely maintenance and repairs.
Material Considerations:
Corrosion Resistance: The materials used for the pipes and tube sheets must be resistant to corrosion, especially when exposed to refrigerants and cooling fluids. Common materials include stainless steel or specially coated metals.
Thermal Efficiency:
Effective Heat Exchange: The arrangement allows for efficient heat transfer due to the close proximity of the refrigerant and cooling medium, maximizing the thermal exchange surface area.
Advantages of the Two-Pipe Heat Exchanger Design
Enhanced Safety:
By preventing refrigerant contact with sensitive generator components, the risk of damage and safety hazards is minimized.
Improved Maintenance:
The ability to install leakage sensors allows for proactive maintenance, reducing downtime and potential costly damages from leaks.
Higher Reliability:
The robust design ensures that the cooling system operates effectively under various conditions, contributing to the overall reliability of the generator.
Compact Design:
The two-pipe configuration often results in a more compact unit, saving space within the generator setup.
Flexibility in Cooling Medium:
The design can accommodate various cooling mediums, allowing for adaptability based on operational requirements.
