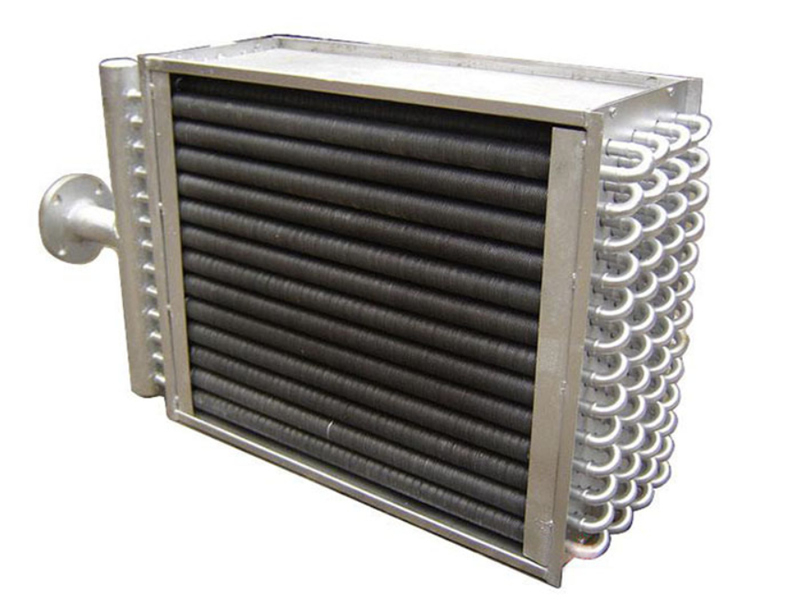

GLII type Finned tube heat exchanger is a high-efficiency air heat exchanger made of steel and aluminum composite, made of elbow type. The steel and aluminum composite is made by penetrating and pressing the aluminum fins, which are in close contact with the steel pipe, so its heat transfer coefficient is the highest, and in the case of the same heat production, its heat sink tube is light in weight, small in size, and consumes less metal.

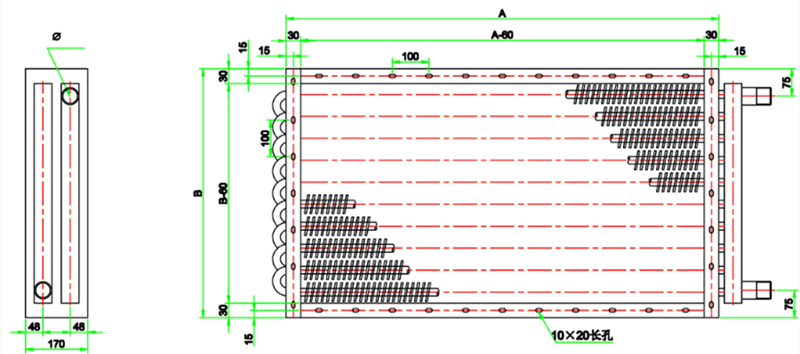

The finned tubes of GLII type finned tube radiator row tube have the following specifications: 18X2.0-38mm, 21X2.0-41/45/51mm, 25X2.0-45/50/55mm, which are made by mechanical pressing through the aluminum tube over the steel tube. The distance between the pieces is 3.0mm, which can be divided into two rows, four rows, six rows, eight rows, etc. The working pressure of heat exchange medium is below 1.5MPa, and the working temperature is below 300 degrees.
GLII type Finned tube heat exchanger is a high-efficiency air heat exchanger made of steel and aluminum composite, made of elbow type. The steel and aluminum composite is made by penetrating and pressing the aluminum fins, which are in close contact with the steel pipe, so its heat transfer coefficient is the highest, and in the case of the same heat production, its heat sink tube is light in weight, small in size, and consumes less metal.
The finned tubes of GLII type finned tube radiator row tube have the following specifications: 18X2.0-38mm, 21X2.0-41/45/51mm, 25X2.0-45/50/55mm, which are made by mechanical pressing through the aluminum tube over the steel tube. The distance between the pieces is 3.0mm, which can be divided into two rows, four rows, six rows, eight rows, etc. The working pressure of heat exchange medium is below 1.5MPa, and the working temperature is below 300 degrees.
