As photovoltaic (PV) power plants scale up in capacity and inverter power density increases, effective thermal management of inverter transformers becomes essential. Forced-air oil coolers are a proven and widely adopted solution for controlling transformer oil temperature, ensuring stable electrical performance, long service life, and high system availability in solar power installations.
PV inverter transformers operate under highly variable load profiles driven by solar irradiance, ambient temperature, and grid conditions. Excessive oil temperature can lead to:
Accelerated insulation aging
Reduced transformer efficiency
Higher electrical losses
Increased risk of unplanned outages
Maintaining oil temperature within design limits is therefore critical for both performance and asset protection.

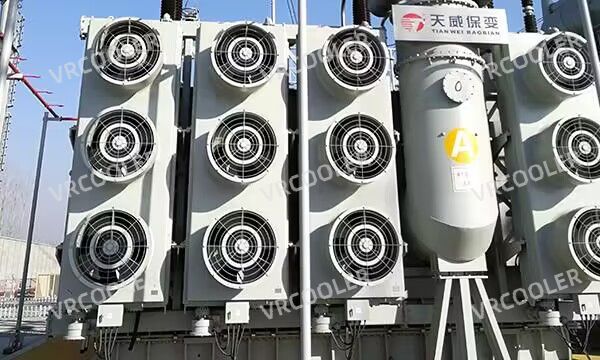

A forced-air oil cooler is a liquid-to-air heat exchanger in which hot transformer oil circulates through finned tubes or plates, while fans force ambient air across the heat transfer surface. Heat is removed from the oil and dissipated to the surrounding air.
Typical cooling modes include:
OFAF (Oil Forced Air Forced)
ONAF (Oil Natural Air Forced) (when oil circulation is partly natural)
For PV inverter transformers, OFAF systems are most common due to compact design and high cooling capacity.
Aluminum or steel finned tubes for maximum heat transfer
Optimized fin spacing for outdoor, dusty PV plant environments
Compact footprint suitable for skid-mounted inverter stations
High-reliability axial fans with IP55 or higher protection
Variable-speed fan control based on oil temperature
Redundant fan configuration for enhanced reliability
Low oil-side pressure drop to reduce pump energy consumption
Designed for mineral oil or ester-based transformer oils
Smooth internal flow paths to prevent fouling and hotspots
Corrosion-resistant coatings for harsh climates
UV-resistant components
Designed for wide ambient temperature ranges
| Benefit | Impact on PV System |
|---|---|
| Stable oil temperature | Consistent transformer performance |
| Improved insulation life | Extended transformer service life |
| High cooling capacity | Supports high inverter power density |
| Modular design | Easy integration and scalability |
| Low maintenance | Reduced O&M costs |
Cooling mode: OFAF / ONAF
Heat rejection capacity: Customized per transformer rating
Oil types: Mineral oil, natural ester, synthetic ester
Ambient design temperature: Up to 45–55°C (customizable)
Power supply: 400/480 VAC, 50/60 Hz
Control: Thermostatic or PLC-based fan control
Forced-air oil coolers for PV inverter transformers can be:
Mounted directly on the transformer tank
Installed as remote coolers with oil piping
Supplied as skid-mounted cooling packages
They are easily integrated with inverter station control systems for automatic operation and alarm monitoring.
Compared with natural air cooling, forced-air oil coolers:
Provide higher and more controllable cooling capacity
Allow compact transformer design
Improve performance under high ambient temperatures
This makes them particularly suitable for utility-scale PV plants and desert or tropical installations.
Forced-air oil coolers are a reliable and efficient thermal management solution for PV inverter transformers. By maintaining optimal oil temperature under fluctuating solar loads and harsh outdoor conditions, they enhance transformer reliability, efficiency, and lifespan—supporting the long-term performance of modern photovoltaic power systems.
